• Capacity：80-150kg,H
• Labour：2-3
• Raw Material：SUS304
• Motor：Siemens or Chinese Famous Brand
• Depositing Speed：40-55n,Min
• Total Length：30m
• Warranty：One Year for Free
• After Sale Service：Engineers Available to Service Machinery Overseas
• Working Type：Continuous
• Candy Shapes：Various
• Transport Package：Wooden Case by Sea
• Specification：KH-150
• Trademark：Kuihong
• Origin：China
• HS Code：8438200000
• Production Capacity：100 Sets,Year

Basic Info.

Capacity 80-150kg/H Labour 2-3 Raw Material SUS304 Motor Siemens or Chinese Famous Brand Depositing Speed 40-55n/Min Total Length 30m Warranty One Year for Free After Sale Service Engineers Available to Service Machinery Overseas Working Type Continuous Candy Shapes Various Transport Package Wooden Case by Sea Specification KH-150 Trademark Kuihong Origin China HS Code 8438200000 Production Capacity 100 Sets/Year

Product Description

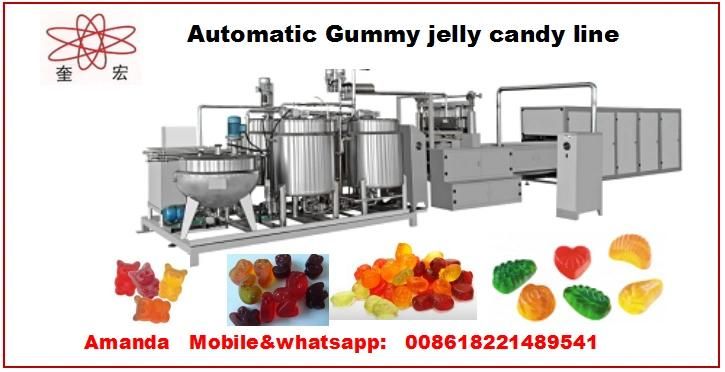

1.KH-150-450 jelly gummy making machine description

The automatic PLC controlled candy vacuum micro-film cooking continuous depositing and forming production line is currentity the most advanced hard candy production equipment in china.it can produce single-color,double-taste double-color flower candies,crystal candies,filled candies,stripe candies,scotch,etc.
A.The sanitary structure designed and manufactured meets GMP requirements
B.PLC programmable process control available for candy vacuum cooking temperature and time ,depositing temperature and depositing speed.
C.LED touch screen displays process flow and realizes easy operation.
D.Rationed filling and mixing of essence,pigment and acid solution can be completed on the line.
E.The conveying chain,cooling system and double se-molding device guarantee the de-molding of candy.
F.Different shaped candies can be made via change-over of the molds
G. Optional choice of extra chocolate paste injection system for making chocolate-central filled candies


2.KH-150-450 jelly gummy making machine main parameters

Model	KH-150	KH-300	KH-450	KH-600
Capacity	150kg/h	300kg/h	450kg/h	600kg/h
Weight each candy	MAX.6g	MAX.6g	MAX.6g	MAX.6g
Depositing speed	40-55n/min	40-55n/min	40-55n/min	40-55n/min
Steam consumption	250kg/h	300kg/h	400kg/h	450kg/h
Steam pressure	0.2-0.4mpa	0.2-0.4mpa	0.2-0.4mpa	0.2-0.4mpa
Indoor temperature	20-25 C0	20-25 C0	20-25 C0	20-25 C0
Humidity	55%	55%	55%	55%
Compressed air consumption	0.2m3/min	0.2m3/min	0.2m3/min	0.2m3/min
Compressed air pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa
Total electric power	12kw/380v	12kw/380v	12kw/380v	12kw/380v
Total length	12.5m	14m	15m	18m

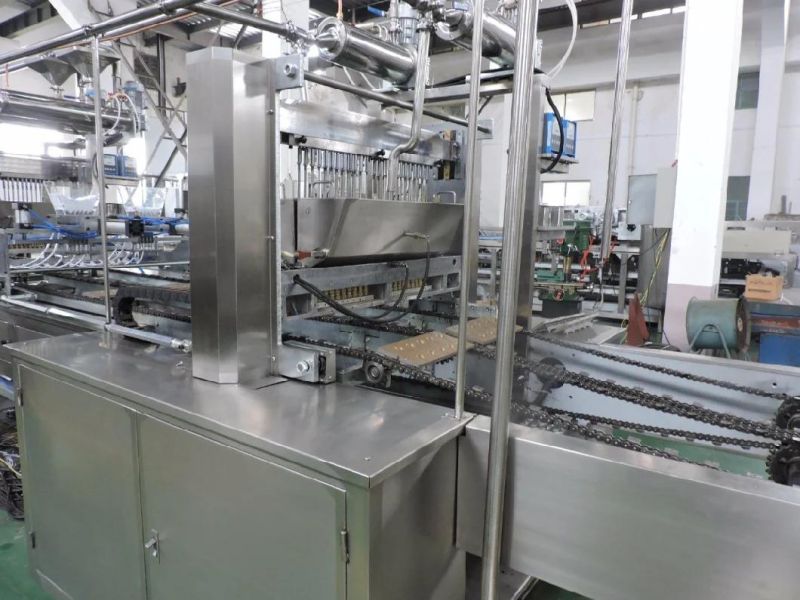

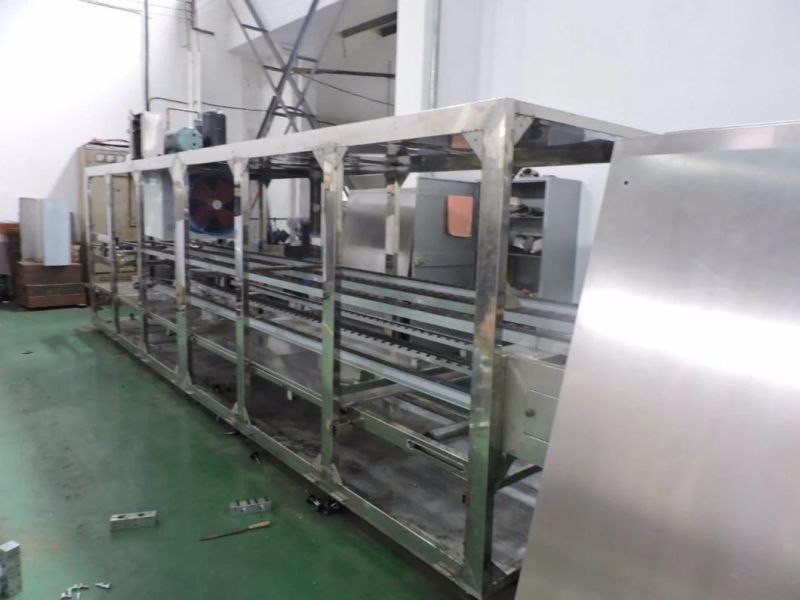

3.KH-150-450 jelly gummy making machine part photo




4.KH-150-450 jelly gummy making machine finished sample

5.Our packing and shipping


6.Our service

The plant layout design, assembling and installation, start-up and local team training will be free at no cost. But the buyer should be responsible for the round-air tickets, local transportation, board & lodging, and US$40/day per person for the pocket money to our technicians. The testing people will be two persons, and will cost 30days.

 2.Utilities

The buyer should prepare sufficient electric power, water, steam and compressed air supplies which are suitable to be connected to our machinery before the arrival of our machinery.

 3.Warranty

The seller guarantees the quality of the products for 12months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery; the seller will replace the parts or send the technicians to go to the buyer's site for repairing and maintenance for FREE. If the defaults are aroused by the defaulted operations of the buyer, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.

7.Contact us and get your inquiry Now !

As the direct factory, KH is always trying the best to improve our technology and service, we will also give you the best factory price as we could!

Kuihong food machine will give you warm welcome to visit our factory !
Contact sales---Amanda
Mobile :0086 18221489541
