Cream Homogenizer Price Dairy Homogenizer Factory
Shanghai Kaiquan Machine Valve Co., Ltd.- Process：Mild Processing
- Power Source：Electric
- Certification：CE, ISO9001
- Automatic Grade：Automatic
- Application：Milk, Yogurt, Milk Powder, Cheese, Dairy, Milk, Juice, Beverage
- Customized：Customized
Base Info
- Model NO.：KQ-1000
- Name：Cream Homogenizer Price Dairy Homogenizer Factory
- Homogenizer Application：Homogenize Milk, Yogurt, Icecream, Juice,Chemical
- Material：Stainless Steel 304 ,316
- Homogenizer Pressure：250MPa, 250bar, 70MPa
- Homogenizer Certificated：Ce Certificate
- Capacity：500L,H--10000L,H
- Performance：0.2um
- Food Industry Homogenizer：Sanitary Contacting Parts
- Spare Parts：Available
- Stage：Two Stage
- Working Life：More Than 10years
- Warranty：One Year
- MOQ：1 Set
- Packing：Wooden Box
- OEM：Yes
- Transport Package：Standard Wooden Box
- Specification：Follow your request
- Trademark：KAIQUAN
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：100 Units,Month
Description
Basic Info.
Model NO. KQ-1000 Name Cream Homogenizer Price Dairy Homogenizer Factory Homogenizer Application Homogenize Milk, Yogurt, Icecream, Juice,Chemical Material Stainless Steel 304 /316 Homogenizer Pressure 250MPa, 250bar, 70MPa Homogenizer Certificated Ce Certificate Capacity 500L/H--10000L/H Performance 0.2um Food Industry Homogenizer Sanitary Contacting Parts Spare Parts Available Stage Two Stage Working Life More Than 10years Warranty One Year MOQ 1 Set Packing Wooden Box OEM Yes Transport Package Standard Wooden Box Specification Follow your request Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/MonthProduct Description

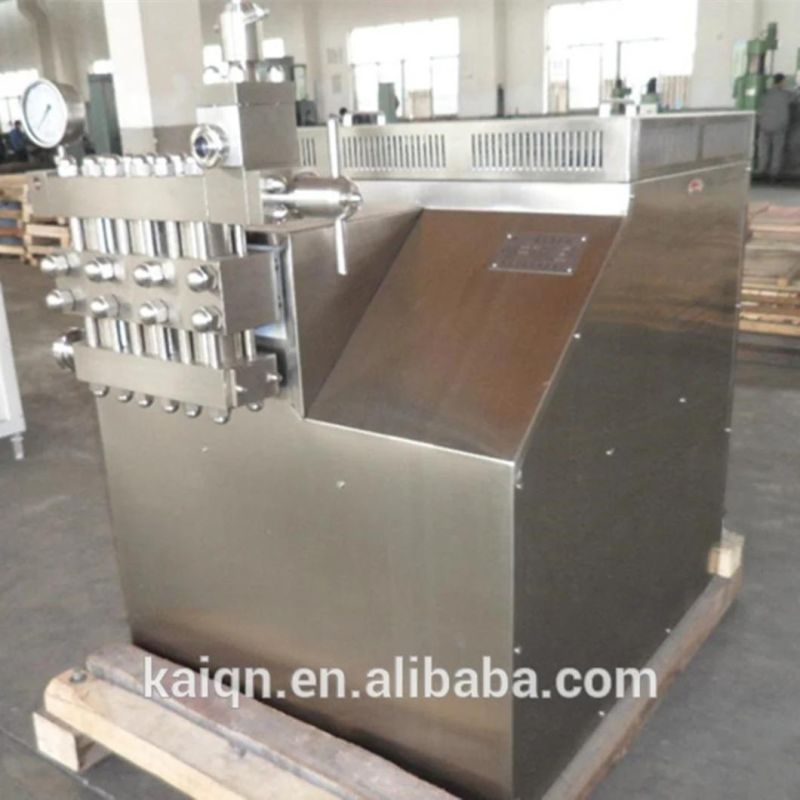

Cream Homogenizer Price Dairy Homogenizer Factory
| Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
| Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
| Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
| Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
| Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
| Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
| Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
| Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
Cream Homogenizer Price Dairy Homogenizer Factory
