• Specification：Customized
• Trademark：TUNE
• Origin：Shandong Province, China
• HS Code：8422303090
• Production Capacity：Customized

Basic Info.

Specification Customized Trademark TUNE Origin Shandong Province, China HS Code 8422303090 Production Capacity Customized

Product Description

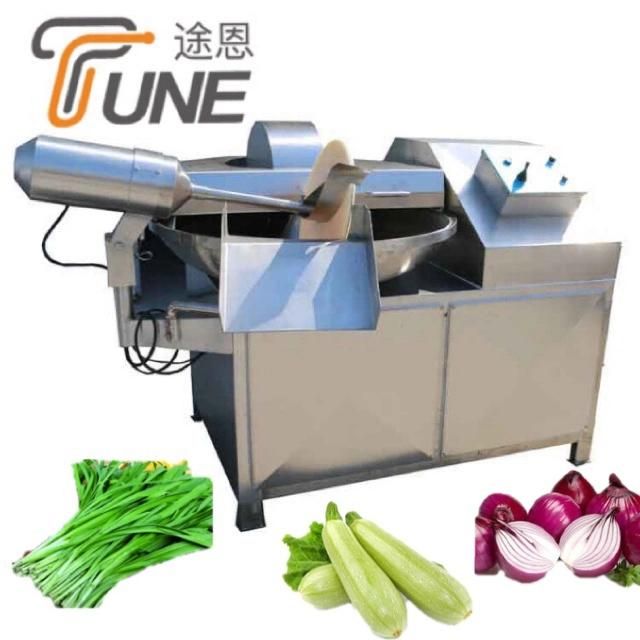

Electrical Industrial Frozen Meat Bowl Cutter


Product Description
The machine is one new type product designed and made by us. It is driven through enclosed-gear. The machine is compact in construction, easy operable, electricity saving and high in efficiency . It can cut up meat , vegetable and fruit to filling quickly. It is good looking and safety. All parts in contact with food are made of stainless steel or AL-alloy, all in conformity with hygiene standard. It is a ideal machine for food preparation in hotels, restaurants, institutional kitchens and cateens.

Techical Parameter

Model	TZB-20	TZB-40	TZB-80	TZB-80 (frequency  conversion)	TZB-125	TZB-125 (frequency  conversion)
Volume(L)	20	40	80	80	125	125
Capacity (kg/batch)	15	30	60	60	100	100
Power (Kw)	1.85	5.5	13.17	13.17	21.85	21.85
Voltage(V)	380	380	380	380	380	380
Knife Quantity (pcs)	3	3	6	6	6	6
Knife Speed (rmp)	1500/3000	1500/3000	1500/3300	stepless speed  regulation	1800/3500	stepless speed  regulation
Pot Speed (rmp)	16	12	8/16	8/16	10/16	10/16
Dimension (mm)	770*650* 980mm	1150*750* 1200mm	1400*820* 1300mm	1400*820 *1300mm	2090*1200 *1450mm	2090*1200* 1450mm

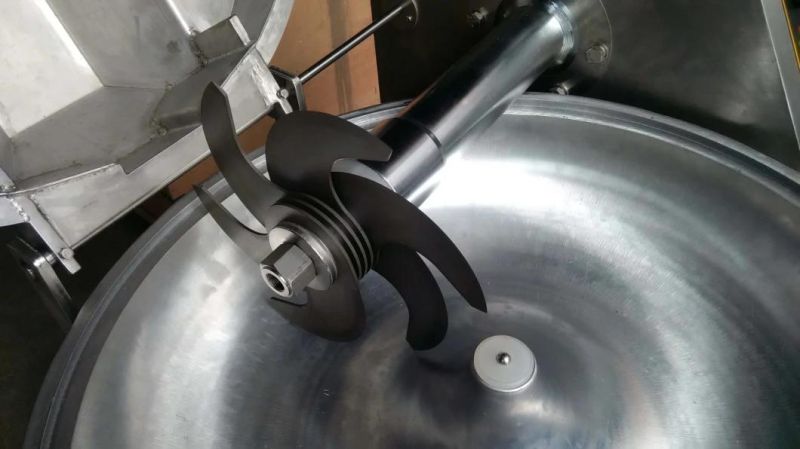

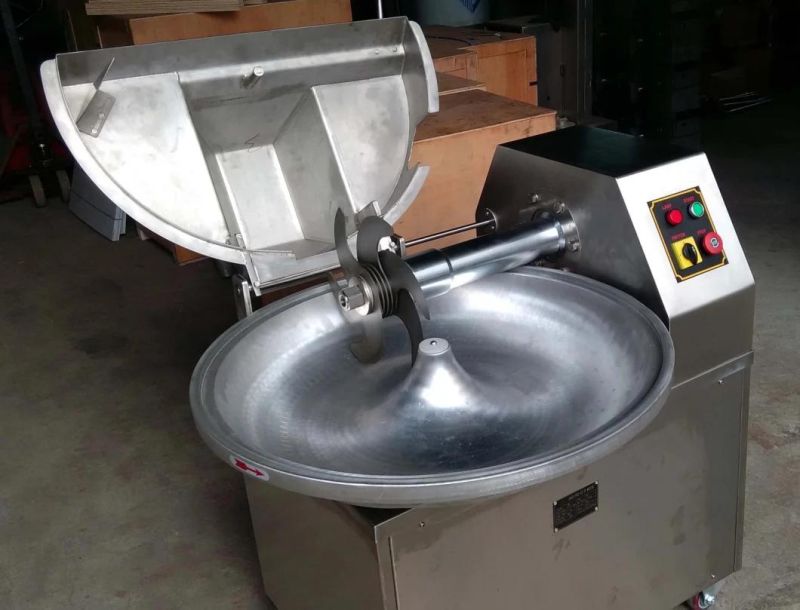

Detailed Images

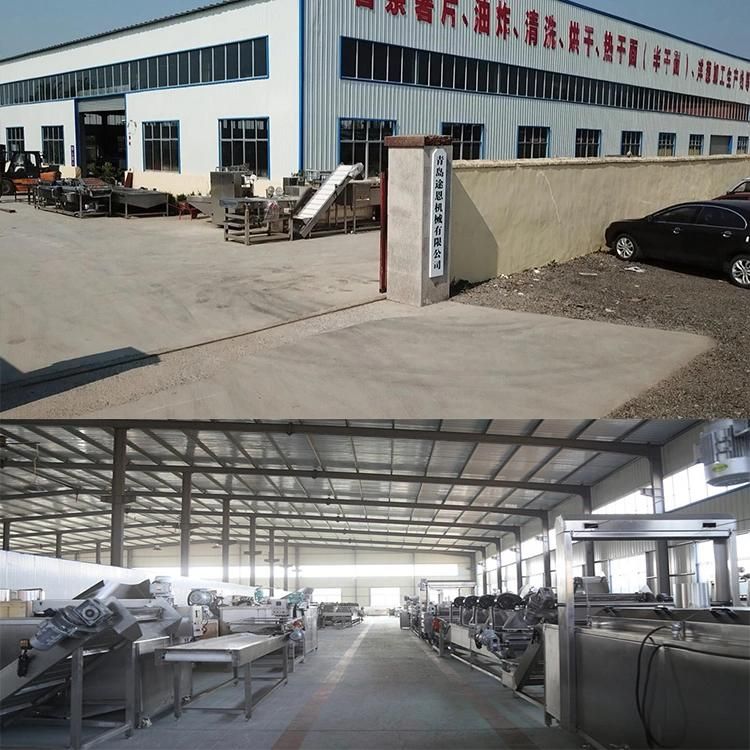

Our Factory

Our clients
