• Model NO.：JTM
• Condition：New
• Customized：Customized
• Warranty：1 Year
• Delivery：20 Days
• Material：Stainless Steel
• Production：500sets,Quarter
• Ability：10 Years Macnufacture Experience
• Motor：ABB,Siemens,Sewdosmetic
• Accessory：Pipe,Valve,Pump,Filter,Tank etc.
• Apply Scope：Wet Product, Bean,Corn,Butter,Seed,Pepper etc.
• Transport Package：Wooden Case Package
• Specification：1-100 t,h
• Trademark：FLT
• Origin：Zhejiang, Chna
• HS Code：897892000
• Production Capacity：800 Sets,Quarter

Basic Info.

Model NO. JTM Condition New Customized Customized Warranty 1 Year Delivery 20 Days Material Stainless Steel Production 500sets/Quarter Ability 10 Years Macnufacture Experience Motor ABB,Siemens,Sewdosmetic Accessory Pipe,Valve,Pump,Filter,Tank etc. Apply Scope Wet Product, Bean,Corn,Butter,Seed,Pepper etc. Transport Package Wooden Case Package Specification 1-100 t/h Trademark FLT Origin Zhejiang, Chna HS Code 897892000 Production Capacity 800 Sets/Quarter

Product Description

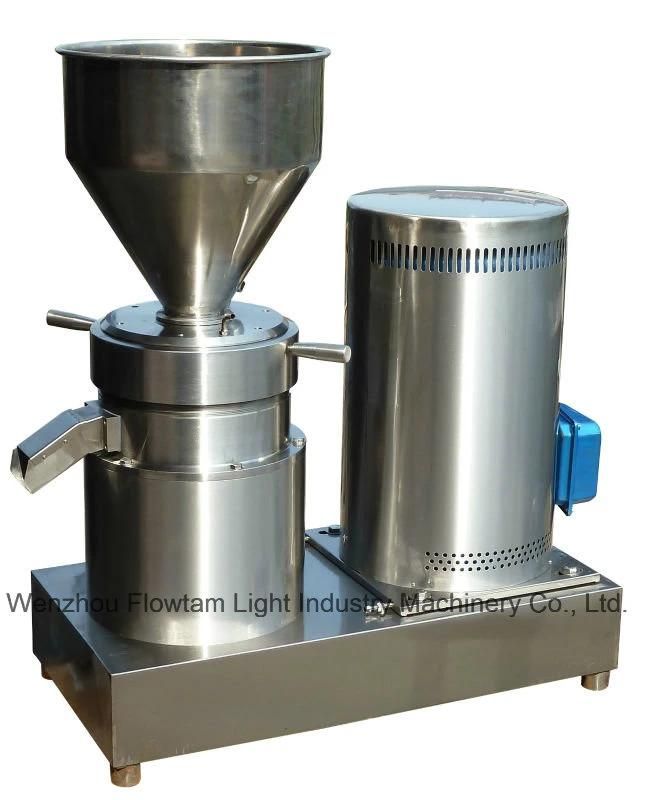

Stainless steel almond butter colloid grinder

Product Name	Colloid mill/grinder/grind machine/colloid grinder
Description	Designed according to 3A standard, widely used for transfer viscous media in the food-processing, beverage, cosemtics, chemical and pharmaceutical industries
Construction	Hopper, millstone-rotor and stator, motor etc.
Material	SS304/SS316L/1.4301/1.4404
Structure	Spilt-case type, horizontal type, vertical type, pipeline type
Max. Output	10 t/h (details according to different product)
Pressure	2 bar
Working temperature	120 C / 248 F
Process	Grind/mill wet bean, corn, pepper, peanut, butter, sesame etc
Fineness	5-100 micron
Speed	2800rpm
Motor power	1.1kw-18.5kw
Voltage	110v/220v/240v/380v/415v/460v (50/60hz)
Motor	SIEMENS, ABB, Domestic
Surface treatment	Inner polished and Sandblast outside
Availably connection	Clamp, Thread, Butt weld, Union
Availably standard	DIN, SMS, 3A, RJT, ISO/IDF
Application scope	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details	Plywood case or customerized. Or as per the request of customers
Delivery details	Usually within 15 days after receiving T/T down payment, special customized need negotiation.

Description
Working Method:

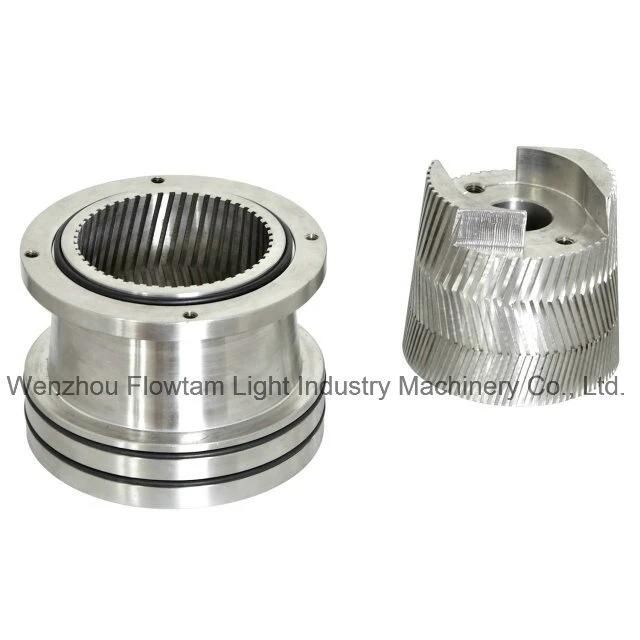

Colloid mill works with shearing, grinding, high-speed stirring. Grinding process
Occurs in relative movement between the two teeth with one revolving in high speed
And another keep still. Which makes the material between the teeth receive strong
Shearing and abrasion in addition to high frequency vibration and high speed swirl.
The material will be evenly smashed, dispersed and emulsified

Service: Urgent response on working time, reply in 24h at weekends
Reliable quality, beatiful surface

Technical Data

Model	Emulsifier size	Output (t/h)	Millstone dia mm	Cooling water pipe mm	Ouelet dia mm	Inlet dia mm	Speed(rmp)	Sharp(kw)	Size	Weight
JML-50	2-40	0.01-0.01	50	10	20	30	2800	1.5(220V)		55
JML-50	2-40			10	20	30	2800	1.1(380V)		50
JML-65	2-40	0.02-0.5	65	10	20	30	2800	1.5		57
JMF-65	2-40			10	20	30	2800	2.2		70
JMW-80	2-40	0.3-1	80	12	25	48	2800	3		75
JML-80	2-40			12	25	48	2800	3		85
JMF-80	2-40			12	25	48	2800	4		140
JMW-100	2-40	0.5-2	100	12	25	66	2800	5.5		115
JML-100	2-40			12	25	66	2800	5.5		145
JMF-100	2-40			12	25	66	2800	5.5/7.5		230
JMW-120	2-40	0.5-3	120	12	32	66	2800	7.5		120
JML-120	2-40			12	32	66	2800	7.5		150
JMF-120	2-40			12	32	66	2800	7.5		240
JMW-140	2-40	0.5-4	140	12	32	66	2800	7.5		160
JML-140	2-40			12	32	66	2800	7.5		180
JMF-140	2-40			12	32	66	2800	7.5/11		290
JMF-180	2-40	1. -7	180	12	38	100	2800	11/15		360
JMF-200	2-40	1. -10	200	12	38	100	2800	15/18.5		400

Company Info
Supply Mixing tank, Reactor tank, fermentation tank, Inline homogenizer, High shear emulsifier mixer, Colloid mill, Jacket cooking kettle, Rotor pump, screw pump, emulsion pump, transfer pump etc.
Widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc., exported to America, Europe, the Middle East.
