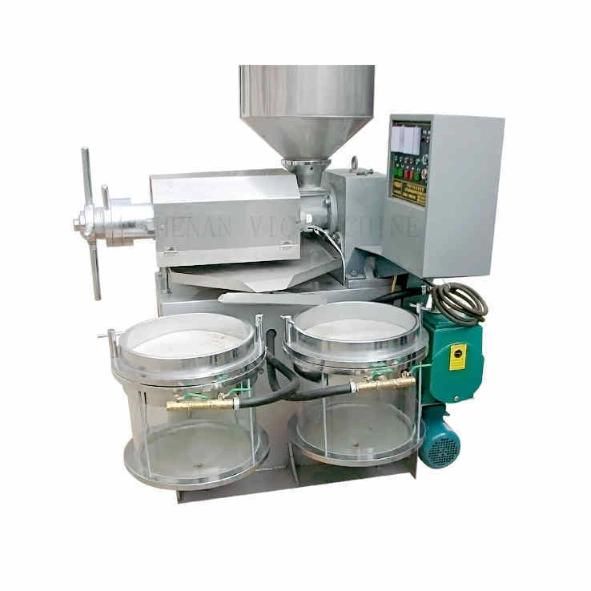

Auto temperature control oil press machine with 100-130kg/h
Henan VIC Machinery Co., Ltd.- Type：Efficient Fine Filter Oil Press
- Application：All
- Voltage：380V
- Appearance：Horizontal
- Press Materials：All Oil Seeds
- Press Series：Second
Base Info
- Model NO.：CY-282A
- Condition：New
- Customized：Customized
- Feature：Glass Filter and Temperature Control
- Hot Press and Cold Press：Both Available
- Delivery Time：3-5days
- Filtering Parts：Glass Type Filtering
- Transport Package：Wooden Box
- Specification：CE
- Trademark：VIC
- Origin：China
- HS Code：84792000
- Production Capacity：3000PCS,Year
Description
Basic Info.
Model NO. CY-282A Condition New Customized Customized Feature Glass Filter and Temperature Control Hot Press and Cold Press Both Available Delivery Time 3-5days Filtering Parts Glass Type Filtering Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 3000PCS/YearProduct Description
CY-system Temperature Control Oil Press MachineApplication:

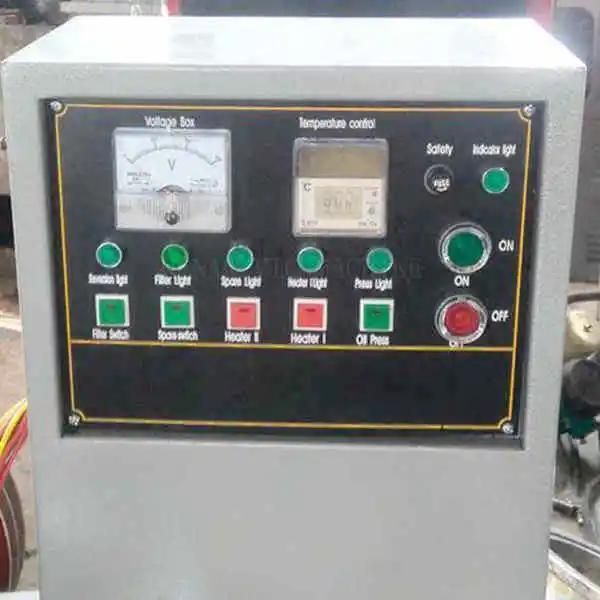

CY-system Temperature control oil press is an advanced oil press with vacuum filter part, automatic temperature control part and gearbox, both hot press and cold press can be used. It can press different materials such as sesame, peanut, rapeseeds, sunflower seeds, soybean, tea seeds etc with high oil output rate and low energy consumption. Before pressing, some parts of the press such as the press chamber, press screw and press ring will be pre-heated. During pressing, he press can filter the oil in due time. Only one time press can get edible oil 3% higher than normal oil press. Especially for the filtering part is with glass steel filter for better observation of the oil.
Technical data:
Model: CY-172A Temperature control oil press
Capacity: 70-85 kg/h
Power: 4kw (380V/50Hz/3P)
Size: 108*92*140cm
Weight: 350kg
More model of CY-system oil press machine
Model | Capacity(kg/h) | Power ( kw ) | Size ( mm ) | Weight ( kg ) |
CY-172A | 70-85kg/h | 3kw+0.75kw | 1080x920x1400mm | 350kg |
CY-282A | 100-130kg/h | 5.5kw+1.1kw | 1300x960x1420mm | 560kg |
CY-298A | 180-240kg/h | 7.5kw+1.5kw | 1500x1000x1600mm | 790kg |

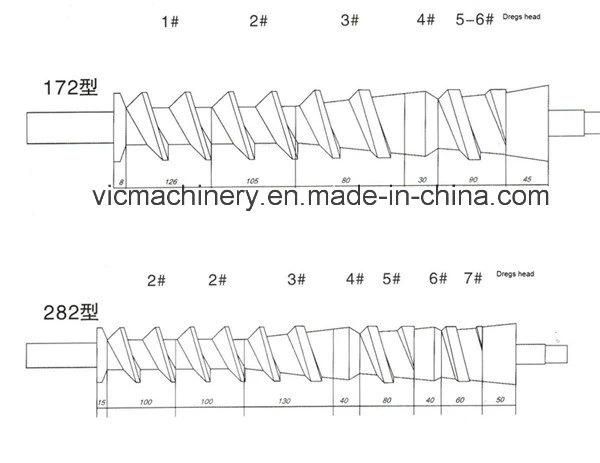

CY-system pressing screw

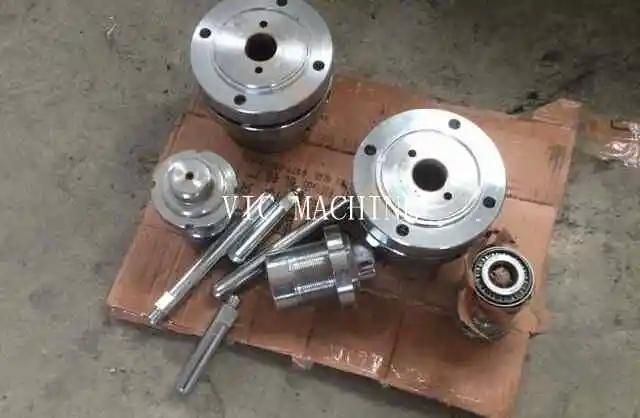

Other parts

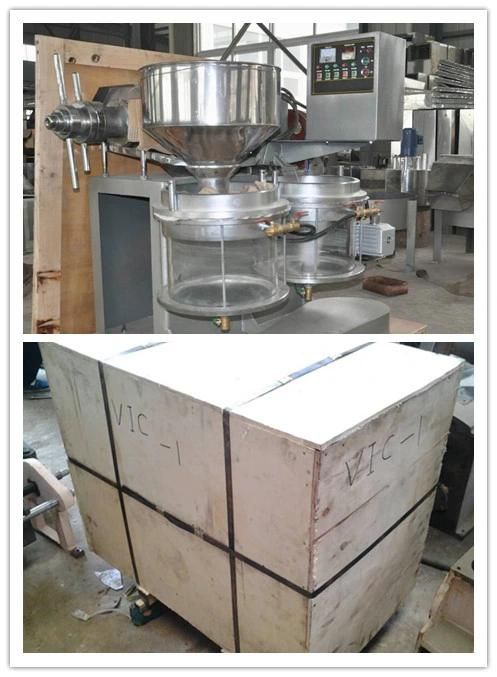

Package picture

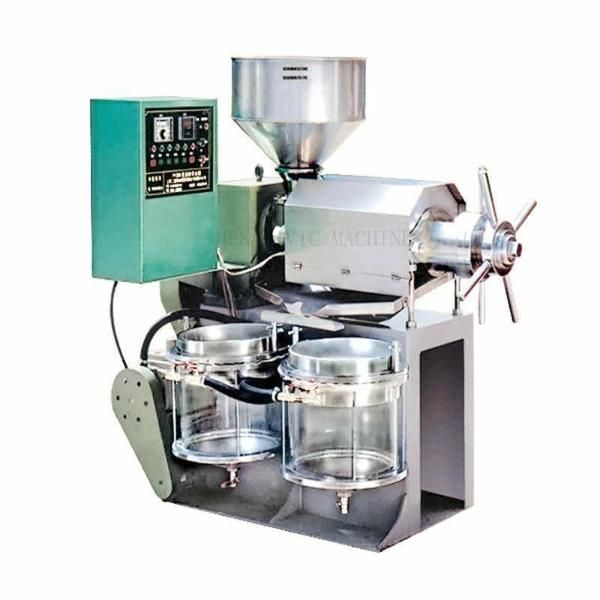

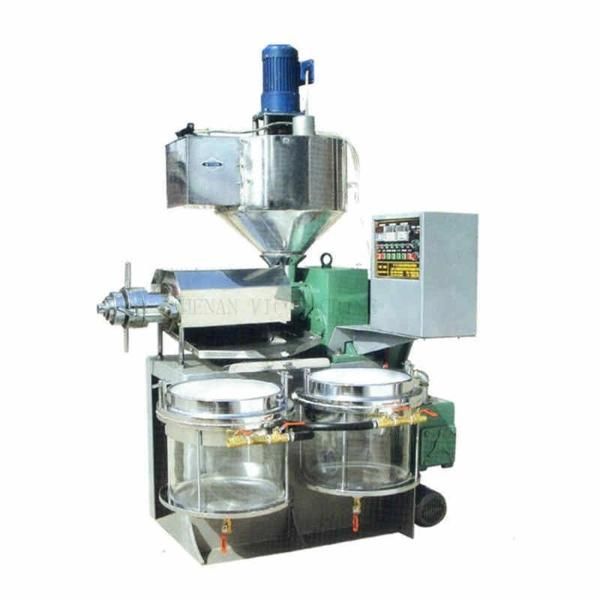

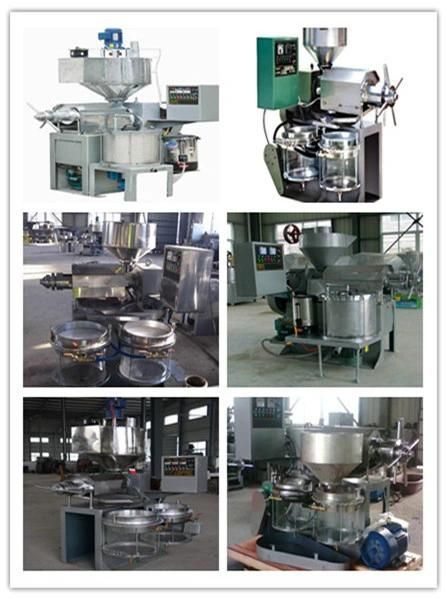

Other type CY-system oil press machine picture
After sale service
Company certification
