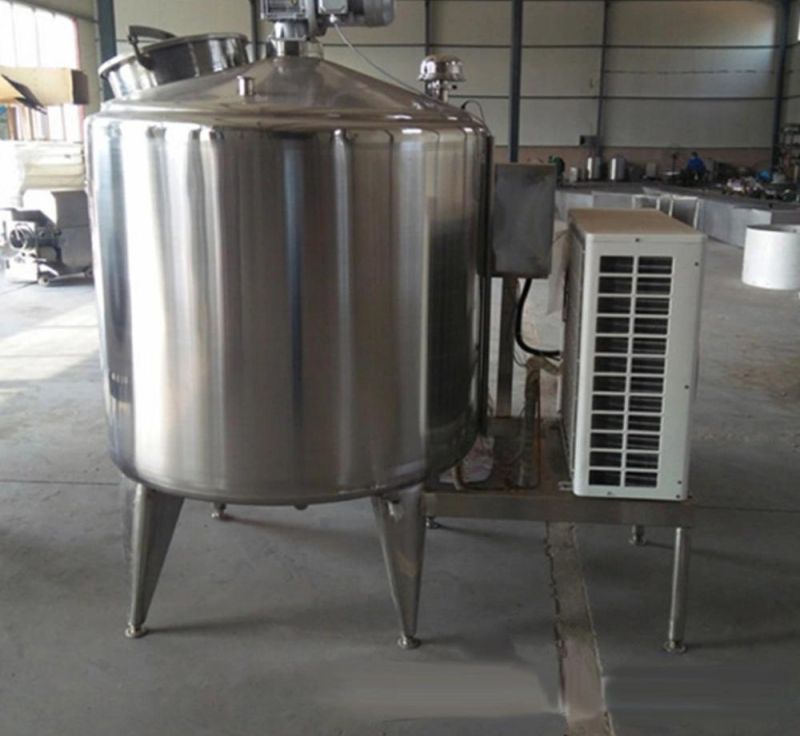

Stainless Steel Storage Raw Milk Cooler 500L 1000L 2000L

Shanghai Kaiquan Machine Valve Co., Ltd.
  • Process：Frozen and Chilled
  • Power Source：Electric
  • Certification：CE, MET, CSA, UL, SA8000, ISO9001
  • Automatic Grade：Automatic
  • Application：Milk, Yogurt, Cheese
  • Customized：Customized

Base Info

  • Model NO.：KQ500L-KQ10000L
  • Name：Stainless Steel Storage Raw Milk Cooler 500L 1000
  • Refrigerant：R404A,R22
  • Compressor：USA Copeland
  • Fresh Bulk Milk Cooling and Storage：300 Litres to 10000 Litres
  • PU Insulation Wall Thickness：70mm
  • Outside Shape：Vertical and Horinzontal
  • Milk Tank Material：SS304
  • Milk Tank Function：Cooling and Storage Fresh Milk
  • Working Electricity：3phz
  • Mixer：Equiped
  • Transport Package：Standard
  • Specification：ISO
  • Trademark：KQ
  • Origin：China
  • HS Code：841869909
  • Production Capacity：1000

Description

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T1.8T2.05TStainless Steel Storage Raw Milk Cooler 500L 1000L 2000L
