• Model NO.：HDFM30
• Press Materials：Corn
• Press Series：Maize
• Condition：New
• Customized：Maize
• Warranty Time：Two Year for Maize Flour Milling Machine
• Installation Form：Steel Frame Construction Maize Flour Milling Machi
• Noise：Less Than 85 dB
• Dust：Less Than 10mg,M3
• Pipe：Stainless Steel
• Spare Parts：Yes
• Control System：PLC Flour Milling Machine
• After Sale Service：Engineer Overseas
• Production：30 Set Per Year
• Pack：Suitable for Sea Transportation
• Transport Package：Plastic Film, Transported in Container20′or 40′
• Specification：GB1355-88
• Trademark：hongdefa
• Origin：Hebei China
• HS Code：84370000
• Production Capacity：More Than 200 Sets,Year

Capacity30t/24h corn millRaw MaterialMaize/CornTechnology in flour milling sectionHigh-efficiency vibration sifter, Gravity classification destoner,
Magnetic Separator, Damper, degerminator, Polisher,
Roller mill, Double bin sifter, Central control panel,
packing machine
 Products and extraction rate(%)Maize/Corn flour: 40-50%
Maize/Corn grits: 35-40%
Maize/Corn bran, coarse fodder:10-12%
Embryo: 8-10%
It can produce fine maize/corn flourProducts quality indexSand content:≤0.02%
Fat content:≤2.5%
Magnetic metal content: ≤0.003%
Moisture content:≤13.5%-14.5% (based on the raw corn according with national standard for raw grain storage)Power required(KW)About 102kwUsed underVoltage:380v

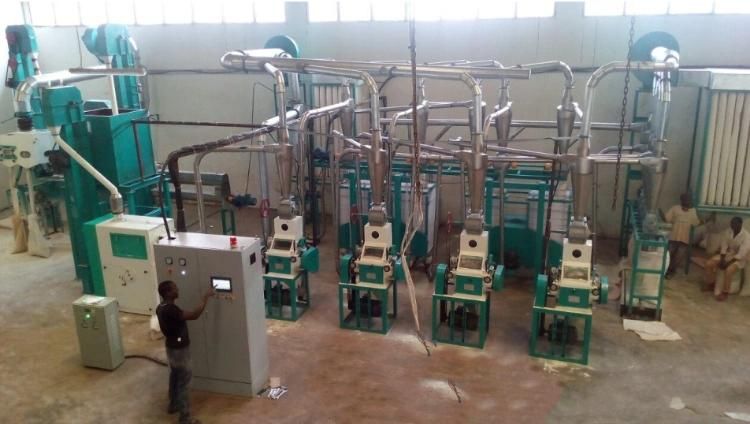

Frequency:50HZ,below an elevation of 1000m.Workshop dimension30*8*6m(L*W*H)Container1*40' This kind of flour milling machine has three parts, cleaning part consists of sieving, destoning, dampening machines and the milling parts mainly adopts roller mill and round sieves or double bin sifters, control part uses touch screen control system or button control. Features of 30T Small Flour Milling Machine:
            High Standard Quality maize mill machine
           Advance roller stands
           Screw air compressor
           Stainless steel pipe where contact with the material

1. Maize mill machine includes clean mill and pack Can produce fine maize flour and grits
2. Maize mill machine can be used for processing ugali, posho, Fufu, grits etc.
3. High extraction rate
4. Good quality
5. Material: Steel

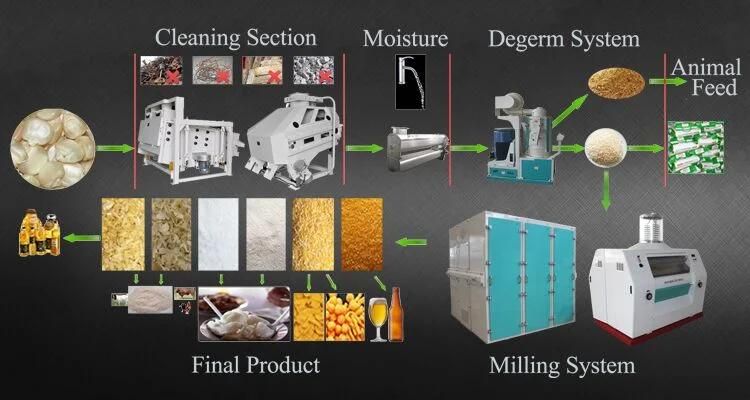

Techniques flow Grits: Raw maize →Cleaning →Moisture adjust →Peel and break →Embryo Select →Milling →Finished product
Cleaning flow: Raw maize →High efficiency vibrate sifter →Magnetic separator →Horizontal Scourer →Gravity classification stoner→ Clean maize

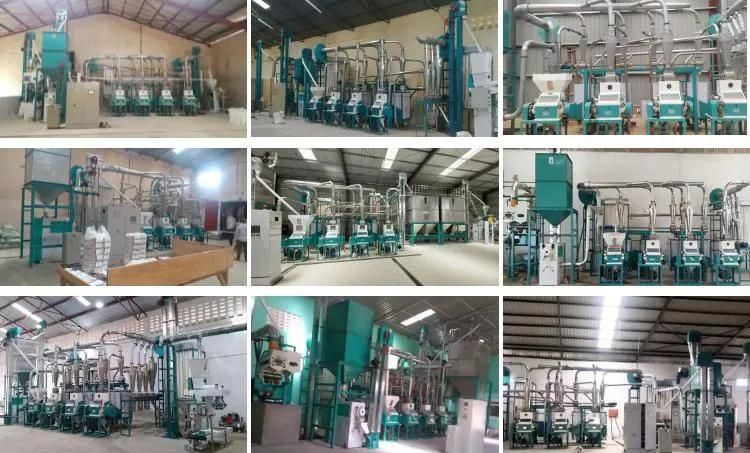

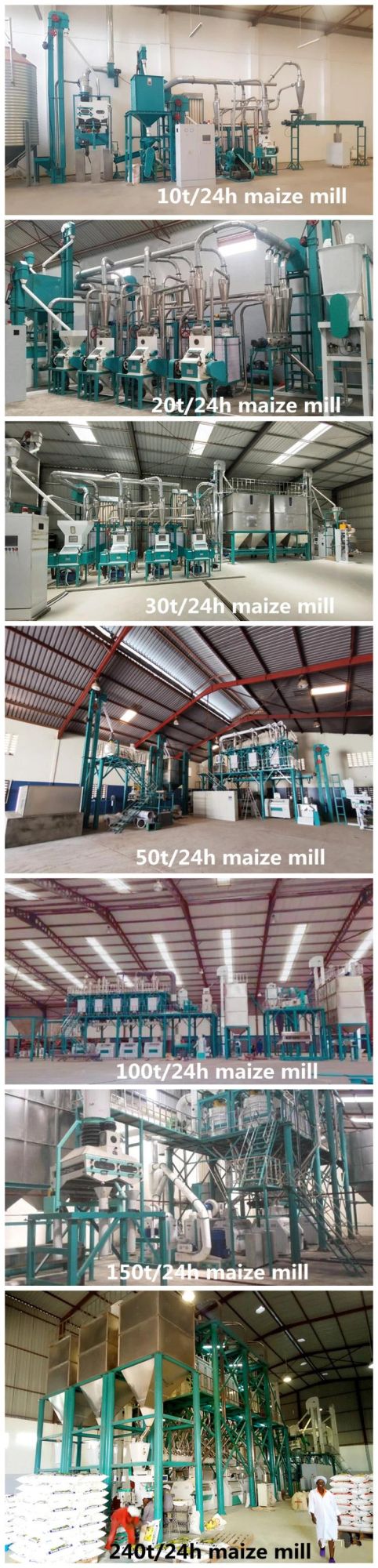

We have installed 30t/24h maize milling plant in Kenya, Tanzania, Malawi, South Africa, Angola, Zimbabwe, Rwanda, Nigeria,
Zambia, etc.


We have export our product to many countries, like Argentina (100t/24h) , Brazil(200t/24) ,South Africa
(1500t/24h), Zimbabwe (120t/24h, 50t/24h, 30t/24h) , RD Congo (20t/24h) ,Zambia (30tons/24h,50t/24h ,
100tons/24h,150tons/24h),Benin (150t/24h), Kenya (150t/24h, 50t/24h.)


Capacity	Countries	Year
20tons/24h maize mill	Zimbabwe	2009
	RD Congo	2010
	Cameroon	2010
	Zambia	2010,2014,2015
	RD Congo	2011
	Uganda	2011, 2013,2015
	Angola	2011
50tons/24h maize mill	Malawi	2009
	Kenya	2010, 2014, 2015
	Zimbabwe	2010
	RD Congo	2010
	Argentina	2010
	Venezuela	2010
	Zambia	2010, 2015
	Uganda	2011,2014
100tons/24h maize mill	South Africa	2010
	Venezuela	2010
150ton/24h maize mill	Kenya	2014, 2015
	Zambia	2014, 2015
500ton/24h maize mill	South Africa	2014

1.The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located in Wumashan industarial area, Zanhuang County,
Shijiazhuang City, 4hours driving From Beijing. we are professinal factory and exportor combo for maize mill machine and
wheat flour milling machines since 1982.

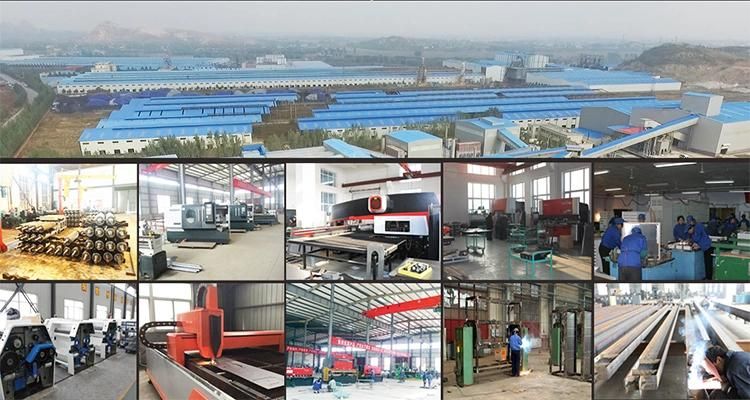

Hongdefa factory:
Hongdefa has approximately 120 workers, a manufacturing factory of 50000 square meters, and 5000 square
meters of production workshop, 6000 square meters warehouses, 1000 square meters of office space

2.  Advanced Processing Equipment:
  China and Australia/European Wheat Flour Mill Technology
  China and South Africa Maize Mill Technology

3. Professional engineer team and sales team.
 Our engineer team have more than 30 qualified engineers, all of them have more than 15 years of installation and designing
experience in the flour mill field.
Our sales manager have more than 10 years sales experience, have been to more than 20 countries to visit clients and
build overseas office.



4. Lifelong oversea services for our maize mill machine
we build our branch office in Lusaka, Zambia, Addis Ababa, Ethiopia, Kampala, Uganda, Syndey, Australia,and we have
agent from Brazil and Kenya.


5. Certificate for our maize milling machine
 All our machinery are high quality and have passed the certification of ISO, CE, BV, SGS and COC.

FAQ
1. Does the Wheat Maize Mill use the same production line?
No, the physical properties of wheat and maize/corn are different, and they require completely different production lines.
2. What is the flour extraction rate of the Maize/Corn Mill?
The flour extraction rate depends on the cleanliness of the raw grain and the type of the finished product.
Usually, the flour extraction rate is 75%-85%.
3. Can the wheat/maize/corn flour mill produce different kinds of final products at the same time?
Yes,the wheat/maize/corn flour mill can produce different size flour at the same time at one production line.
4. Can the wheat/maize/corn flour mill packing machine pack different bags?
Yes,the packing machine can pack 1kg-5kg;5kg-20kg,25-50kg.
5. Can the maize corn wheat milling line run with Generator?
Yes,the maize mill line can run with Generator.
