• Model NO.：DTWZ-D
• Condition：New
• Customized：Customized
• Solvent Type：Water or Ethanol or Other Medium
• Corrosive Allowance：Zero
• Working Pressure：Normal or Vacuum Pressure
• Solvent Recycling：Distilled Solvent Will Be Condensed and Recycled
• Automatic Control System：Complete with PLC Automatic Control System
• Evaporation Capacity：Customized
• Transport Package：Sea Worthy Wooden Packing
• Specification：1000L-6000
• Trademark：Zhejiang Sunny Machinery,OEM
• Origin：Wenzhou China
• HS Code：8419899090
• Production Capacity：50sets,Year

Basic Info.

Model NO. DTWZ-D Condition New Customized Customized Solvent Type Water or Ethanol or Other Medium Corrosive Allowance Zero Working Pressure Normal or Vacuum Pressure Solvent Recycling Distilled Solvent Will Be Condensed and Recycled Automatic Control System Complete with PLC Automatic Control System Evaporation Capacity Customized Transport Package Sea Worthy Wooden Packing Specification 1000L-6000 Trademark Zhejiang Sunny Machinery/OEM Origin Wenzhou China HS Code 8419899090 Production Capacity 50sets/Year

Product Description

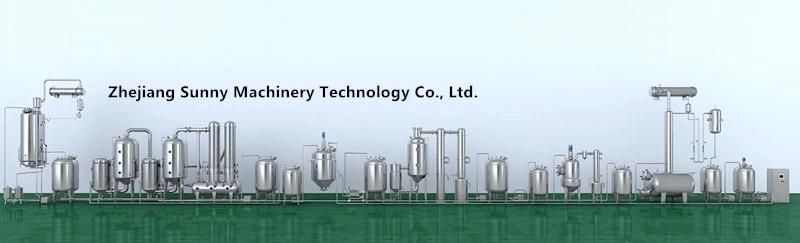

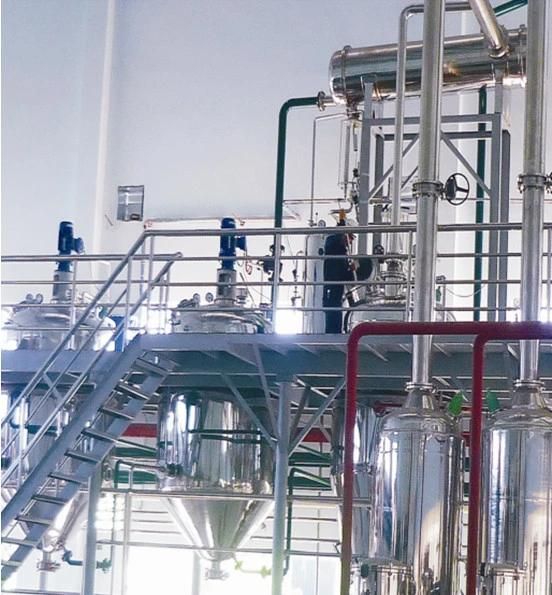

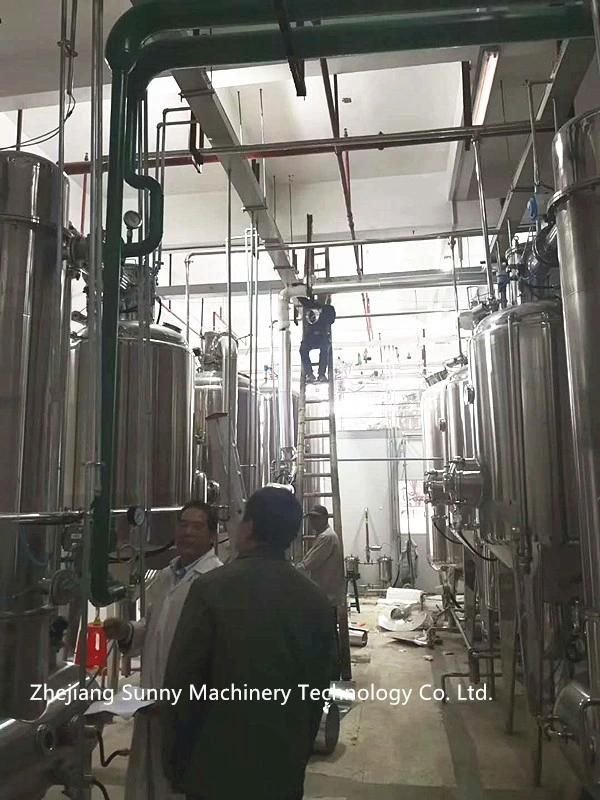

Complete Production Line for Automatic Herbal Extraction and Concentration Application .

Aromatic Oil Extraction from natural plant with complete automatic control system

Sunny Machinery Technology is committed To Be A Brand Company Servicing and Supplying Complete Equipment for Big Healthy Industries in Pharmaceutical, Food and Beverage, Cosmetic, Chemical Sectors

Sunny People are Always Ready for Servicing You and Your Company with Explicit Expertise and High Quality Products.

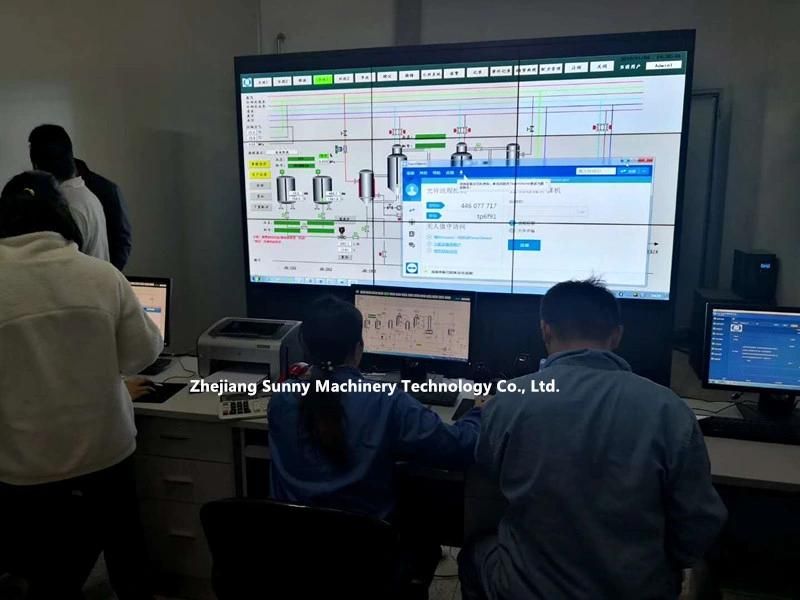

Control Function of Major Process Unit
1, Solvent dispensing: with on-line detection of liquid level, temperature, PH value, purification water level, etc. The system controls purification water control valve, solvent discharging pump and cleaning liquid discharge pump.
2, Extraction unit: on-line detection of liquid level, temperature, pressure, heated steam pressure, flow rate of solvent. The system automatically adjust heated steam according to set temperature rise time and holding temperature. The solvent inlet control valve and extract discharge pump and valve can also be automatically controlled on line.
3, Double or Single-effect concentration unit: on-line detection of single-effect and double-effect liquid temperature, gas phase temperature, liquid level, vacuum degree, density, heated steam pressure, feeding volume. The system will automatically adjust heating steam according to set temperature and vacuum degree, as well as feeding flow rate and concentrated discharging.
4, Alcohol deposition unit: on line detection of deposition tank temperature, alcohol flow rate, the system will automatically adjust the jacket heating and cooling water flow rate, motor rotating speed, alcohol loading speed and flow rate according set configuration.
5, Column chromatography unit: on line detection of purificated water flow rate, acid or alkali rate, alcohol flow rate, material flow rate, etc. The system will automatically adjust these process parameters and accumulates. Meanwhile automatically control of chromatographic column liquid level.

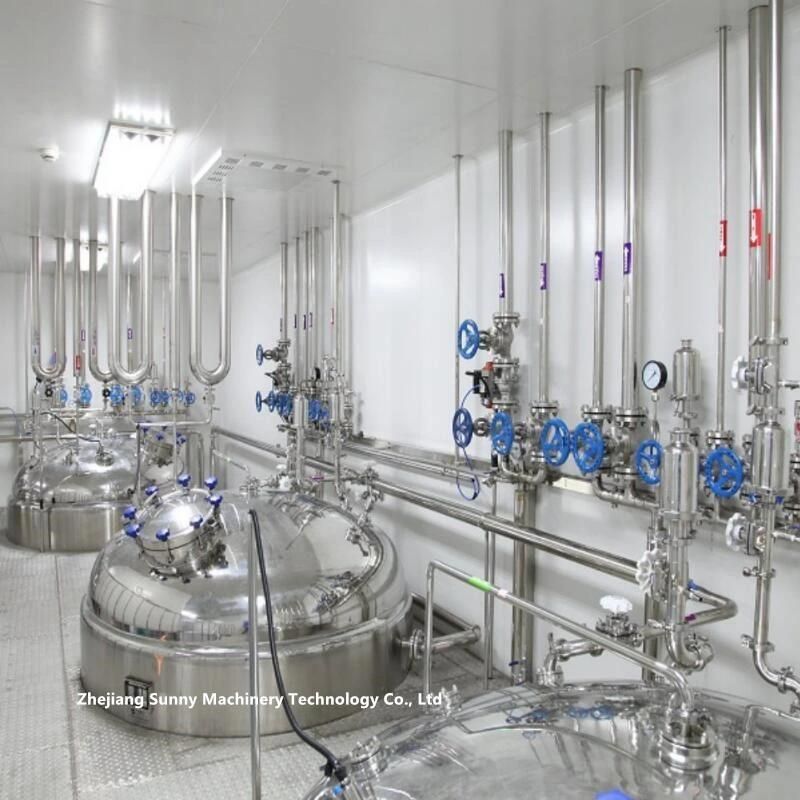

Taper Type Extracting Tank ( Z shape)
It takes smaller space on installation with faster heating speed.

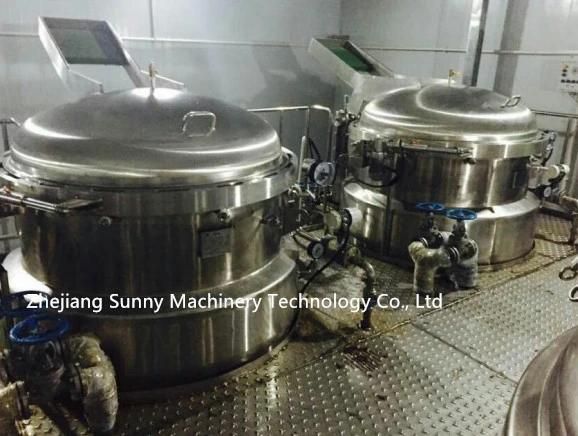

Mushroom Type Extracting Tank ( M shape )
The appearance is big at the top and small at the bottom, the shape of mushroom provides more buffering space with less foam.

Straight Cylindrical Extracting Tank (T shape)
With long and thin appearance, it takes larger space for installation, bottom heating could be increased for better heat and medium transfer and easy residue discharge.

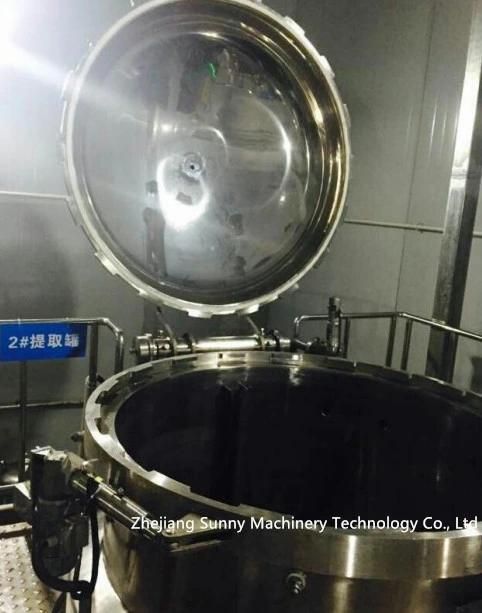

Basket Lifting Type Pressed Extracting Tank (Y shape)
With upper open cover structure and inner heating direct injection unit, it is suitable for animal bones extraction with high efficiency and high pressure resistance.
