• Model NO.：80T,24H
• Condition：New
• Customized：Customized
• After-Sales Service Provide：Engineer Available to Service Machinery Overseas
• Capacity：5t 10t 20t 30t 50t 100t 150t 200t 300t 500t
• Size：Accordingly
• Certification：ISO9001
• Warranty：One Year
• Running Machine：China, Ethiopia, Brazil, Egypt Wheat Flour Milling
• Control System：PLC for Wheat Flour Milling Machine
• Warranty Time：Two Years for Wheat Flour Milling Machine
• Installation：Flour Milling Machine Installed in Ethiopia
• After Sale Service：Engineer Install Wheat Flour Mill Machine
• Transport Package：Standard Exprt Package
• Specification：80T,24H
• Trademark：HDF
• Origin：China
• HS Code：843780000
• Production Capacity：100 Sets,Years

Basic Info.

Model NO. 80T/24H Condition New Customized Customized After-Sales Service Provide Engineer Available to Service Machinery Overseas Capacity 5t 10t 20t 30t 50t 100t 150t 200t 300t 500t Size Accordingly Certification ISO9001 Warranty One Year Running Machine China, Ethiopia, Brazil, Egypt Wheat Flour Milling Control System PLC for Wheat Flour Milling Machine Warranty Time Two Years for Wheat Flour Milling Machine Installation Flour Milling Machine Installed in Ethiopia After Sale Service Engineer Install Wheat Flour Mill Machine Transport Package Standard Exprt Package Specification 80T/24H Trademark HDF Origin China HS Code 843780000 Production Capacity 100 Sets/Years

Product Description

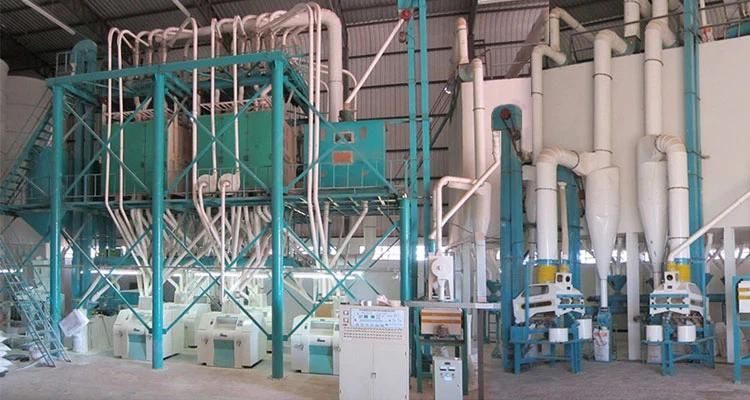

80ton Full Automatic Wheat Flour Milling Machine for sales

Wheat Flour milling machine price with different capacity 5t,10t,20t,30t,50t,100t,200t,300t per day.
Wheat Flour milling machine design with high quality and European standard.
Wheat Flour milling machine was installed in Egype 200T/D, Ethiopia 36T/D, 80T/D.
Wheat Flour milling machine for doing best quality flour to make bread, cake, biscuit, noodles, pasta, ect.
Wheat Flour milling machine price running in our factory, invite you visit our machine.

1	Total length of the roller	8400mm
2	Capacity(wheat/24h)	80T/24h
3	Flour extraction	To produce standard flour: 75-82% To produce grade 2 flour: 70 -75% To produce grade 1 flour: 60-65%
4	Flour quality:	Obey the people's republic of china's GB1355-88 standard
5	Power supply	About 262KW.
6	Total weight of the equipment	48T
7	Dimension of the factory	36000× 12000×12000mm (tripod structure)
8	Container	40'× 3
9	Installing time	50days
10	Delivery time	60 days after receive your down payment

Stainless Steel Damper
Wheat Flour milling machine before degerminator need moisture the grain, and this damper is stainless steel
Stainless Steel Pipe
Wheat Flour milling machine in the milling section the pipe is stainless steel. It is much more durable

Roller mill in Flour mill
The mill is the most important one machine of whole processing line, is mainly for grinding. To break wheat and bran's structure, and separate the wheat bran and the embryo from endosperm by grinding.

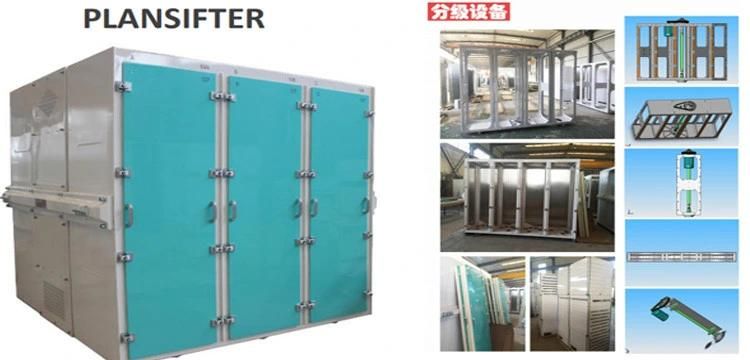

Plansifter in the 80ton/24h Wheat Flour milling machine:
1) Material: High-strength alloy steel
2)up and down sifter circles with steel plate overall by bending
3)Transmission system using spring force component institutions
4)Sieve frames of wood coated with synthetic resin,without backwire
5)All the inside walls as well as the doors are provided with high-grade insulation
6)Vertical and horizontal clamping system

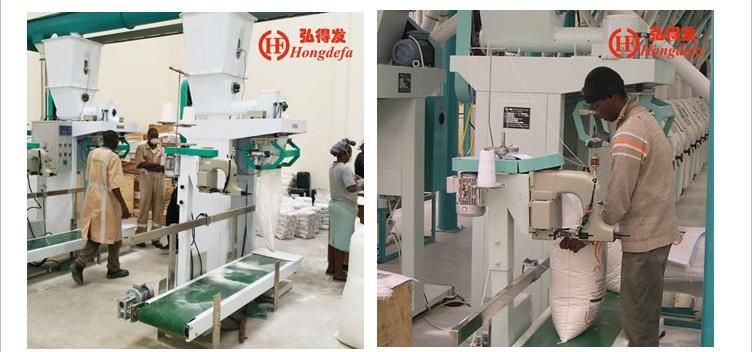

Automatic packing system in wheat flour milling machine factory:
E-measurement technology, realized automatically fill; automatic detect weight; automatic measure the number of the bags. It has different packing weight: 10kg 12.5kg 20kg 25kg and 50kg



The final product of Wheat Flour milling machine




We can design Wheat Flour milling machine price to process soft wheat, hard wheat and durum wheat to produce grade 1 flour, grade2 flour, standard flour, semolina and so on and adopt diffetent technology to meet different client's needs.
1. Wheat Flour milling machine price with European standard, making good wheat flour for bread,cake,pasta.
2. Wheat Flour milling machine price running wheat flour mill machine in Egypt,Ethiopia,Zambia,Brazil.
3. oversea center for flour process machine is available,supply different capacity Flour mill price.

Wheat Flour milling machine price Factory Design



Ms Penny
Shijiazhuang HONGDEFA machinery Co.ltd
NO.388 jianhua north street,shijiazhuang,China
website:sjzafricachina.en.made-in-china.com
Mob:0086-18032755353
