• Model NO.：DCGF18-18-6
• Maintenance Period：12 Month
• Brand：Kingmachine
• Warranty Time：12 Month
• After Service：Life-Long Service
• Transport Package：Wooden Case
• Specification：3200kg
• Trademark：kingmachine
• Origin：China
• HS Code：8422309090
• Production Capacity：6000bph

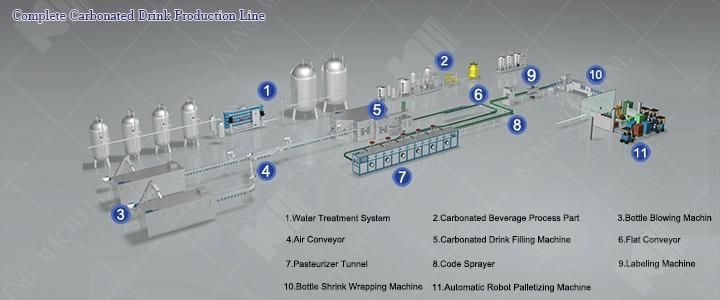

Containers and specificationsProject Name:
Full Automatic Complete Carbonated Drink 2000-36000bph Production LineCarbonated DrinkMaterialShapeFilling volumeFilling level(mm)Neck typePET BottleRound Bottle 100-2000ml Distance from bottle neck
According requestAs requestAdjustable specifications of the bottle typeMiddle Mould Base: Bottle diameter ≤105mm Bottle Height≤335mm Customers need to buy additional change-over parts for the different bottles.

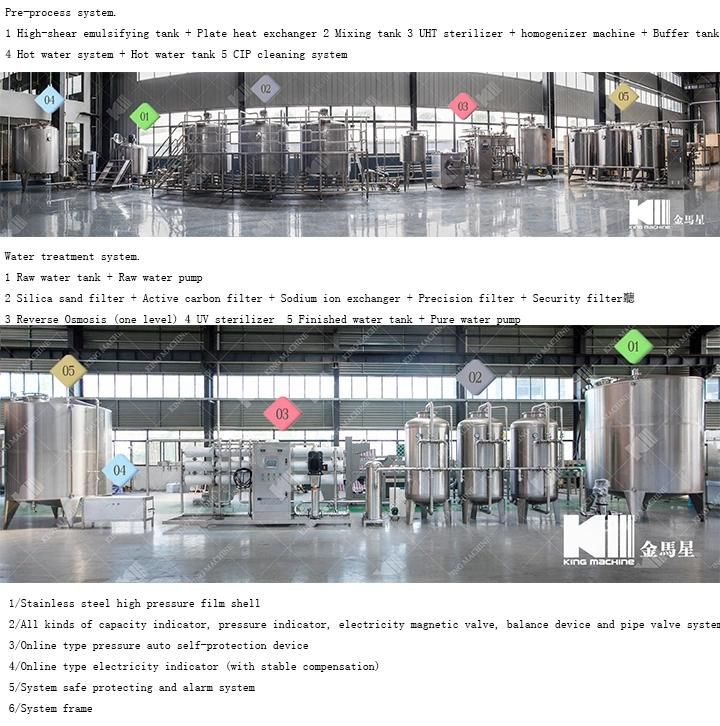

If using square bottles, then bottle separating system will be added.Carbonated Drink PreparationSyrup melting machine, Mixing Machine, CO2 filter, CO2 mixer ....Container Label & Control ModePackaging systemPalletizing system
Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / AutomaticPacking systemMin, Spec.Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer  Manual
Film shrinker
Wrap Around packer
Robert Packing Machine 1*2
2*3
3*4
4*6
3*5 User Ambient ConditionsTemperature:10~40ºC;Humidity:No dewUser Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%





Company Information:
        Zhangjiagang king machine Co., Ltd .was founded at 1995,and starting with beverage machinery.It is located at Zhangjiagang city Nanfeng industrial town,We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry .
        Our Main products including: Pure/mineral water and purified water producing line, carbonated beverage producing line, 3 gallons& 5gallons producing line. Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect


After Sale Service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
    a. Machine layout
    b. Electricity diagram
    c. Machine certificate
    d. General manual book/maintenance book
