• Model NO.：300L
• Material：SUS304
• Layer Number：Single-Layer
• Thickness：3mm
• Manhole：with
• Discharge：at The Bottom
• Transport Package：Wooden Case
• Specification：SUS304
• Trademark：Wanyuan
• Origin：Wenzhou China
• HS Code：8479819000
• Production Capacity：5000

Basic Info.

Model NO. 300L Material SUS304 Layer Number Single-Layer Thickness 3mm Manhole with Discharge at The Bottom Transport Package Wooden Case Specification SUS304 Trademark Wanyuan Origin Wenzhou China HS Code 8479819000 Production Capacity 5000

Product Description

300L Juice Storage Tank/ Buffer tank

Specifications

1.Stainless steel Storage tank/vessel/ Buffer tank
2.Excellent Sealing 3.Bear High temperature and Pressure 4. Easy Clean 5. GMP Standard

1. Storage tank Applications:
foods, dairy products , fruit juice beverages , pharmacy, chemical industry and biological engineering etc. Used as disinfection tank, liquid composing tank, temporary storage  tank and liquid blending tank etc.


2. Storage tank Specification & Discription
1) Tank volume: 200-5000L
2) Dimension: Diameter and height according to the requirements
3) Material: Stainless Steel (304 or 316L)
4) Tank shell thickness: 2mm or more (according to the design or customer required)
5) Pressure (MPa): Atmospheric pressure-Middle pressure (According to the Chinese Design standard)
6) Function: Storage
7) Design temperature C-degree: -5-80
8) Medium: Various drinks including wine, beer, fruit wine, fruit juice and so on.
9) Tank surface: Mirror polished or Matt polished
10) Operation plate form: We can design the plate form if required.
11) Mixing: Top side or bottom mixing.
12) General accessories(If required): Manhole, CIP, respirator, sight glass, mixing
13) Manufacture standard: Chinese Pressure Vessel Design and Making Standard
14) Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arcwelder and auto polishing machinery and cooperating with international famous finished.

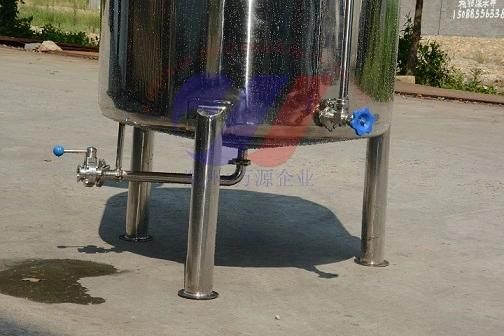

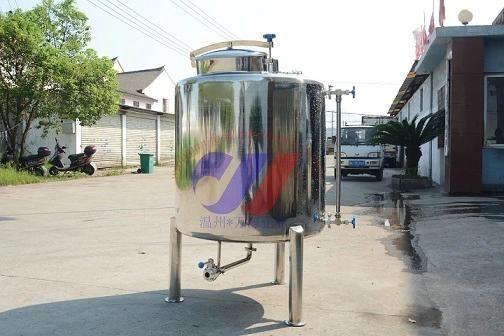

3. Storage tank picture:
