• Model NO.：DR-TYJ-II
• Transport Package：Wooden Case
• Specification：250kgs,hour
• Trademark：D&R
• Origin：China
• HS Code：8438200000
• Production Capacity：300PCS,Year

Basic Info.

Model NO. DR-TYJ-II Transport Package Wooden Case Specification 250kgs/hour Trademark D&R Origin China HS Code 8438200000 Production Capacity 300PCS/Year

Product Description

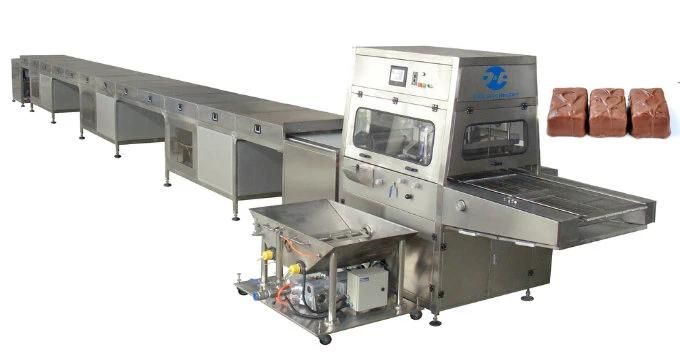

Belt Chocolate Coating Machine
This machine is advanced equipment for chocolate coating, especially for chocolate bean, melon, nuts, dry fruit and so on.  The machine is automatically controlled by the PLC program, installed with a system of recipe save and automatic weighing.  The flow of chocolate mass, the capacity of cold wind, the speed of mesh belt moving are adjustable


1. process time: 40-50min/batch, humidity of air should be 45-55% (The process time is based on the material of coating layer and products which need to coat, the temperature of air and humidity inside of the machine.).The weight of coated products is about 250kgs.
2. Capacity

A. Peanuts        120kgs/ batch,  coating time:40-50 minutes
B. Raisin          120kgs/batch,    coating time:60 minutes
C. Almond         80kgs/ batch,    coating time:60 minutes
3. Size: 2200*1550*2030mm.
Characteristic

1. Stainless steel structure for wash easily.
2. Full automatic and exact chocolate coating metering valve.
3. Jacket chocolate sprinkler system with tip cleaner to make sure the nozzles will not be blocked.
4. There are lights in the machine.
5. Convenient and detachable system for recovery of scrap material.
6. There are four legs with the automatic weighing system(loadcell).
7. There is a chocolate mass adjustment valve to control the flow rate of chocolate mass.
8. Power of the main motor is 3KW. There are a 50L hot water tank and a water pump for the insulation system of the coating machine. Most of the parts including the frame, cover and the parts which contact with products(except plastic conveyor belt) are ss304.
9. Electric components are Siemens or Schneider brand. Control system is the Delta brand(PLC).Chinese brand motor with gearbox. The pneumatic system is Airtac.
10. It should work with one 500L chocolate storage tank, one chocolate feeding pump(speed adjustable), hot water tank, jacket pipes and hot water tank.


Working condition:
1. Electricity: 380V.
2. Temperature 26ºC, relative humidity 45-55%.
3. Recycle hot water with temperature 40ºC-50ºC.
4. Supply of cold wind

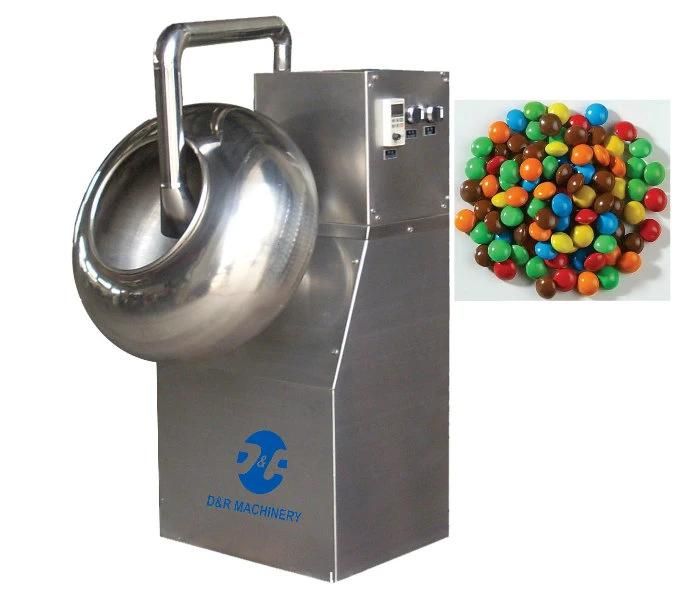

Detailed Images:

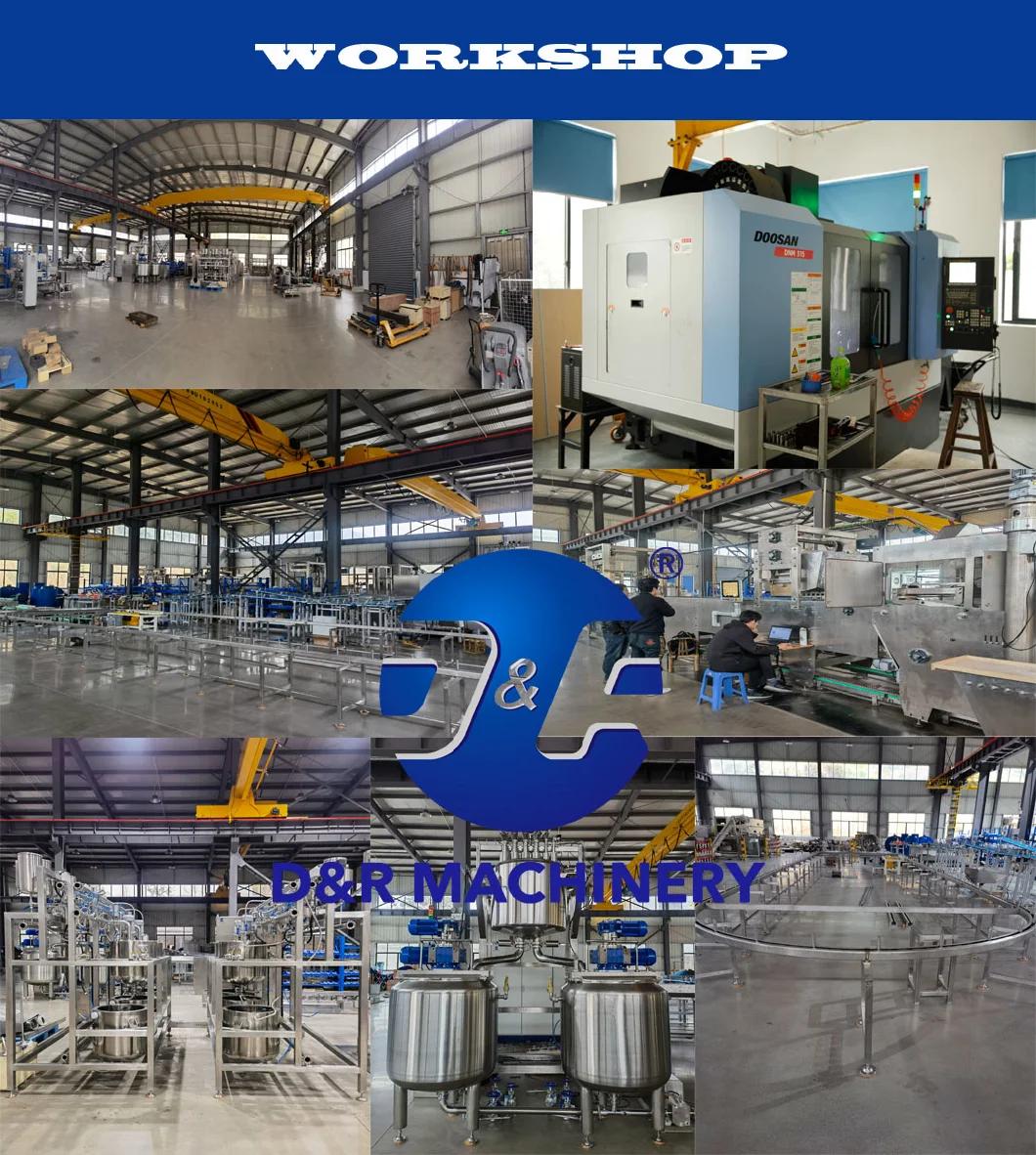

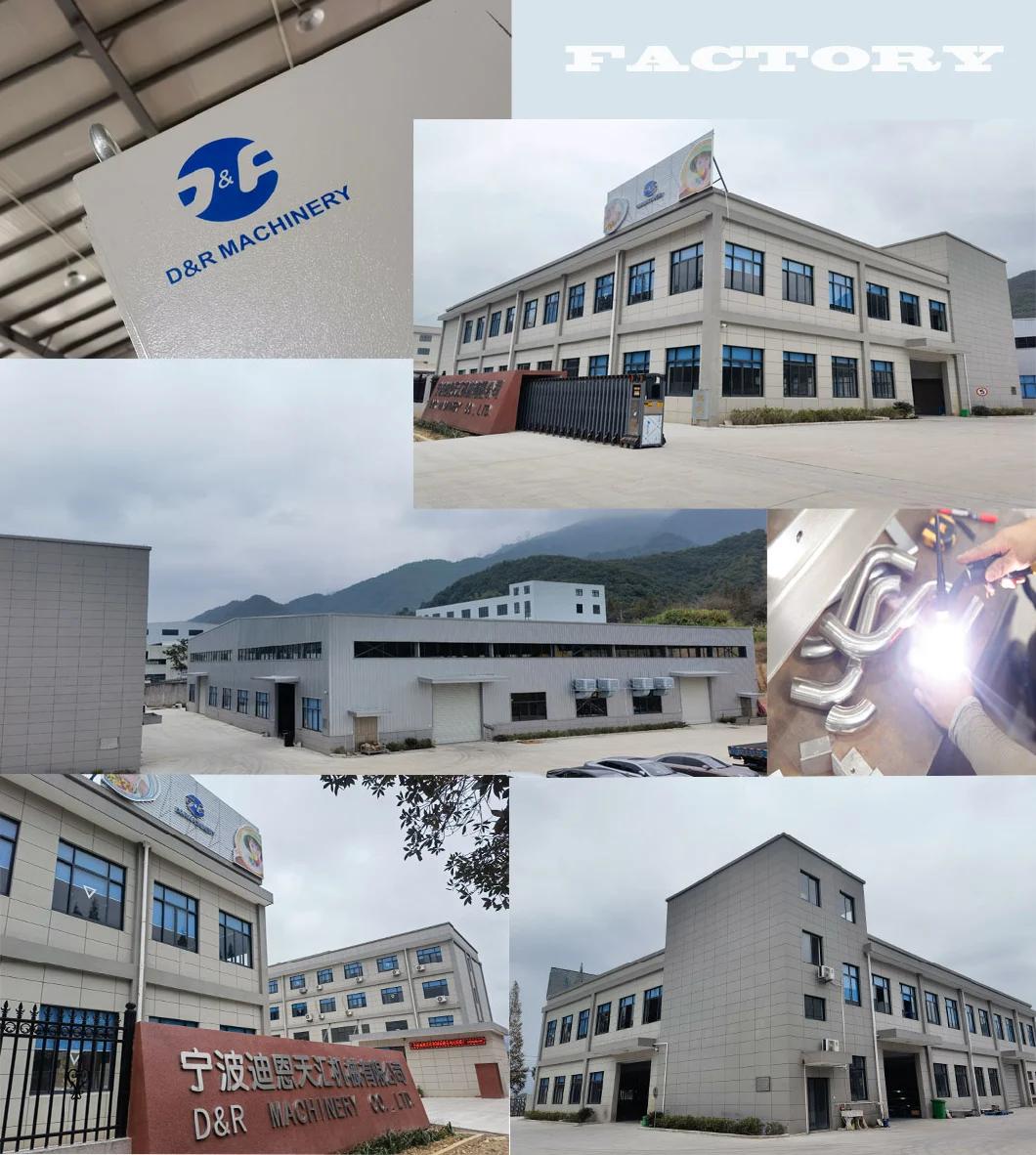

Company Introduction:
