• Model NO.：MG
• Processing Material：Milk,Juice
• Process：Ferment
• Material：Stainless Steel
• Capacity：50-60000L
• Transport Package：Wooden Case
• Trademark：UNIMACH
• Origin：China
• Production Capacity：200sets,Year
• Package size per unit product：1.00cm * 0.85cm * 1.30cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. MG Processing Material Milk,Juice Process Ferment Material Stainless Steel Capacity 50-60000L Transport Package Wooden Case Trademark UNIMACH Origin China Production Capacity 200sets/Year

Packaging & Delivery

Package size per unit product 1.00cm * 0.85cm * 1.30cm Gross weight per unit product 1000.000kg

Product Description

Application and description:

This machine is used for mixing power and liquid material. It is suitable for industries such as pharmaceutical, food, beverage, juice, chemical, pesticide and etc.

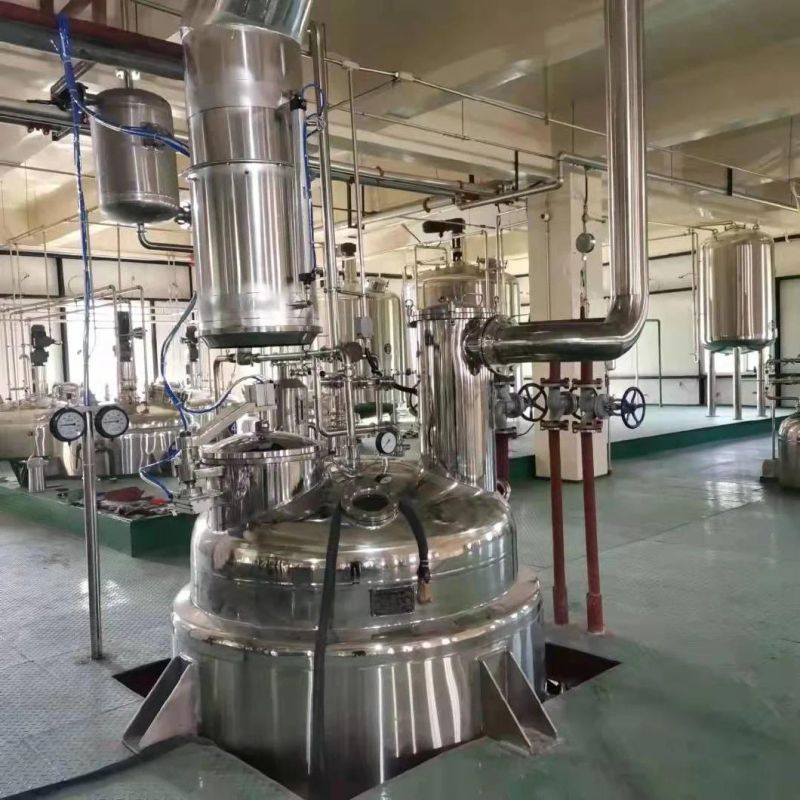

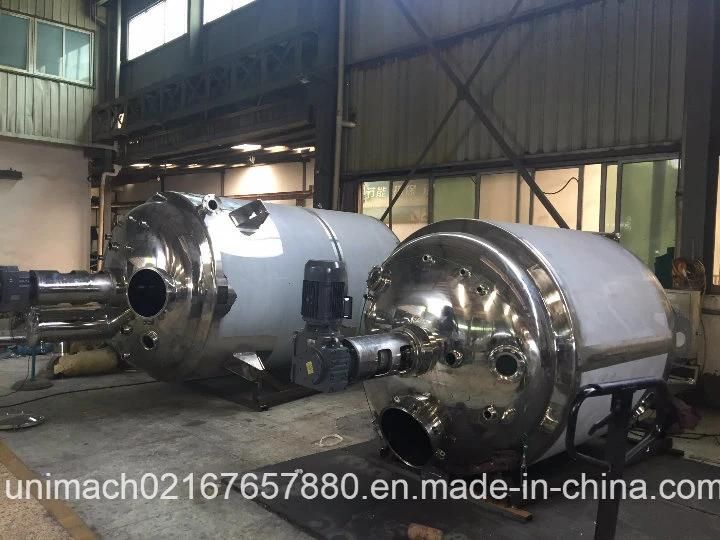

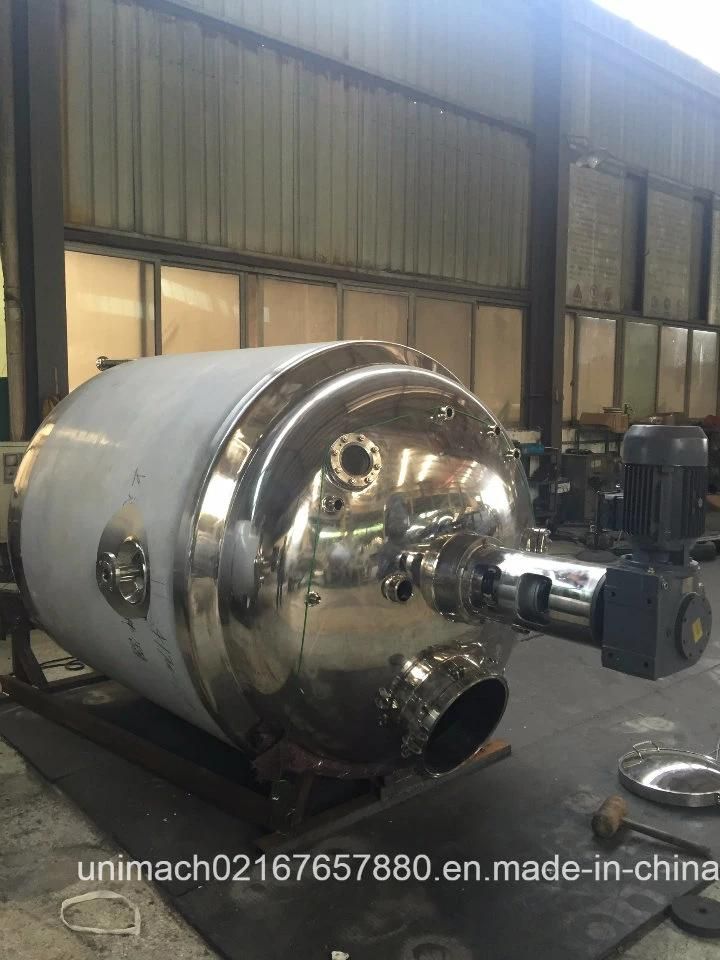

We provide various mixing kettle with cover, with full range from lab use to production use. It can be customized designed and manufactured to meet different mixing production requirements. Mixing tank consists of components such as tank body, tank cover, jacket, agitator, driving device, shaft sealing device, support etc...
Regular agitators: Anchor type, impeller type, turbine type, propeller type or frame type etc.

Structure characteristics:

(1)The tanks are manufactured completely according to JB/4735-1997,
(2)Adopts high quality imported SUS304 or SUS316L,
(3)Tank inside adopts mechnical Polish with high smooth finish.
(4)The end of plate and connection joint adopts round transition, without dead angle, easy to clean.
(5)Adopts polyurethane foam to keep warm with good effect
(6)The plate jacket is fixed inside.
(7)Different CIP cleaning tips agitators, and asepsis breathing mouth can be fixed under order.

Advantage:
(1)Out surface: Mirror polishing/2B original sub-gloss/2B frosted sub-gloss
(2)Inner surface: Mirror polishing, rough<0.4um
(3)Heating: Electric elements heating or steam heating
(4)Accessories: Aoir respirator, themometer, CIP cleaning mouth, viewing mirror ect.

Max work pressure inside tank	0.09Mpa
Max work tempearure inside tank	100degree
Max work pressure of jacket	0.3Mpa
Max work temperature of jacket	130degres
Material	SUS304&SUS316L
Volumn	50-60000L
Temperaure holding material	PU bubbing
Agitating form	nchor type, impeller type, turbine type,  propeller type or frame type
Holding method	Hold holding
