• Model NO.：KQ
• Name：Plate Pasteurizer Uht Plasteurizer Juice Pasteuriz
• Material：Food Grade Stainless Steel 304 , 316
• Function：Heat and Pasteurize Milk, Cool Down Milk
• Plate Heat Exchanger Processing Capacity：500lph to 50000lph
• Treatment：Inside Mirror and Outside Polished
• Gasket：Silicon, PTFE
• Industry：Food, Pharmacy, Beverage, Juice, Milk
• Sanitary Plate Heat Exchanger：Mirror Polish, Sub-Light.
• Delivery：10 Days
• Certificate：Ce ISO
• Motor Brand：Siemens ,ABB ,China Brand
• Transport Package：Standard Wooden Box
• Specification：ISO
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. KQ Name Plate Pasteurizer Uht Plasteurizer Juice Pasteuriz Material Food Grade Stainless Steel 304 / 316 Function Heat and Pasteurize Milk, Cool Down Milk Plate Heat Exchanger Processing Capacity 500lph to 50000lph Treatment Inside Mirror and Outside Polished Gasket Silicon, PTFE Industry Food, Pharmacy, Beverage, Juice, Milk Sanitary Plate Heat Exchanger Mirror Polish, Sub-Light. Delivery 10 Days Certificate Ce ISO Motor Brand Siemens /ABB /China Brand Transport Package Standard Wooden Box Specification ISO Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 50 PCS/Month

Product Description

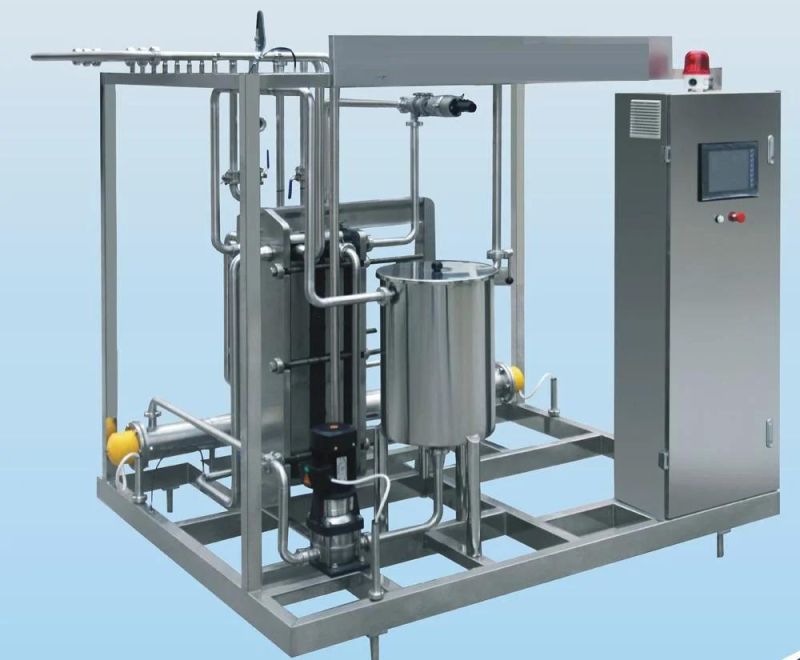

Plate Pasteurizer Uht Plasteurizer Juice Pasteurizer Yogurt Pasteurizer Factory
Plate Heat Exchanger Manufacture

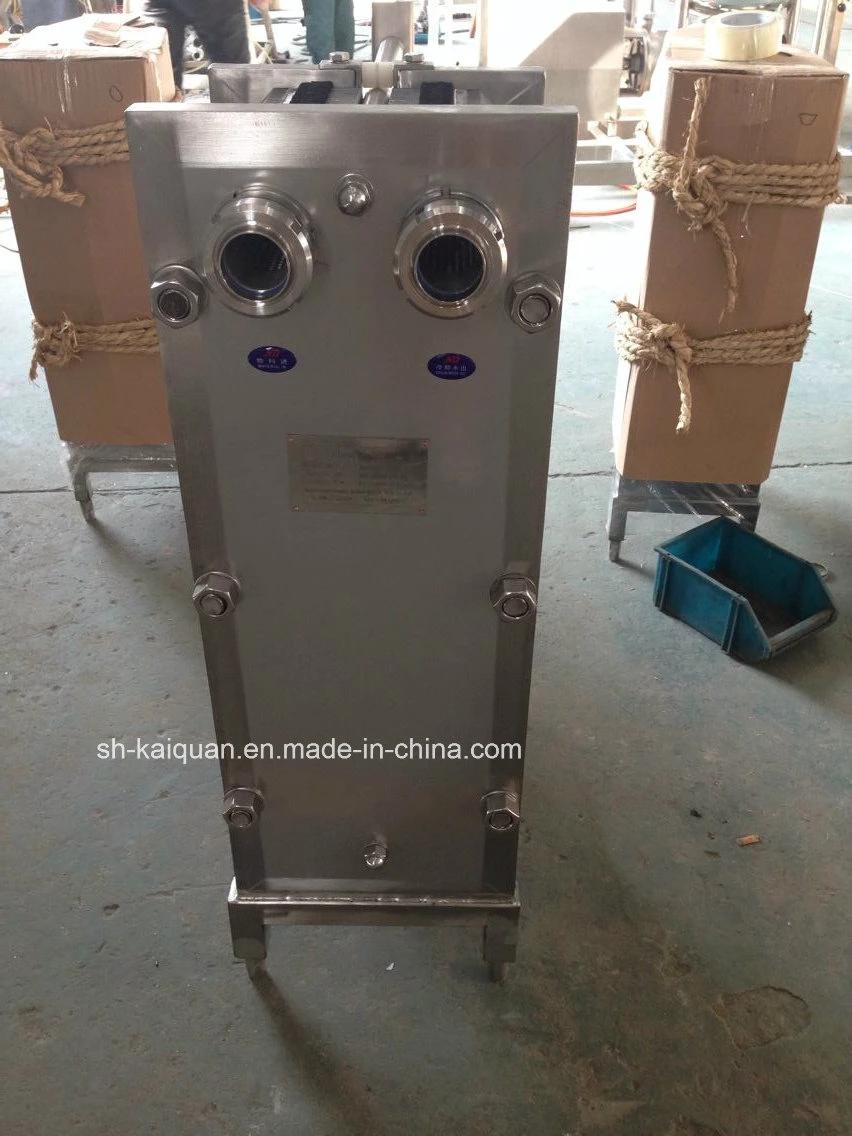

Sanitary Stainless Steel PHE Plate heat exchanger
anitary Milk Plate Pasteurizer Plate Heat Exchanger Cooler Plate and Frame heat exchangers consist of a number of specially corrugated stainless steel plates assembled in a frame and bolted between two pressure plates, one of which is fixed and the other adjustable.

Turbulence is created in the liquid flow channels, giving very high heat transfer coefficients and resulting in a compact, efficient heat exchanger.
Plate and Frame heat exchangers provide highly efficient thermal performance.

Corrugated plates induce extremely turbulent flow, resulting in maximum rates of heat transfer and minimized fouling. Multiple corrugation patterns allow optimization to meet specific thermal and hydraulic requirements.

Plate and Frame heat exchangers are also extremely space-efficient, easy to maintain, and can be inspected and cleaned without removing the plates from the frame.

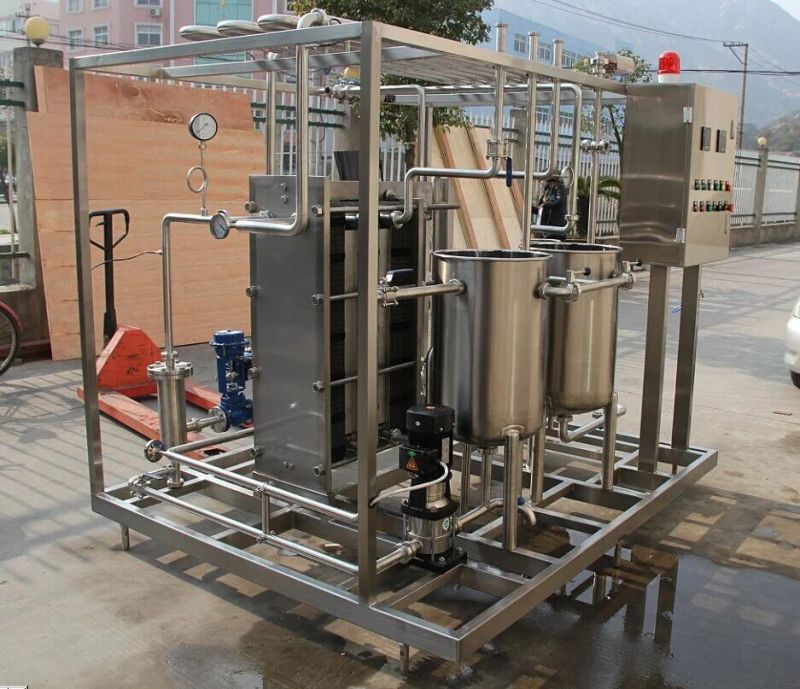

Plate Pasteurizer UHT Plasteurizer Juice Pasteurizer Yogurt Pasteurizer Factory

EFFECTIVE VOLUME(L)	DIMENSION OF TANK(MM*MM)	TOTAL HEIGHT	Heat  presevation  layer(MM)	Motor  power(MM)	Blending  speed(R/MIN)
1000	1060*1220	2950	60	7.5	1750
2000	1340*1500	3400	60	11	1750
3000	1410*2000	3900	60	15	1750
4000	1620*2000	4030	60	18.5	1750
5000	1810*2000	4130	60	22	1750

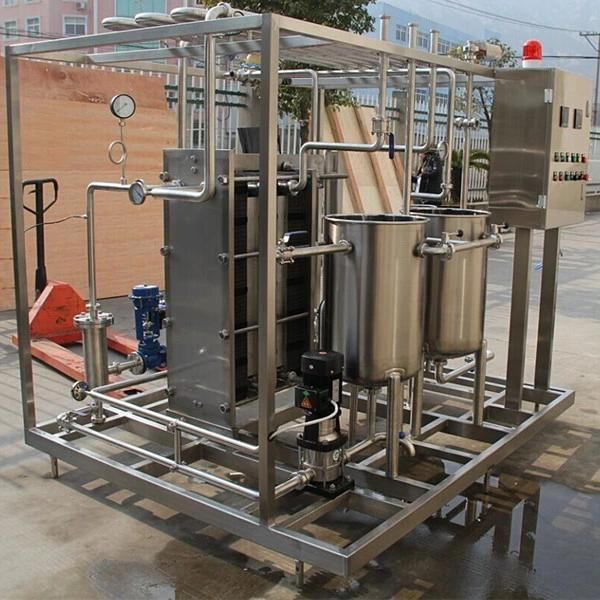

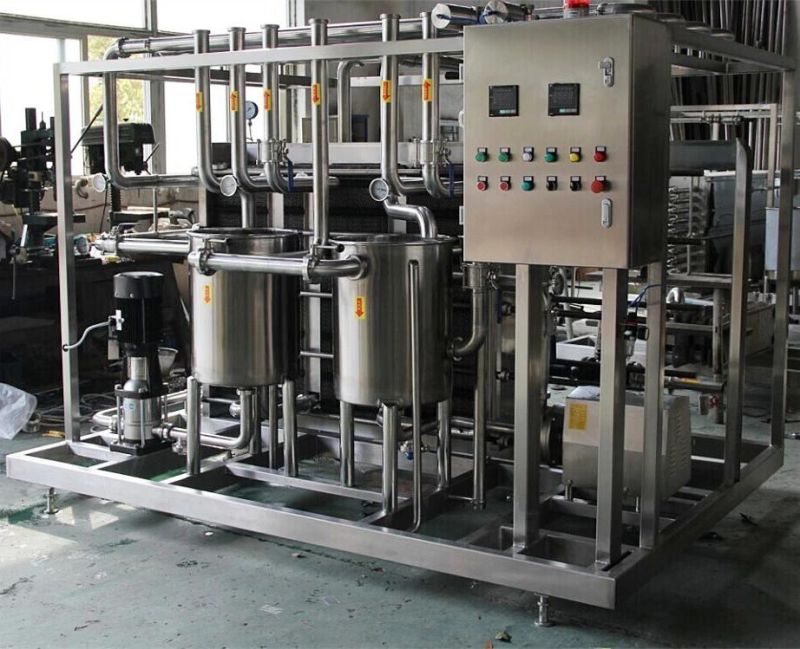

The system adopts HTST processing method, makes liquid dairy products, plant protein milk, juice beverage, tea and other liquid ect. strictly sterilized, then into aseptic package, with the sterilization temperature:80c,warm keeping time:4-25S,so finally keep the original nutrition , color and flavor of the beverage and dairy. Quality guarantee period:6-12 months, The machine has the advantage of high heat recycle,compact and fine structure, and temperature control. Outputting material temperature, and cool package

Production Capacity: 300L/H  to 5000LPH

Inlet Temperature:18 to 20ºC (adjustable)

Outlet Temperature: 4 to 20ºC(adjustable)

Pasteurizing Temperature:80°C(adjustable); time: 20seconds customized

All can adjust as customer requirement

Size: 1600×1800×1600 mm;

WEIGHT: 800KGS to 2000KGS

Material: SS304,  Flat bar material:SS316

 Main Fittings:

1)    3 stages plate heat exchanger,2)    Semi-Automatic Siemens PLC control,

3)    Pumps,4)    balance barrels ,5)    heating water system,6)    Temperature Controlling and record device, with a insulation tank, electric elements of controlling system

Plate Pasteurizer Uht Plasteurizer Juice Pasteurizer Yogurt Pasteurizer Factory .
