• Model NO.：QCJ-400
• Name：Chocolate Bean Forming Machine
• Model：Qcj 400
• Roller Width：400mm
• Capacity：100~150 Kg,Hour
• Total Power：25kw
• Roller Speed：0.3-1.5 R,Min
• Surface Temp. of Cooling Roller：-20
• Cooling Tunnel Temp.：0-5
• Warranty：1 Year
• Raw Material：Stainless Steel
• Transport Package：Wooden Box
• Specification：customized
• Trademark：Gusu
• Origin：Suzhou
• HS Code：8438200000
• Production Capacity：Customized

Basic Info.

Model NO. QCJ-400 Name Chocolate Bean Forming Machine Model Qcj 400 Roller Width 400mm Capacity 100~150 Kg/Hour Total Power 25kw Roller Speed 0.3-1.5 R/Min Surface Temp. of Cooling Roller -20 Cooling Tunnel Temp. 0-5 Warranty 1 Year Raw Material Stainless Steel Transport Package Wooden Box Specification customized Trademark Gusu Origin Suzhou HS Code 8438200000 Production Capacity Customized

Product Description

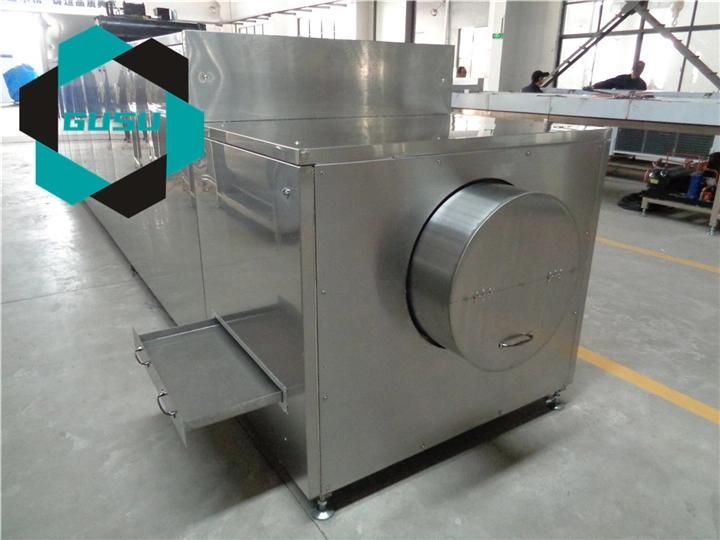

Gusu chocolate making equipment chocolate bean forming machine (QCJ400)Gusu Chocolate Bean Roller Former machine is specially used for cold rolling to produce different shapes of pure chocolate such as ball shape, ellipse shape, bean shape and a variety of other shapes with simple operation, hygienic and safe.

Technical Parameter

Model	QCJ 400	QCJ600
Roller Width(mm)	400	600
Production Capacity (kg/h)	100-150	150-250
Roller Speed (r/min)	0.3-1.5	0.3-1.5
Surface Temp. of Cooling Roller(ºC)	About -20	About -20
Cooling Tunnel Temp. (ºC)	0-5	0-5
Cooling Time (min)	18-30	18-30
Cooling Box Refrigeration Output(W/h)	8260	12390
Evaporation Temp. (ºC)	-35	-35
Condensation Temp. (ºC)	30	30
Total Power(KW)	25	30
Overall Size(mm)	8620*1040*2100	8620*1480*2100

 Company Information

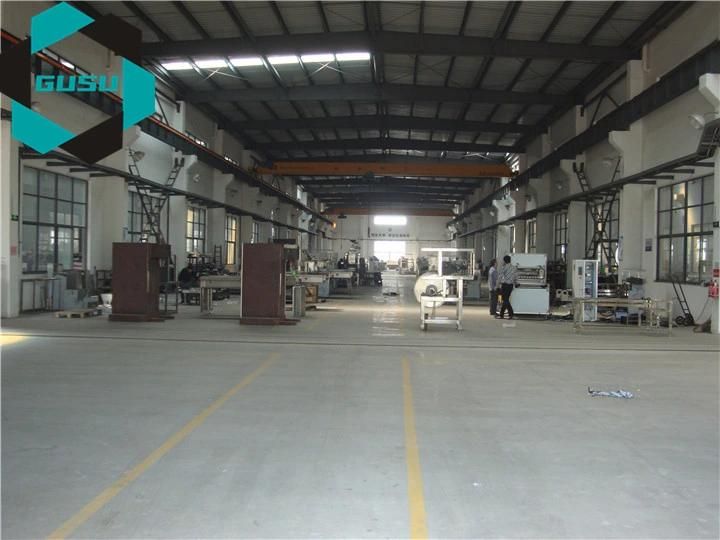

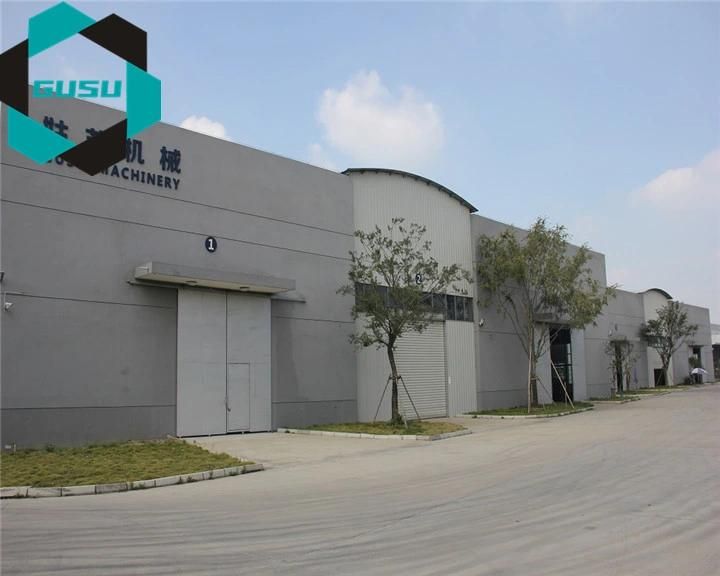

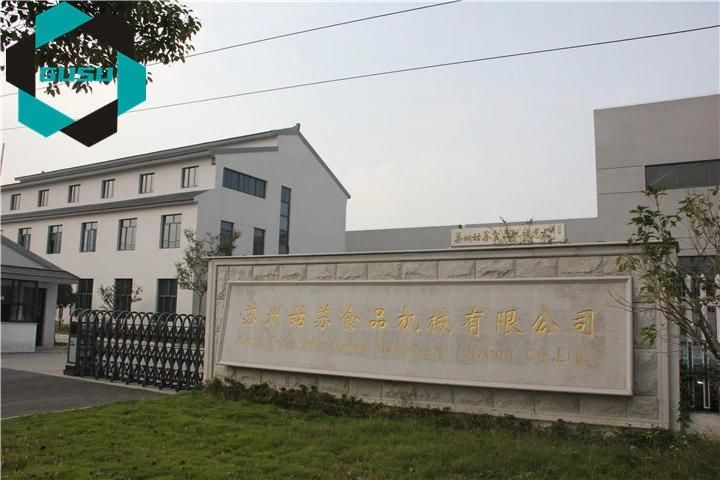

Gusu Food Processing Machinery Suzhou Co.,Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored in this industry as "the Mother of Chocolate in China".






 FAQ

1 How to Order

1. Customer send us an inquiry.

2. Confirmmachine type, order quantity, price, lead time, payment term etc.

3.Our sales send the Proforma Invoice with company seal.

4. Customer make the payment for deposit and send us Bank receipt.

5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time

6. Production products photos will send to you for approval.

7. Clients make payment for balance and Ship the goods .

8. Order is finished when you receive the goods and satisfy with them .

9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better



2 About after-sell service

Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .



3 About goods shipping

We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.



4 About our online Service

24 hours online to solve any problem .

Your email will be reply within 12 hours .

Your satisfy is our pursuit .sincerely hope our cooperation
