• Model NO.：KH 400-600
• Capacity：80-150kg,H
• Labour：2-3
• Raw Material：SUS304
• Motor：Siemens
• Business Type：Manufacturer
• Usage：Extruding Type Marshmallow;Filled Marshmallow
• Warranty：One Year for Free
• After Sale Service：Engineers Available to Service Machinery Overseas
• Working Type：Continuous
• Candy Shapes：Various
• Transport Package：Wooden Case by Sea
• Specification：KH-400
• Trademark：Kuihong
• Origin：China
• HS Code：8438200000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. KH 400-600 Capacity 80-150kg/H Labour 2-3 Raw Material SUS304 Motor Siemens Business Type Manufacturer Usage Extruding Type Marshmallow;Filled Marshmallow Warranty One Year for Free After Sale Service Engineers Available to Service Machinery Overseas Working Type Continuous Candy Shapes Various Transport Package Wooden Case by Sea Specification KH-400 Trademark Kuihong Origin China HS Code 8438200000 Production Capacity 100 Sets/Year

Product Description

1.KH-400 CE approved full automatic cotton candy machine description

PROCEDURE:

1) In the pre-mixer, all the ingredients to be dissolved and cooked.

2) Then the basic slurry is continuously pumped to a cooker till the final moisture level is reached.

3) After cooking, the slurry will be cooled and mixed with a separate whipping agent solution.

4) Then the cooled "marshmallow base" is passed through the continuous aerator.

5) The product then be divided and injection with different colors and flavors.

6) The multi-color product is extruded ,and transported on a cooling conveyor for cooling down;

7) The conditioned marshmallows are dusted top and bottom with starch, or a mixture of both starch and icing sugar in a separate dust cabin; the product is cut to the required length here.

8) The dust cabin is kept under a strict control to prevent the "dust" spreading throughout the plant. The excess starch/sugar is removed.

9) The final is transferred to a packaging place.

2.KH-400 full automatic cotton candy machine main parameters

Model	KH-400	KH-600
Output	50-80kg	80-100kg
Steam consumption	250kg/h	250kg/h
Steam pressure	0.2-0.6Mpa	0.2-0.6Mpa
Power	30KW/380V	35KW/380V
Compressed air pressure	0.6-0.8Mpa	0.6-0.8Mpa
Indoor temperature	20-25 degree	20-25 degree
Indoor humidity	55%	55%
Machine weight	8000kg	8000kg
Total length	35M	35M
Weight perpiece	3-10g	3-10g
Product diameter	20-50mm	20-50mm

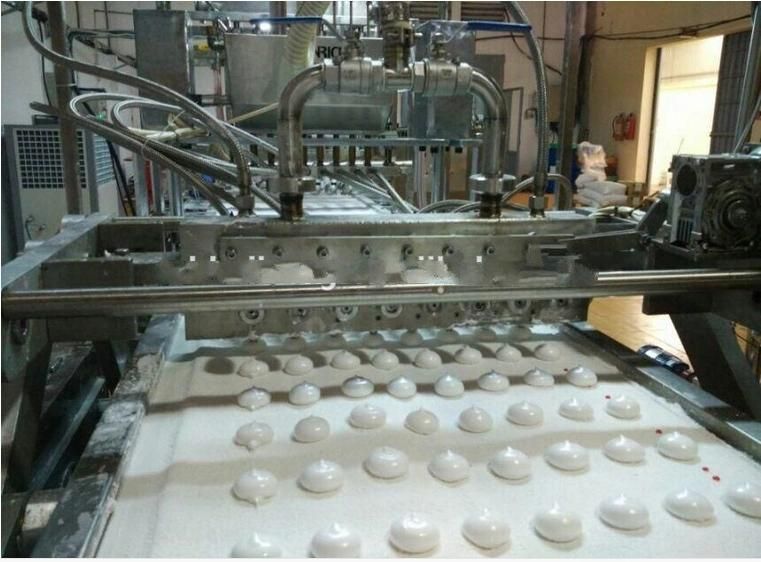

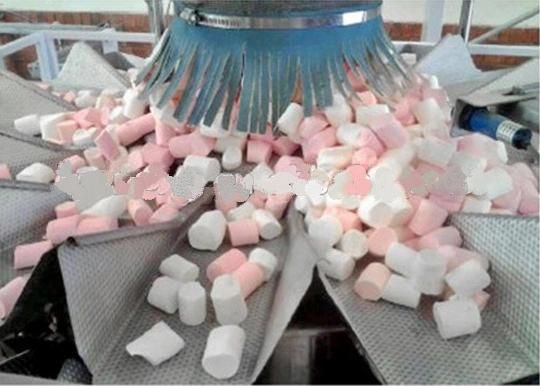

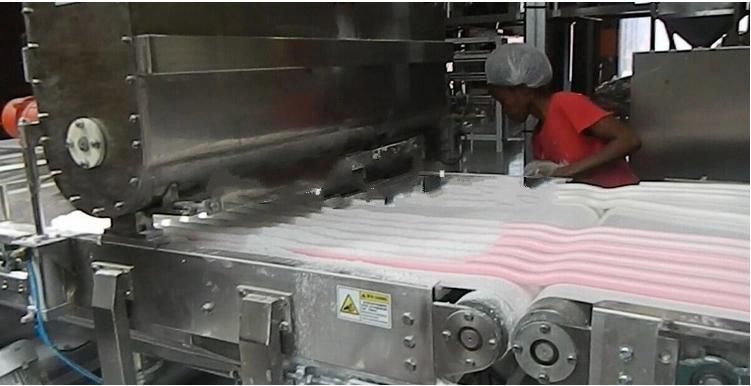

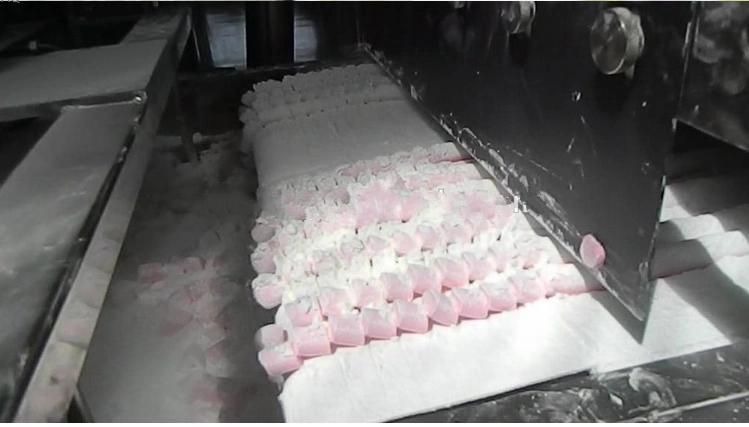

3.KH-400 full automatic cotton candy machine part photo


4.Hot sale full automatic cotton candy machine finished sample



5.Our packing and shipping


6.Our service

1.Testing & training

The plant layout design, assembling and installation, start-up and local team training will be free at no cost. But the buyer should be responsible for the round-air tickets, local transportation, board & lodging, and US$40/day per person for the pocket money to our technicians. The testing people will be two persons, and will cost 30days.

 2.Utilities

The buyer should prepare sufficient electric power, water, steam and compressed air supplies which are suitable to be connected to our machinery before the arrival of our machinery.

 3.Warranty

The seller guarantees the quality of the products for 12months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery; the seller will replace the parts or send the technicians to go to the buyer's site for repairing and maintenance for FREE. If the defaults are aroused by the defaulted operations of the buyer, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.

7.Contact us and get your inquiry Now !

As the direct factory, KH is always trying the best to improve our technology and service, we will also give you the best factory price as we could!

Kuihong food machine will give you warm welcome to visit our factory !
Contact sales---Amanda
Mobile :0086 18221489541
