High Capacity Spices Blender Machine with Ribbon Type Paddle
Jiang Yin Jun Lang Machinery Co., Ltd.- Control Type：Semi Automatic
- Voltage：According to Request
- Customized：Customized
- Machine Materials：Stainless Steel
- Transport Package：Export Wooden Case
- Specification：ISO CE
Base Info
- Model NO.：WLDH1000
- Trademark：Jun Lang
- Origin：Jiang Yin
- HS Code：8479820090
- Production Capacity：30stes,Year
Description
Basic Info.
Model NO. WLDH1000 Trademark Jun Lang Origin Jiang Yin HS Code 8479820090 Production Capacity 30stes/YearProduct Description
Main Application:This is a horizontal ribbon type paddle mixing machine is a pioneer product researched and a new high-efficiency mixer. It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.Working principle:
This series blender is mainly comprised of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Technical Parameters:
| Model | Barrel Volume(L) | Loading Volume(L) | Mixing Time(min) | Stir Motor(kw) | Weight(kg) |
| WLDH-100 | 100 | 30-60 | 8-20 | 1.5-4 | 320 |
| WLDH-300 | 300 | 100-180 | 8-20 | 3-5.5 | 510 |
| WLDH-500 | 500 | 200-300 | 8-20 | 4-11 | 920 |
| WLDH-1000 | 1000 | 400-600 | 8-20 | 7.5-15 | 1450 |
| WLDH-1500 | 1500 | 600-900 | 8-20 | 11-18.5 | 1950 |
| WLDH-2000 | 2000 | 800-1200 | 8-20 | 18.5-30 | 3160 |
| WLDH-3000 | 3000 | 1200-1800 | 8-20 | 18.5-30 | 3300 |
| WLDH-4000 | 4000 | 1600-2400 | 8-20 | 22-37 | 3620 |
Our Advantage:

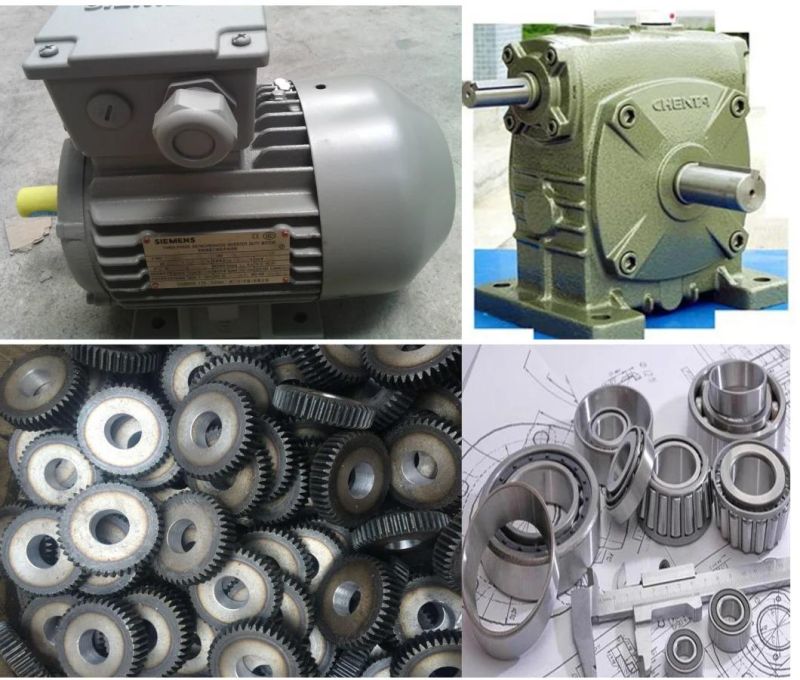

1. Reliable And High Quality Drive System

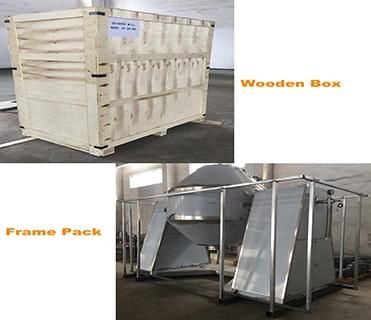

2.Professional And Strong Packing

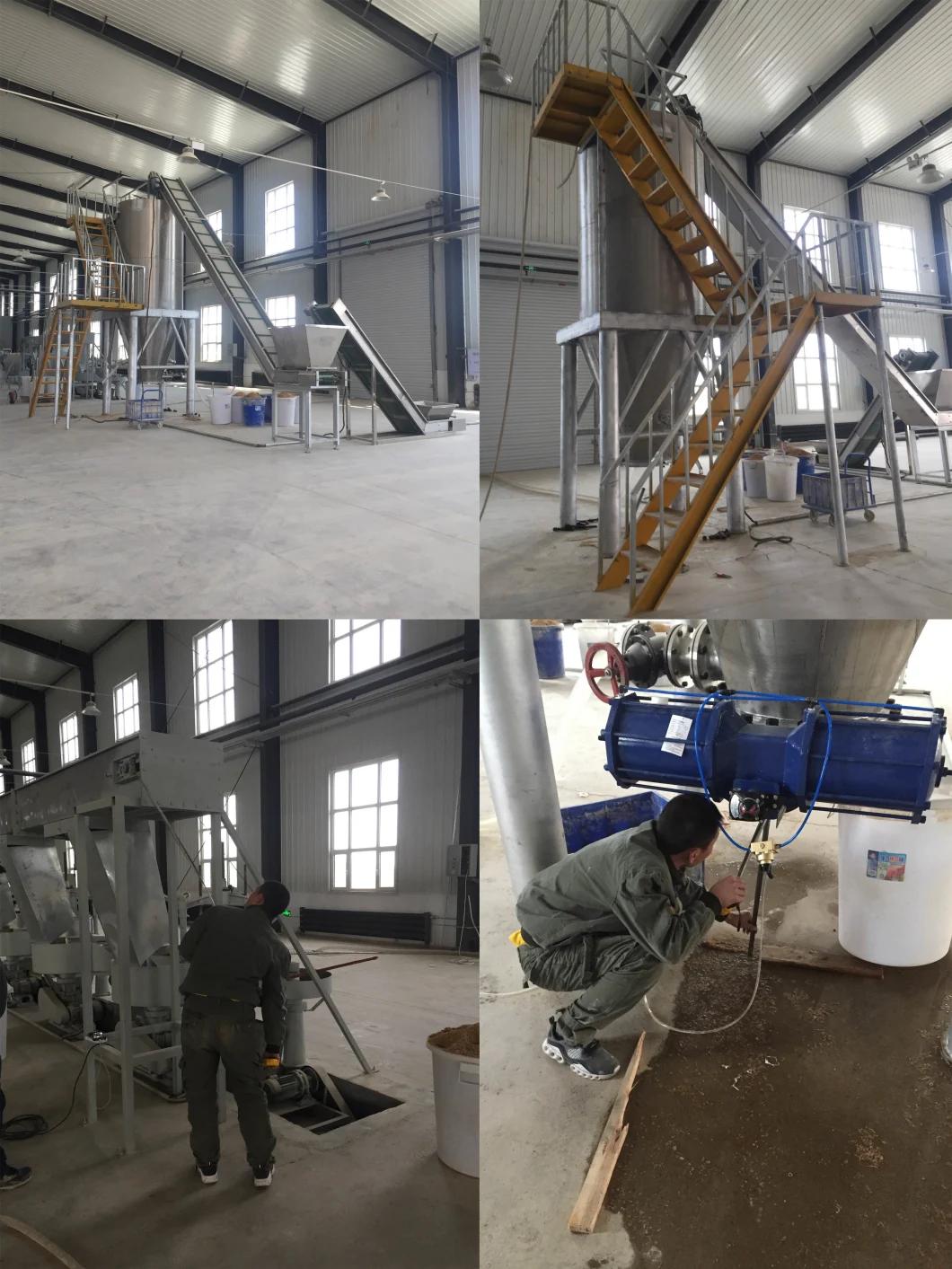

3.Good After-Service
4.Sale Network And Exhibition
