• Model NO.：WY

Basic Info.

Model NO. WY

Product Description

Full-Automatic CIP Cleaning Machine
CIP Cleaning SystemApplication: Beverage plant, dairy plant, pharmaceutical plantCapacity: 1T/h~ 10T/hType: Combine type, separate type

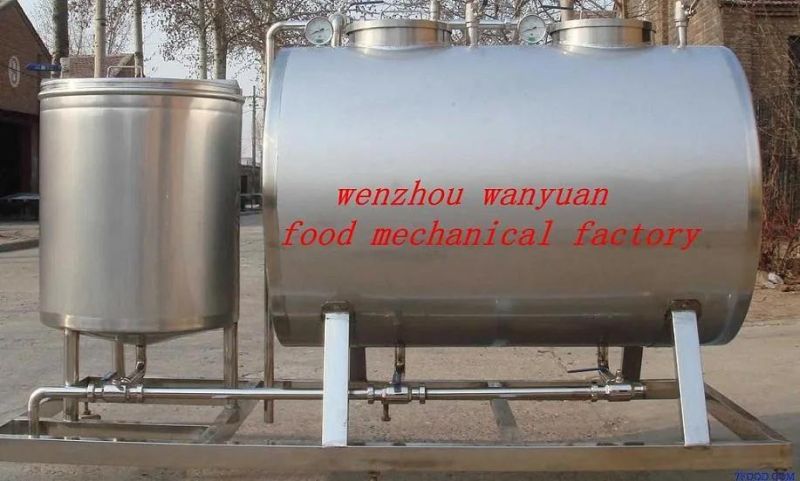

Picture of CIP Cleaning System

Full-Automatic CIP Cleaning MachineCIP (Cleaning-In-Place) is a system designed for automatic cleaning by recirculation detergent and rinse solutions without major disassembly and assembly work.
 The CIP Cleaning System can be designed to clean one part of the plant while other areas continue to produce product. The Clean-In-Place Systems provide reservoirs for detergent and rinse solutions as well as pumping and heating capabilities for the solutions.
 Computer control handles the programs sequences of washing and rinsing steps. The washing process consists of several cycles in which rinsing material is recycled through the vessels, pumps, valves and other process equipment in the flow system.
 The cleaning can be carried out with automated or manual systems is a reliable process that meets the stringent hygiene regulations demanded by the food, dairy, beverage, biotechnology and pharmaceutical industries etc.
 CIP Cleaning System has such advantages as energy-saving, high efficiency, operator safety and easy to operate and maintain.Support for design, installion, after-sale service.
Cleaning Procedures
Take the beverage industry as example, the procedure is as follows:
1.3-5 minutes, room temperature or above 60 Celsius degree hot water; Caustic 10-20minutes, 1%-2% solution, 60-80 Celsius degree; Intermediate washing 5-10 minutes, water below 60 Celsius degree
 Final washing 3-5 minutes, pure water.
2.3-5 minutes, room temperature or above 60 Celsius degree hot water; Caustic 5-10minutes, 1%-2% solution, 60-80 Celsius degree; Intermediate washing 5-10 minutes, water below 60 Celsius degree
Sterilization 10-20 minutes, hot water above 90 Celsius degree.
Cleaning fluid ensures cleaning effect, resulting in some mechanical action. That is, by increasing the turbulence of the fluid to increase the impact, to achieve a certain cleaning effect.
Full-Automatic CIP Cleaning Machine


Processing:	Washer,online Cleaning the beverage line	Condition:	New	Place of Origin:	JiangsuChina (Mainland)
Brand Name:	WANYUAN	Model Number:	WYCIP-1000	Voltage:	380
Weight:	1500kg	Dimension(L*W*H):	2200*1400*1650mm	Processing Types:	Juice, carbonated beverage machine
Certification:	CE,BV,SGS,UL	Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas
Machine name:	electric cip cleaning system	Material:	SUS304,SUS316	Feature:	Automatic, high quality
Control:	Button
