• Model NO.：TQSX22
• Customized：Customized
• Screen Size：250*480mm
• Fan Speed：1665r,Min
• Frequency：465times,Min
• N.W/G.W：50kg,63kg
• Packing Size：770*520*710mm
• Color：White or Green or Yellow
• Usage：Rice and Bean Cleaning
• Drive：Drive by Electro-Motor
• Transport Package：Seaworthy Case
• Specification：770*520*710mm
• Trademark：ACME
• Origin：Hubei, China
• HS Code：84379000
• Production Capacity：100units,Month

Basic Info.

Model NO. TQSX22 Customized Customized Screen Size 250*480mm Fan Speed 1665r/Min Frequency 465times/Min N.W/G.W 50kg/63kg Packing Size 770*520*710mm Color White or Green or Yellow Usage Rice and Bean Cleaning Drive Drive by Electro-Motor Transport Package Seaworthy Case Specification 770*520*710mm Trademark ACME Origin Hubei, China HS Code 84379000 Production Capacity 100units/Month

Product Description

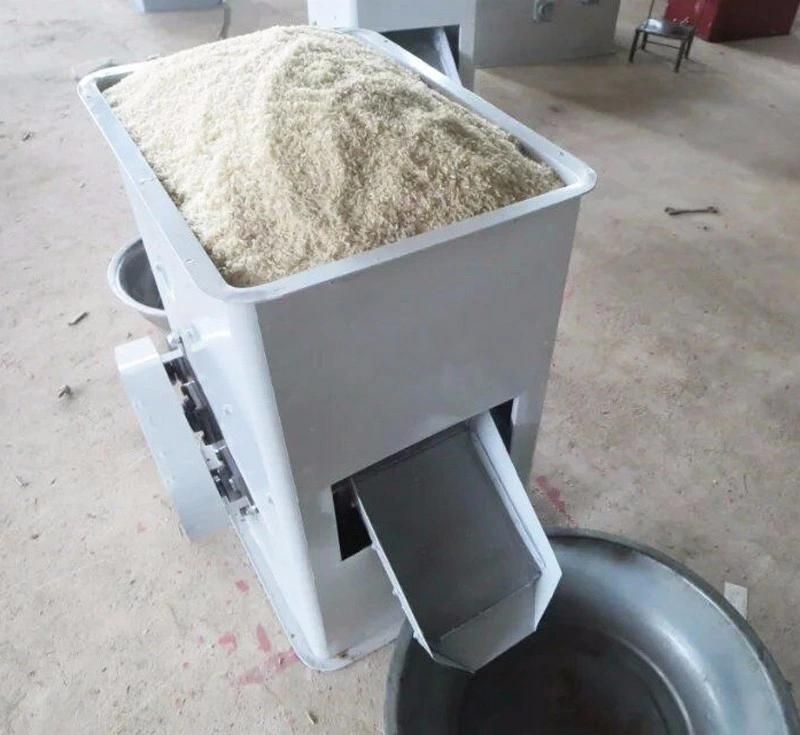

Small Grain Screening Machinery

Product Description

This rice destoner machine is mainly used for food process business enterprise and farmers , according to material weight and size difference to remove remove the stone, sand, pebble ,clod from white rice , paddy, wheat ,corn ,sesame etc.



Technical Data

Model	TQSX22A	TQSX22B	TQSX28	TQSX45
Capacity	400kg/h	500kg/h	1000kg/h	2000kg/h
Power	250W	370W	370W	450W
Screen Size	230*450mm	250*480mm	640*320mm	700*450mm
Fan Speed	1665R/min	1665R/min	1400R/min	1300R/min
Frequency	465times/min	465times/min	465times/min	465times/min
Voltage	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
N.W/G.W	45kg/58kg	50kg/63kg	65kg/85kg	105kg/130kg
Overall dimension	670*480*630mm	680*500*695mm	830*590*760mm	950*720*820mm
Packing Size	770*520*710mm	770*520*710mm	930*630*780mm	960*750*830mm
