• Model NO.：VS80
• Condition：New
• Customized：Non-Customized
• Model：Vs80
• Pattern：Vertical
• Capacity：3.5-4.5t,H
• Power：45kw Electric Motor
• Motor：380V 50Hz Single Phase
• Air Volume：40-50m3,H
• Size：1442*1545*2085mm
• Cyclone：800mm
• Function：Rice Milling
• Industry：Industrial Use
• Transport Package：Wood Case
• Specification：1442*1545*2085mm
• Trademark：NO
• Origin：China
• HS Code：87000
• Production Capacity：50000

Basic Info.

Model NO. VS80 Condition New Customized Non-Customized Model Vs80 Pattern Vertical Capacity 3.5-4.5t/H Power 45kw Electric Motor Motor 380V 50Hz Single Phase Air Volume 40-50m3/H Size 1442*1545*2085mm Cyclone 800mm Function Rice Milling Industry Industrial Use Transport Package Wood Case Specification 1442*1545*2085mm Trademark NO Origin China HS Code 87000 Production Capacity 50000

Product Description

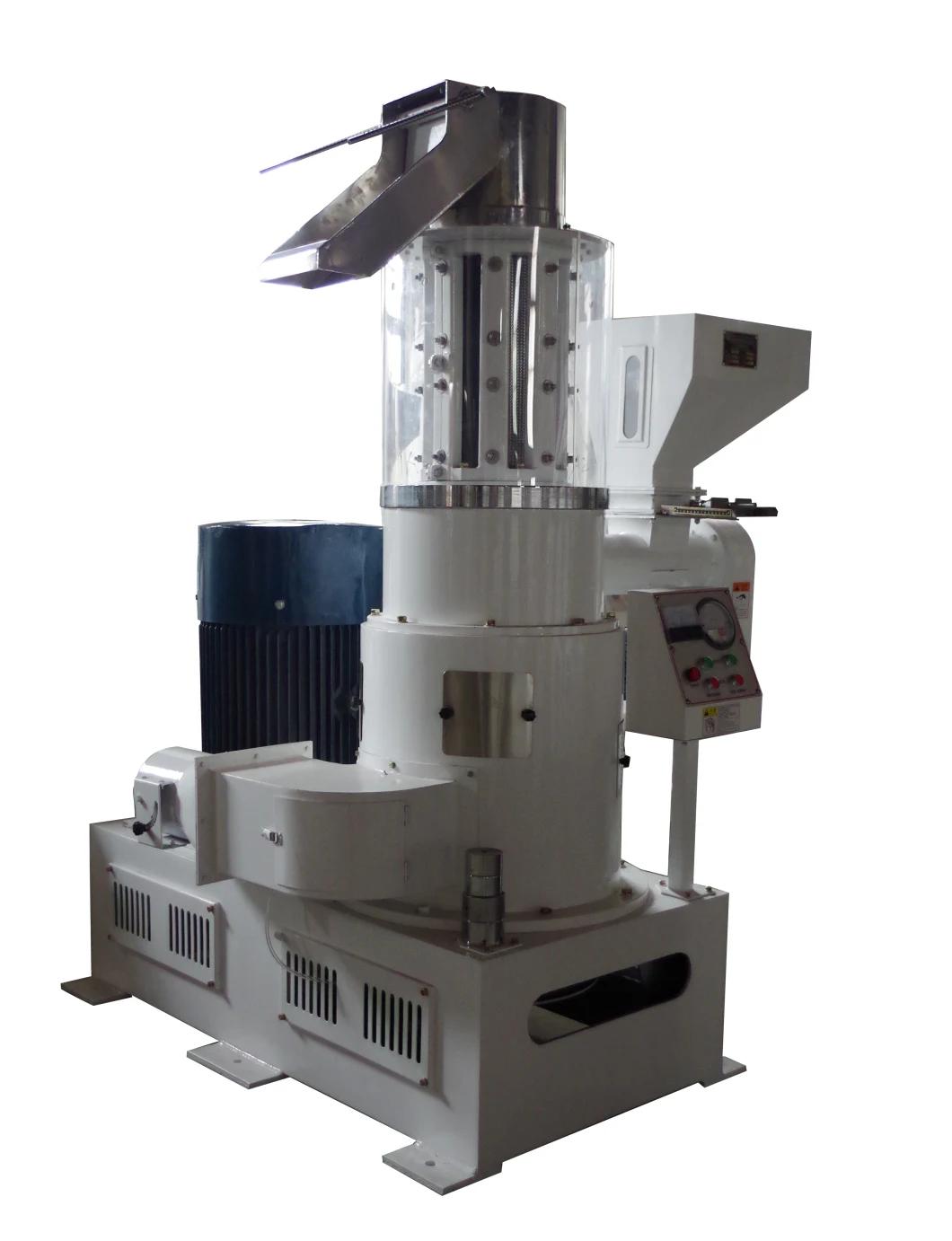

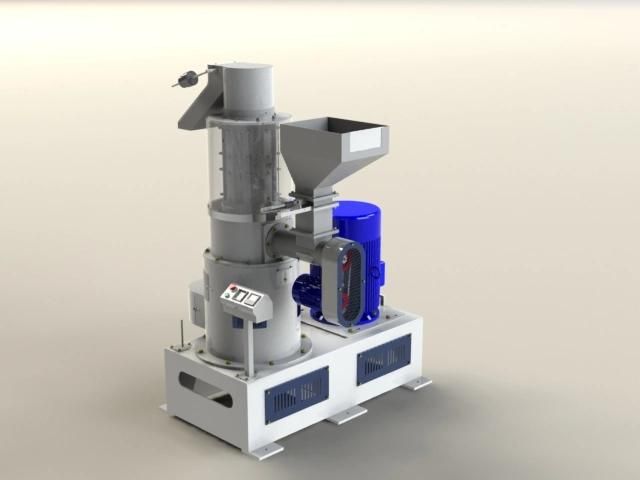

Whole Set Combined Vertical Grinding Roller Rice Mill
Introduction

1. The compact structure of the machine, small occupation, feeding mouth can be 360 degrees of rotation, more flexible process layout.
   2. The special structure of rice milling chamber is embedded with yarn around the whitening roller and screen, which can effectively remove the surface epidermis of rice, increase the yield and reduce the crushing.
   3. stainless steel materials and special heat treatment roller to extend service life.
   4.The yarn can be adjusted, so it is far beyond the normal vertical sand roller for the service life of sand disk.

Specification

Model	VS80
capacity	3.5-4.5ton/hour
Power	45kw 380v 50hz three phase power
Air volume	40-50M3/h
Size	1442*1545*2085mm
cyclone	800mm
