• Transport Package：Standard Export Package
• Specification：CE
• Trademark：GY
• Origin：Shanghai China
• Production Capacity：200kg-10000kg,H

MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
electron pound scale
maximum weighing 500KG
milk weighing tank
made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball
milk acceptor
SUS304 stainless steel,single layer,CIP cleaning ball
milk pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
twin piping filter
SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
dish separator
auto residue discharge
chiling tank
SUS304 stainless steel,alveolate jacket,attached with compressor
milk pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
PREPARING UNIT
blending tank
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
milk pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
mini set of plate-type heat exchanger
SUS304 stainless steel,two stages,
high speed emulsification tank
SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet
milk pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
twin piping filter
SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
sterilizing,homogenizing unit
UHT sterilizer
tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control
high pressure homogenizer
40MPa,(starting box included)
temperature holding
SUS304,holding 300S
distributing plate
SUS304,3 holes
cheesebutter processing unit
bufferying tank
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
milk pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
cream seperator

bufferying container
SUS304,with cover
milk pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
butter-churner
SUS304,stepless timing
cheese vat
SUS304,with heating jacket and insising device
pressor
SUS304,6 heads
mould
SUS304,10L,with cover
yogurt fermentation unit
fermentation tank
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
rotary pump
SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
plate cooler
SUS304,single stage,milk discharge at 4C
rotary pump
SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
filling unit
higher position tank
SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
pasteurized milk filling machine

yogurt filling machine

CIP system
semi-auto CIP system
outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks
CIP return pump
SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
 installation part
whole milk processing line installation and commissioning

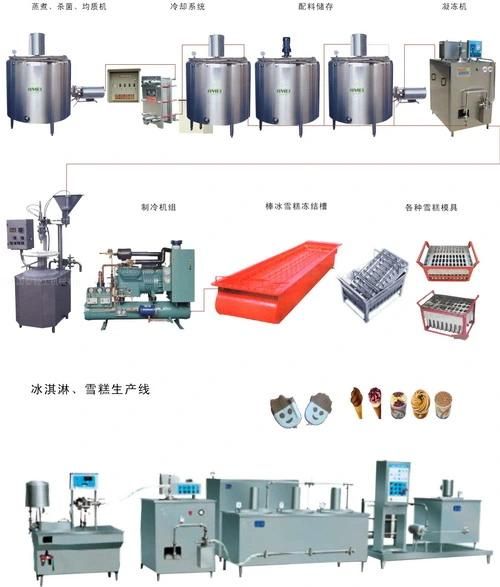

 as the manufacture,ice-Cream Processing Line are products of a new generation which,by majorization,continuously accomplish mixing material,disinfection,even quality,cooling,aging,congealment,filling and hardening.
so our poduction line can realize the changes of many varieties only by replacing its feeding head.It can produce cup ice cream, stick ice cream,chocolate-coated ice cream,kernel ice cream and ice sucker, milk popsicle ect.





Model list


Model	Input Voltage	Power	Output	Water Consumption	Expanding Rate	origin
GY-200	380V/50Hz	30Kw	200kg/h	6T Circulating Water	90-100%	china
GY-300	380V/50HZ	35	300KG/H	8T Circulating Water	90-100%	china
GY-10000	380V/50Hz	46Kw	1000kg/h	10Circulating Water	90-100%	china
