• Model NO.：FM-400
• Model Number：FM-400
• Transport Package：Standard Export Wooden Box Packaging
• Specification：1880mm*780mm*1720mm
• Trademark：Sanyuantang
• Origin：Xinxaing, Henan
• HS Code：419899090
• Production Capacity：1.2-1.5t,H, 0.4-0.5t,H

Model

FM-600

FM-400

Production capacity

1.2-1.5t/8h

0.4-0.5t/8h

Machine dimension

1750*600*1660mm

1600*500*1555mm

Tank diameter

600mm

400mm

Tank height

600mm

600mm

The overall volume

140L

70L

Effective volume

120L

60L

Power

16KW

14KW

Process of honey processing machine:

The original honey  → Coarse filtration → Agitation, preheating → Fine filtration → Low temperature, concentrated → Filling

Principle of honey processing machine:

By the theory that under high Vacuum condition,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey,this set can melt honey crystals, remove dust inside, sterilization, and ext to guarantee quality of honey

Features of honey processing machine:

1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

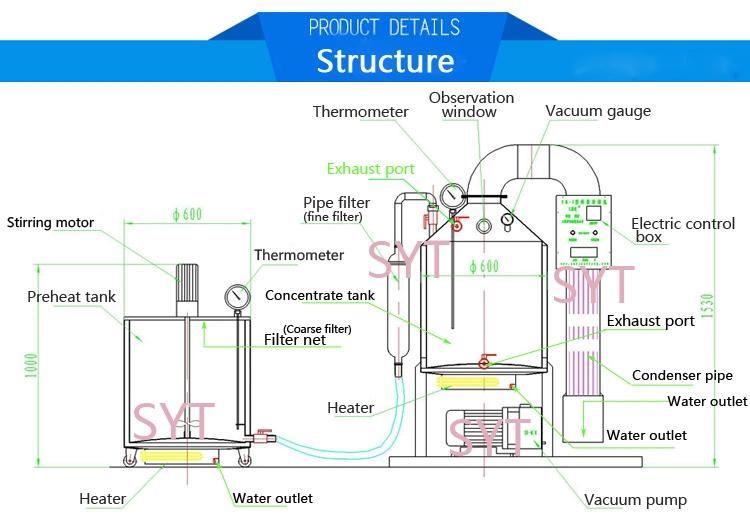

Structural drawing of honey processing machine:

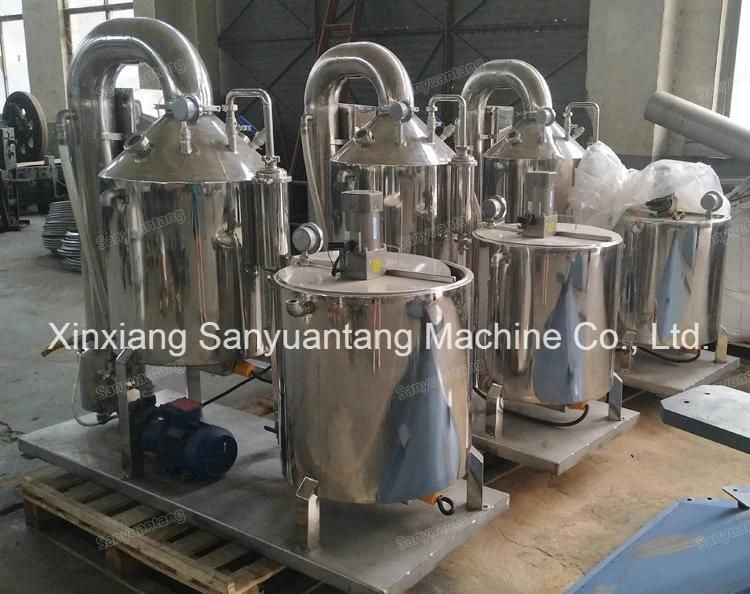

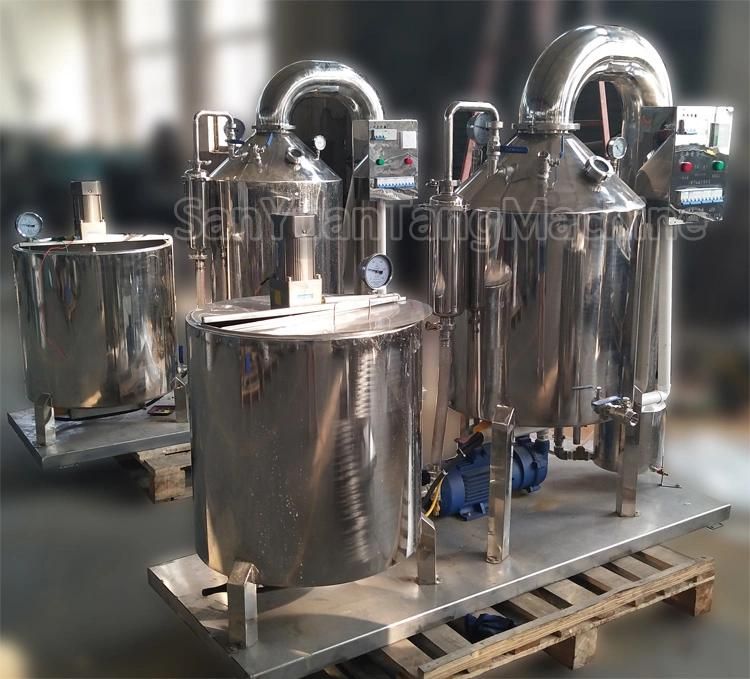

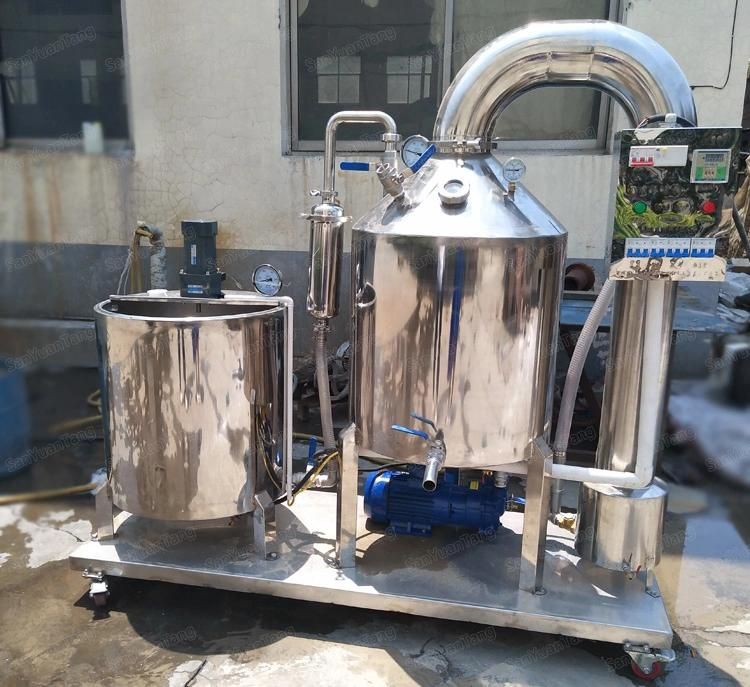

Actual pictures of honey processing machine:





If you want to know more about honey processing machine, please contact me.
