• Model NO.：GJB2500-100
• Model：Gjb2500-100
• Material：Stainless Steel 304
• Pressure：100MPa
• Rated Flow：2500L,H
• Power：75kw
• Weight：3800kg
• Voltage：380V, 50Hz, 3phase
• Factory：Yes
• Transport Package：Plywood Case
• Specification：250x120x110cm
• Trademark：CHANGGUAN
• Origin：Changzhou
• HS Code：8479820090
• Production Capacity：300sets,Year

NameLarge, 2500L/H, gigh pressure, milk, liquid homogenizerModelGJB2500-100Materialstainless steel 304Pressure100MpaRated flow2500L/HPower75KWVoltage380V, 50Hz, 3phaseSize250x120x110cmWeight3800kgPackagePlywood caseApplicationmilk, milk powder, yogurt, cheese, ice creamCertificationCE,   ISO9001PortShanghaiPaymentT/T
Features

This machine are features with good design,convenient operation and simple maintenance,and safety.
1)Low noise:Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2)Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
3)Sealing material can work under less than 150ºC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
4)Lubrication of  homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later

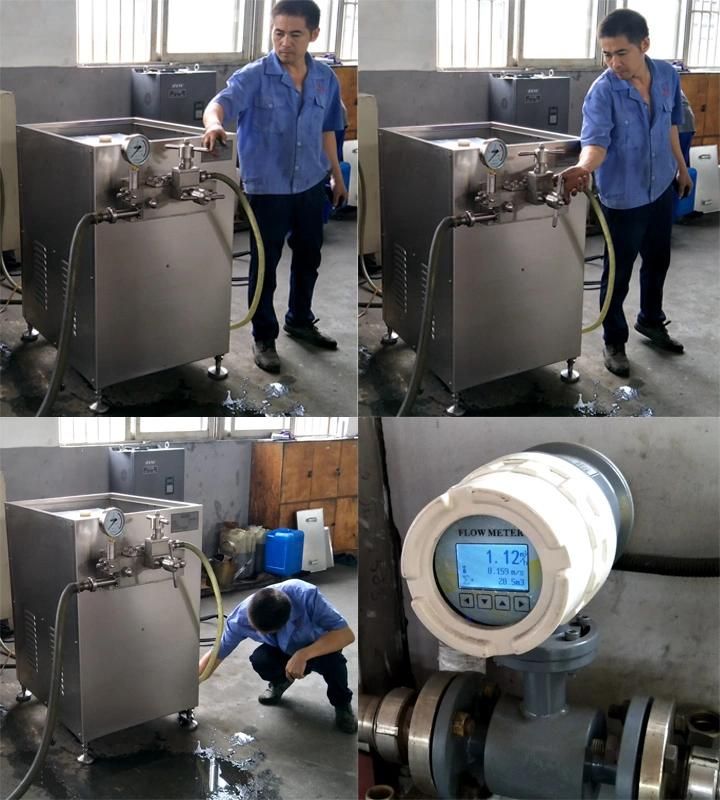

Test



Certification


Delievery&Package
Producting Perfect Products, Serving Customers Satisfactory.
