1000L Beer Fermenter Beer Brewing System
Shandong Zunhuang Brewing Equipment Co., Ltd.- Condition：New
- Customized：Customized
- Voltage：380V
- Composition：SS304
- Processing Material：SS304
- Process：Beer
Base Info
- Model NO.：ZH-1000L
- Product Name：Beer Brewing System
- Produce：Beer
- Material：SUS304, 316L Plate, Red Copper
- Warmly Material：PU Form, Rock Wall
- Material Thicknesss：2mm or 3mm
- Pressure：0.15-0.2MPa.
- Brewing Method：Steam Bun or Electrical Heating
- Transport Package：Wooden
- Specification：500L
- Trademark：ZH
- Origin：China
- Production Capacity：1000L
Description
System list
Equipment
500L
Mashing system
Mash /Lauter tun
500L
Lauter/Kettle tun
500L
Fermenting system
Fermentation tank
1000L or 500L / 6-8pcs
Yeast tank
5L
Bright beer tank (optional)
1000L
Cooling system
Ice water tank
1000L
Cooling machine
5HP
Ice water pump
5m3/h
CIP system
Washing tank
100L / 2pcs
Pump
3m3/h
Control system
PCL style control cabinet (200*700*400)
Comment: All components & parameters can be customized according your requests.
Fermenter system
1.The inner of the fermentation tank are adopted 304 stainless steel. Use polyurethane to keep warm. The outside scarfskin is according to the customer's requirement.You can choose stainless steel polishing, carbon steel, spray finishing and so on.
2.Adopted the international standard of fermentation technology, diverse methods to control the temperature. The inner surface of the tank is mirror-polished. The standard is≤0.8um ≤0.6um ≤0.2um. Completely meet the demand of PLC and sterilize system.
3.The cooling jacket can achieve all countries' standard, supply Miller, arch, corrugated plate and so on. Meet all kinds of demand of cooling technology of coolant and pressure.
Control system
Control system is the core part in the whole beer production line, including: malt mash, mash, fermenting, cooling, temperature control, pressure control and other auxiliary. It can achieve the part control or whole PLC automatic control.
Control system adopt beer PLC controls system and smart controls system, which were research and development by our company.
Certificate

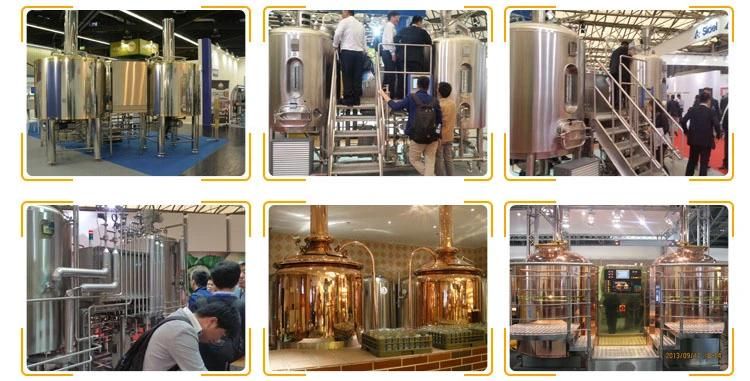

EXHIBITION
Brewery case
