• Model NO.：KQ Series
• Name：2000L 3000L 5000L Stainless Steel Cooling Milk Chi
• Milk Tank Material：Sanitary Stainless Steel 304 , 316
• Function：Cooling and Storage Fresh Milk
• Refrigerant：R404A ,R22
• Compressor：USA Copeland
• Capacity：300litres to 10000litres
• PU Insulation Wall Thickness：70mm
• Outside Shape：Vertical and Horinzontal
• Voltage ,Hz ,Phase：Make It to Your Order
• Mixer：Equiped
• Packing：Wooden Box
• Delivery：10-15 Days After Get Your Advance
• Working Life：More Than 10 Years
• Motor Brand：ABB,China Brand ,Siemens
• MOQ：1set
• Transport Package：Standard
• Specification：ISO
• Trademark：KQ
• Origin：China
• HS Code：841869909
• Production Capacity：1000

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T1.8T2.05TCusotmized milk cooling and storage tanks
Customized electricity,, capacity .


Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk quality

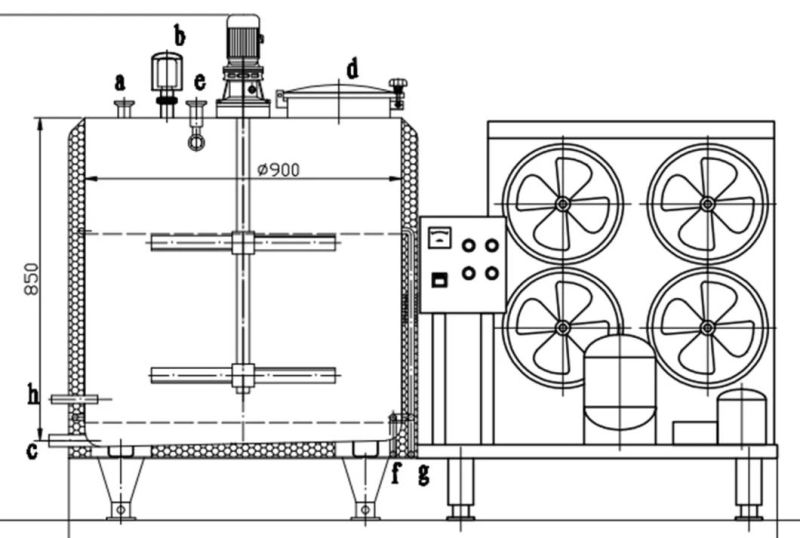

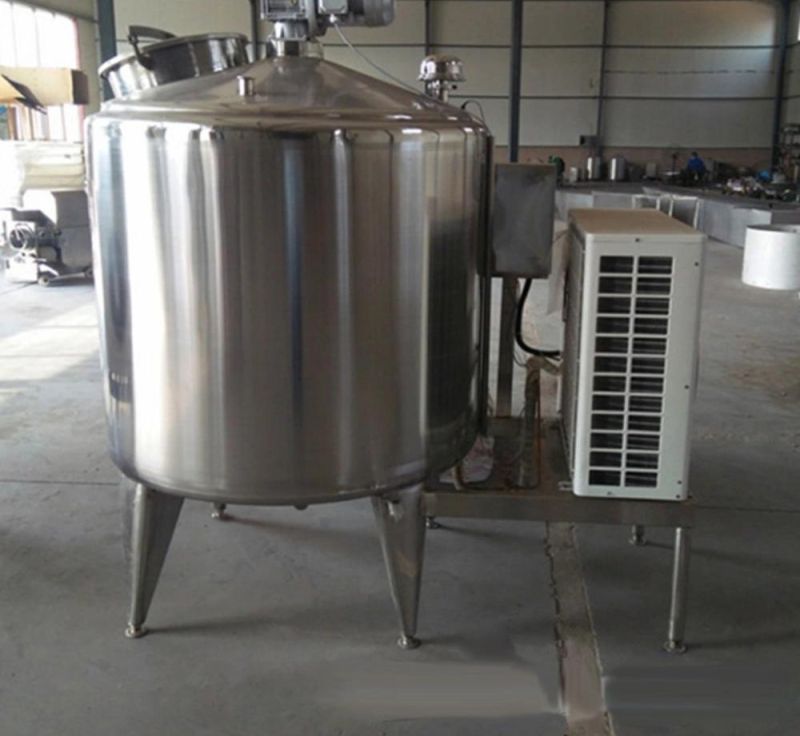

SS304 MILK COOLING TANK
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water .





Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device .
2000L 3000L 5000L Stainless Steel Cooling Milk Chiller Price .
