• Model NO.：RPS-C40
• Specification：45*22*27
• Trademark：RPS-sonic
• Origin：China
• HS Code：8515900090
• Production Capacity：1000

MachineUltrasonic rubber/cake CutterFrequency(KHz)20KhzPower1000 WCutting Blade / HornTitaniumVoltage(V)220VThe width of bladedepend on your requirementCutting thickness10~20mm(depend on materials)Horn amplitude10-40μmEquipment weight8KG

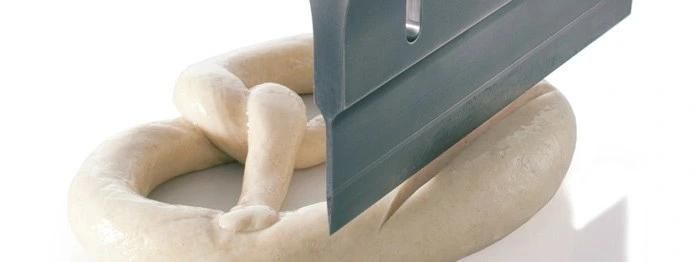

1. Ultrasonic processing is an efficient way to cut, slice, divert, align or transfer a variety of products.

It involves a vibrating blade producing a nearly frictionless surface with the influence of ultrasonic which does

not deform products and to which they do not stick. The vibrating frictionless blade cuts or slits products

cleanly such as nuts, raisins, dried fruit or chocolate morsels without displacement or plowing.



2.Ultrasonic vibration reduces friction resistance between the blade and mterial, and it makes the blade cut

smoothly without deformation.The cutting blade is made of titanium (or the material according to your requir

-ement ). It is completely inert and enduring material.



2.The use of ultrasonic cutting , incision aesthetic integrity, trimming neatly smooth, without Burr, to leave the

border areas, not black, not burned, not the hardware products to feel very good shear results

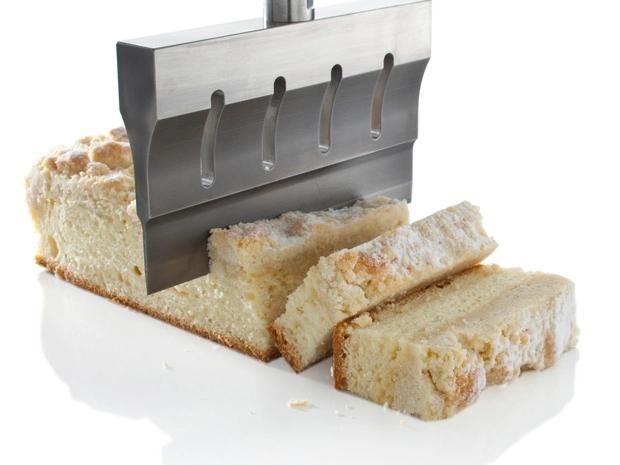

3.It can be used for cake, frozen food, cheese,ect.



Composition of ultrasonic food cutting knife



Ultrasound power supply is also called generator, which converts 50/60 Hz AC voltage into high frequency electric energy. Depending on the application, the frequency can be 20KHz, 30KHz or 40KHz. At 20KHz, the tool head (blade) vibrates 20,000 times per second.



Transducer, a sealed electromechanical device, receives power from a power source and converts it into high-frequency mechanical vibration.



The horn is located between the transducer and the tool head (blade). The output amplitude of the transducer is amplified or reduced, and the appropriate amplitude is transmitted to the tool head (blade).



Tool heads, also known as blades in cutting equipment, are customized for specific applications.



Typical ultrasonic food cutting components include four major elements: a power supply, a converter, a booster and a cutting horn, as explained below.



The attraction of ultrasonic cutting



Cleaner Cutting

Always produce a clean, uniform cutting surface, cutting multi-layer composite food (sandwiches) and nuts will not produce displacement.

Precision Cutting Hard-to-process Products

Easy sliced products, such as natural food cakes, do not deform or break, as well as hard bread and doughnuts.

Higher productivity leads to greater production

Ultrasound provides faster cutting and cutting speed than traditional blade systems, and smaller incisions help to reduce waste.

Reduce cleaning downtime

Ultrasound system provides longer running time during cleaning cycle and is easy to clean, thus reducing cleaning downtime by 70% to 90%.

High quality materials meet food industry standards

The equipment is made of stainless steel and titanium materials to ensure improved hygiene, safety and processing performance.

* Small surface friction can prolong blade life

The blade of ultrasonic tool head is sharper than that of static blade, which improves productivity and reduces maintenance.

All-weather operation

RPS-SONIC ultrasonic cutting system has been carefully designed and processed to meet the requirements of day-to-day high performance operation in * harsh processing environment.





                                                             Cutting effect of ultrasonic wafer biscuit
