• Power Source：Electric
• Automatic Grade：Automatic
• Whole Line Loading Size：One 20 Container
• English Manual：Yes
• capacity：30 kg,h
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• Production Capacity：10 Sets,Year

Basic Info.

Power Source Electric Automatic Grade Automatic Whole Line Loading Size One 20 Container English Manual Yes capacity 30 kg/h Transport Package Wooden Box Specification CE Trademark VIC Origin China Production Capacity 10 Sets/Year

Product Description

30kg/H fried Potato Chips Production Line
Introduction:
This semi-automatic sweet potato fries line is especially for potato fries making. It can make chips and stick, also the size can be adjustable. And 2 persons can finish the whole line. The machines are made by food grade material stainless steel, safety and with long life time

The whole process includes: washing and peeling ----cutting potato --- blanching --- dewatering --- frying -- de-oiling --- packing

Main date:

Item	Power (kw)	Weight(kg)	Size (mm)
TP10 washing and peeling machine	0.75kw/220V	60	690*430*860
QS400 potato cutter machine	0.75kw/220V	60	650*510*700
PT-1000 blanching machine	15kw/380V	50	1310*650*700
YS-500 dehydrator machine	0.75kw/380V	400	940*560*830
DYZ1000 fryer	21kw/380V	120	1380*620*950
TY-500 deoiling machine	0.75kw/380V	400	940*560*830
DL-800 flavor machine	0.75kw/220V	90	1000*800*1380
DZ-400/2S vacuum package machine	1kw/380V	80	540*520*920

Main machine photos and detaisl

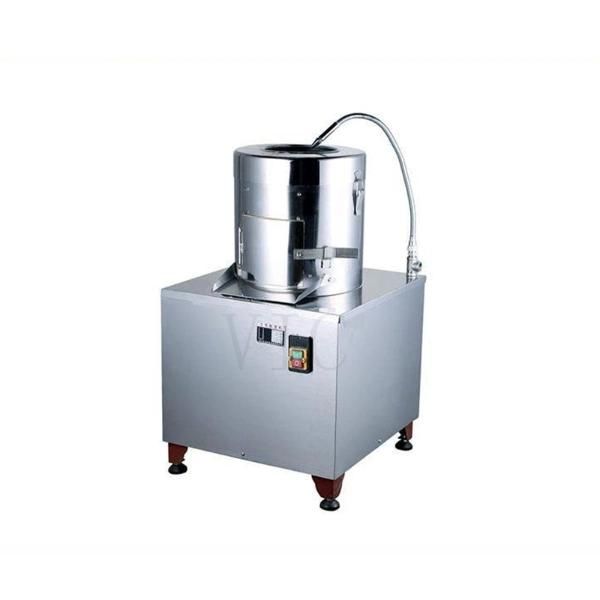

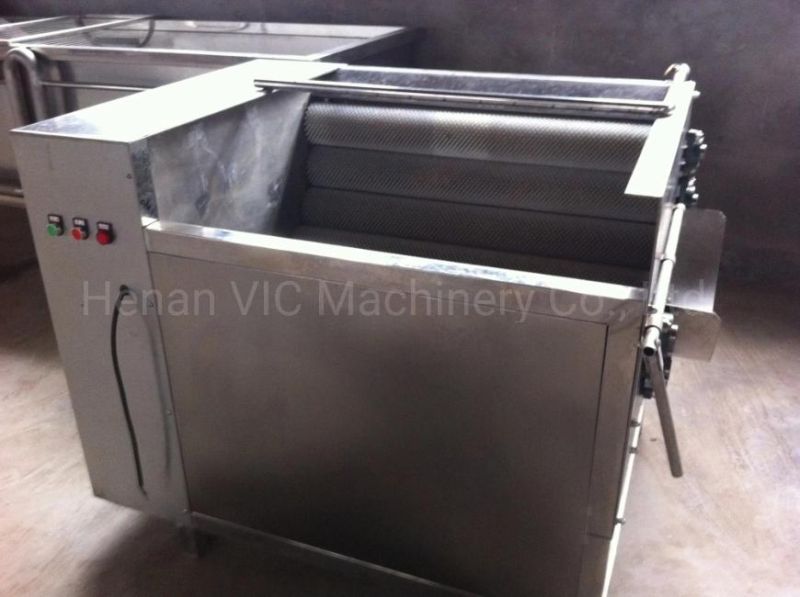

1. Potato peeling and washing machine: Peeling and washing the potato, with high efficient and low consumption;
1000kg/h capacity

80/180/800 kg/h peeling machine

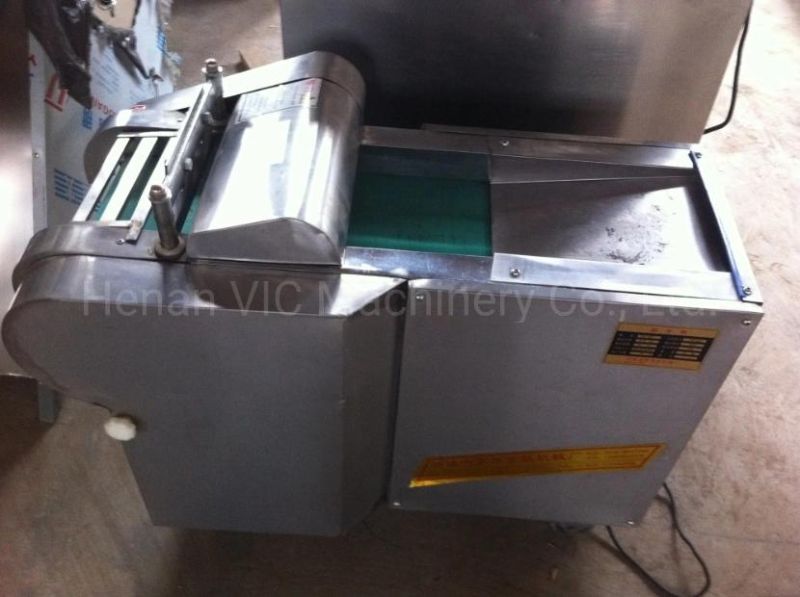

2. Potato cutting machine: Cut potato into slice or stick shape, both of shape and thickness can be adjusted according to client'requirement;

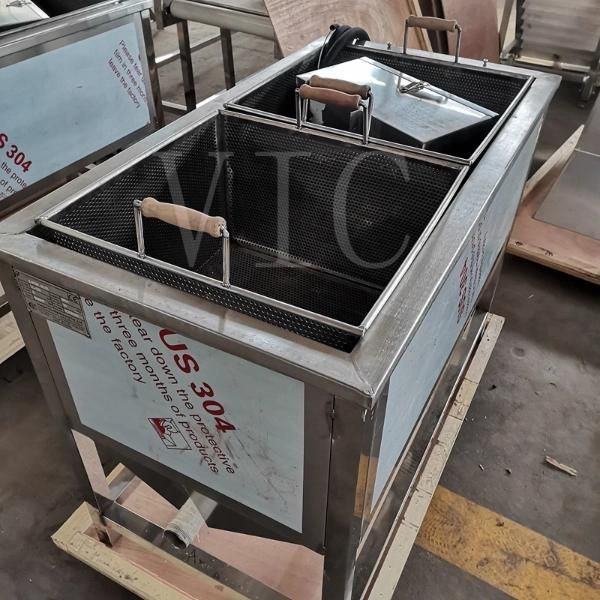

3. Blanching machine or frying machine:
Can rinsing and protect color of the potato chips;
Fry the potato, make potato chips tasty

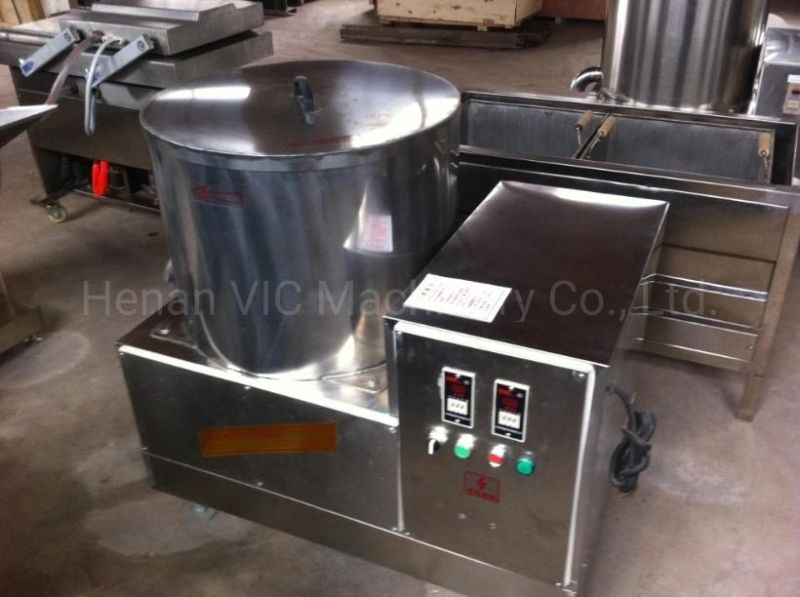

4. Dehydrator machine or  Deoiling machine:
Use the centrifugal dehydration, reduce drying time, improve the taste of potato chips
Remove extra oil;

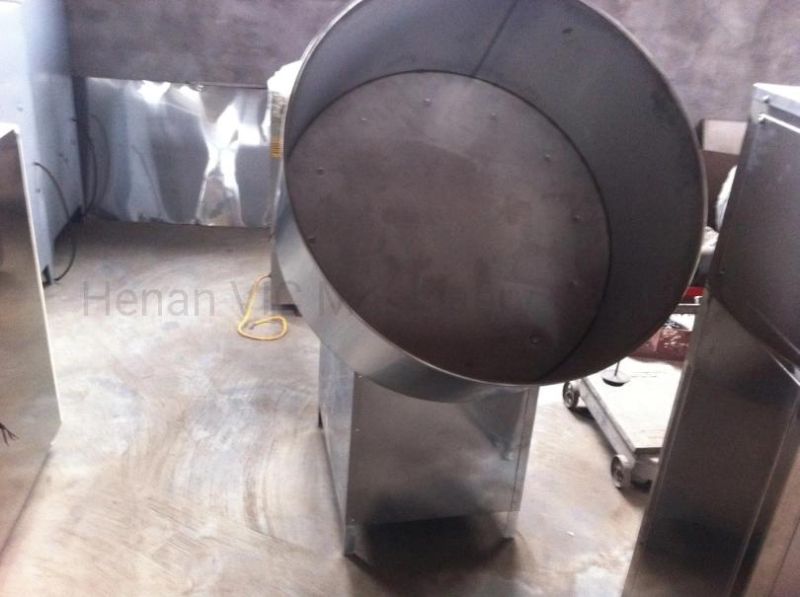

5. Flavor machine: By rotating, spray seasoning on the potato chips, keep no broken;

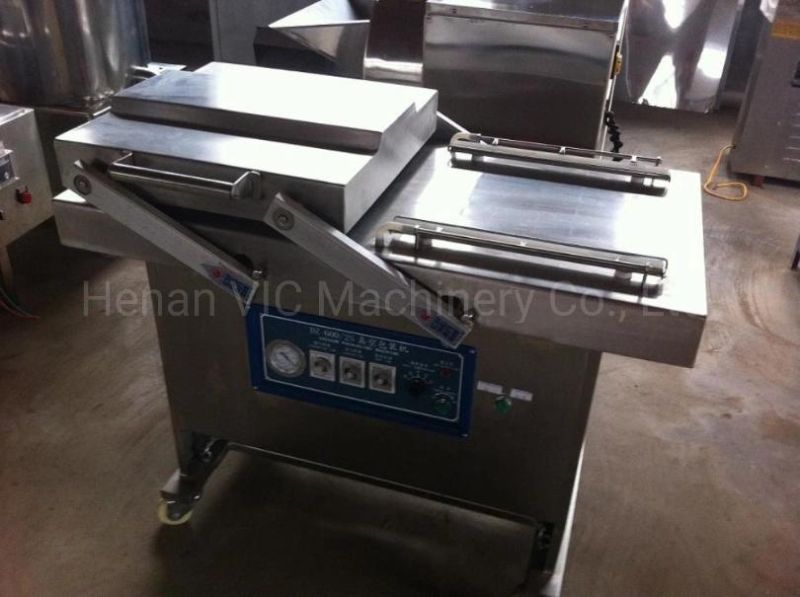

6.Vacuum package machine: Packing the potato chips with nitrogen.

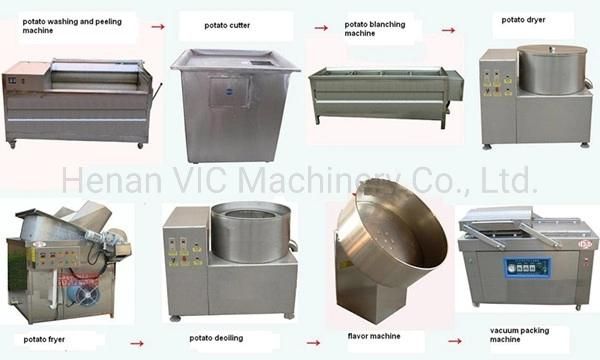

Production line:

Potato chips:

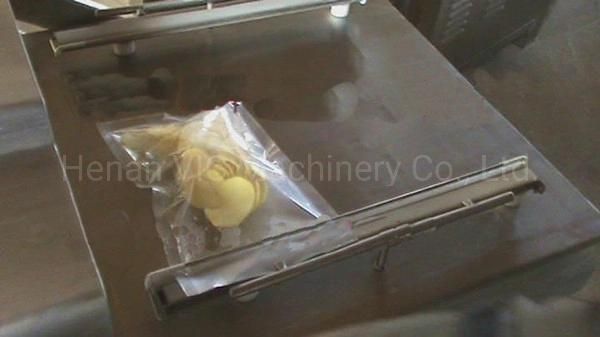

Final bagged production

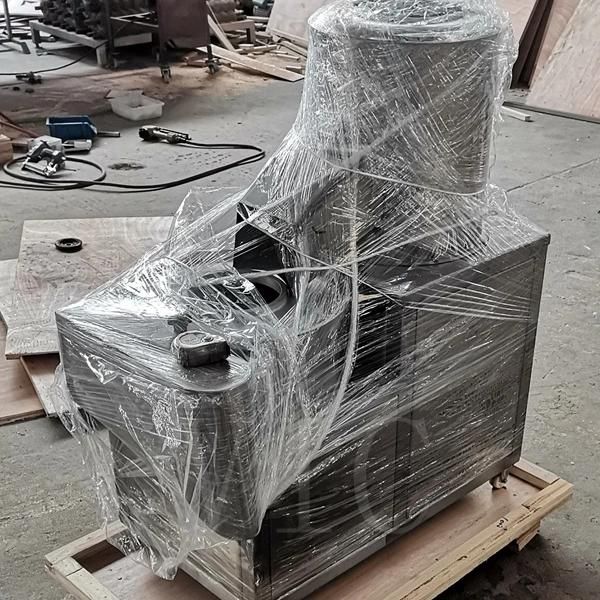

 Package
