• Model NO.：WS-NL-300
• Application：Cheese
• Customized：Customized
• Material：SUS304
• Voltage：Customized
• Raw Material：Liquid Milk
• Core Components：Gearbox, Motor, Pressure Vessel, etc
• Final Product：Cheese
• Transport Package：Film & Packaging Cloth Packing
• Specification：φ 1300x1750mm
• Trademark：WS
• Origin：China
• Production Capacity：60sets,Month

Basic Info.

Model NO. WS-NL-300 Application Cheese Customized Customized Material SUS304 Voltage Customized Raw Material Liquid Milk Core Components Gearbox, Motor, Pressure Vessel, etc Final Product Cheese Transport Package Film & Packaging Cloth Packing Specification φ 1300x1750mm Trademark WS Origin China Production Capacity 60sets/Month

Product Description

Brief Introduction of Cheese Vat:

Cheese vat: a round vat in which the curd is formed and cut or broken in cheese making.

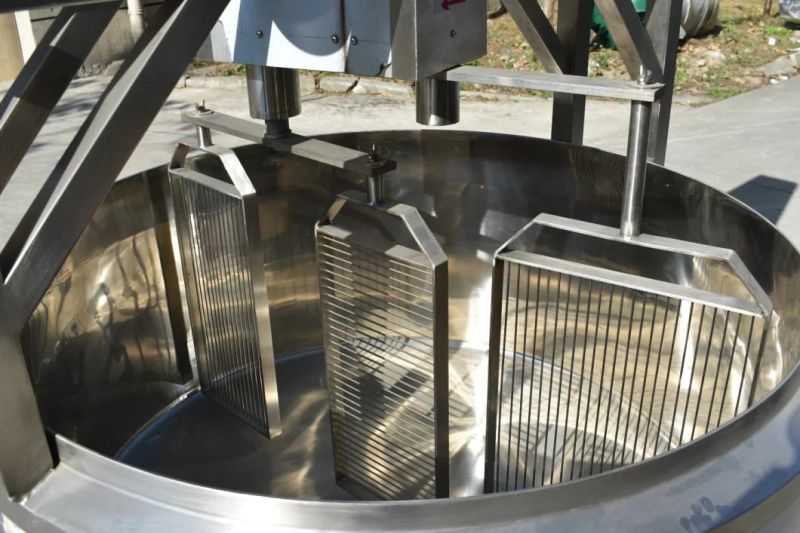

Structure: three layers stainless steel tank, Overhead Agitator,  Control box/panel, Adjustable foot.

Control box/panel: control the heating temperature&holding time and the start and stop of the mixing motor.

Agitator driven by two motors: one motor for stirring blade Rotary motion, one motor for stirring blade Longitudinal motion(three stirring paddles)

Heating method: Steam heating or Electric heating(2pcs Electric Heating Tube)

Product details:





Technical parameters:


Model	WS-NLC
Volume	100-2000L
Type	Round Vat type
Agitator	1-3pcs
Application	Cheese processing
Stirring speed	36rpm
Insulation material	polyester foam
Insulation thickness	50mm
Default power system	220V/1P/50 Hz  or 380V/3P/50Hz, it can be customized.
Maximum heating temperature	95°C
Vat lid(Optional)

NOTE: Above only for reference, we can make up to 30000L, the style and capacity can be customized. Please contact us with your requirements!
