Machinery FOR Food Beverage Cereal

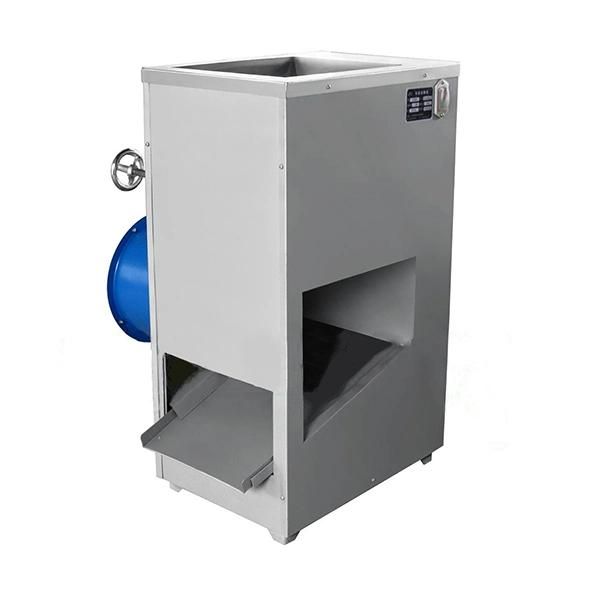

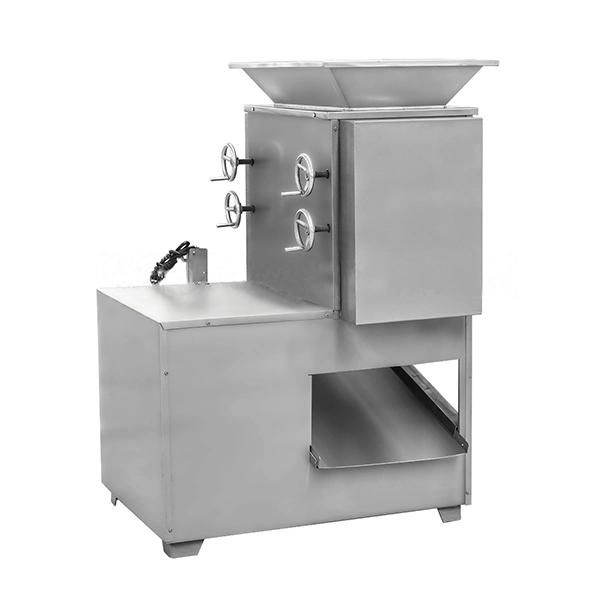

Garlic Peeling Split Machine

YANGZHOU COYOTECH MACHINERY CO., LTD.
  • Type:Stripper
  • Voltage:380V
  • Power:1.1KW
  • Customized:Customized
  • Transport Package:Export Package
  • Specification:STAINLESS STEEL

Base Info

  • Origin:China
  • Trademark:COYO
  • HS Code:84371090
  • Production Capacity:20000PCS,Year

Description

Model

SFB50

SFB100

Capacity (kg/h)

500

1000

Main motor (kw)

1.1

2.2

Blower motor (kw)

0.55

0.55

Power

380V 50HZ

380V 50HZ

Efficiency

98%

98%

Dimension (L*W*H,mm)

950*700*1100

1100*850*1450

Weight (kg)

150

280



Working Principle

The garlic enters the garlic dividing machine through the feed inlet, and the whole garlic head is squeezed and rubbed by a pair of flexible rubber rollers with adjustable linear speed. The garlic stem and garlic head are blown away from the machine by the built-in fan and can be recycled; the separated garlic petals roll out from the other side of the machine.
