• Model NO.：230
• Material：Stainless Steel
• Output：30 Liter,Hour
• Voltage：220V
• Power (Kw)：2.3 Kw
• Dimension (Net)：550mmx650mmx1340mm
• Dimension (Packing)：650mmx780mmx1520mm
• N.W. (Kg)：180 Kg
• G.W. (Kg)：200 Kg
• Transport Package：Carton with Pallet
• Specification：CE
• Trademark：SPACE
• Origin：China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. 230 Material Stainless Steel Output 30 Liter/Hour Voltage 220V Power (Kw) 2.3 Kw Dimension (Net) 550mmx650mmx1340mm Dimension (Packing) 650mmx780mmx1520mm N.W. (Kg) 180 Kg G.W. (Kg) 200 Kg Transport Package Carton with Pallet Specification CE Trademark SPACE Origin China (Mainland) HS Code 8418699020 Production Capacity 10000 Units/Month

Product Description

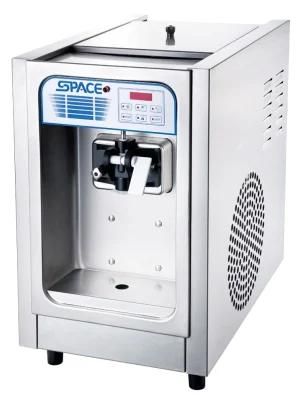

Soft ice cream machine model 230








Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Feature

* Gravity Feed
* Twin flavours + one mixed
* 2X 1.7 Liters Cylinder
* 2X 12.5 Liters Hopper
* 30 Liters/H
* Stainless Steel Panels
* Touch button control panels

Capacity
30 Liters/H, 220 cones/hour (100ml/cone)
(Capacity varies depending on condition of mix and environment)

Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Freezing Cylinder
Two, 2× 1.7liters

Mix Hopper
Two, 2× 12.5 liters

Refrigeration System
Main refrigeration:
One compressor: 3800 BTU/hr. R404A
(BTU may vary depending on compressor used. )

Beater Motor
One, 1.8 HP

Specifications
Voltage: 220V/240V-50Hz Power: 2.3 KW
Net weight: 180kg Gross weight: 200kg
Machine size: 550X650X1340mm Packing size: 650X780X1520 mm
Quantity for20": 27sets Quantity for 40": 54sets

Hardness Indicator
Displays hardness status of the refrigerated product to ensure product quality.

Electronic Controls
The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.

Air Cooled
Required clearance: Minimum 152mm (6") on both sides. Unit rear must be placed against a wall to prevent recirculation of hot air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Counter
Records number of dispenses per day and total number of dispenses.

Options:
1, Manufactured upon request, not available in stock
2, Ice cream cone&cup dispenser
3, Local specific plugs of power supply wire.
