• Model NO.：KQ
• Name：Stainless Steel Milk Chilling Tank for Cheese Mak
• Milk Cooling Tank Compressor：USA Copeland
• Refrigerant：R404 ,R22
• Milk Tankapplication：Cooling and Storage Fresh Milk
• Milk Transportation Tank：Also Provided
• Inside and Outside：Mirror Polished
• Material：SS304,316
• Mixer Speed：36rpm
• Cleaning Ball：Provided
• Working Life：More Than 10years
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：1000 to 10000L

Basic Info.

Model NO. KQ Name Stainless Steel Milk Chilling Tank for Cheese Mak Milk Cooling Tank Compressor USA Copeland Refrigerant R404 /R22 Milk Tankapplication Cooling and Storage Fresh Milk Milk Transportation Tank Also Provided Inside and Outside Mirror Polished Material SS304/316 Mixer Speed 36rpm Cleaning Ball Provided Working Life More Than 10years Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 1000 to 10000L

Product Description

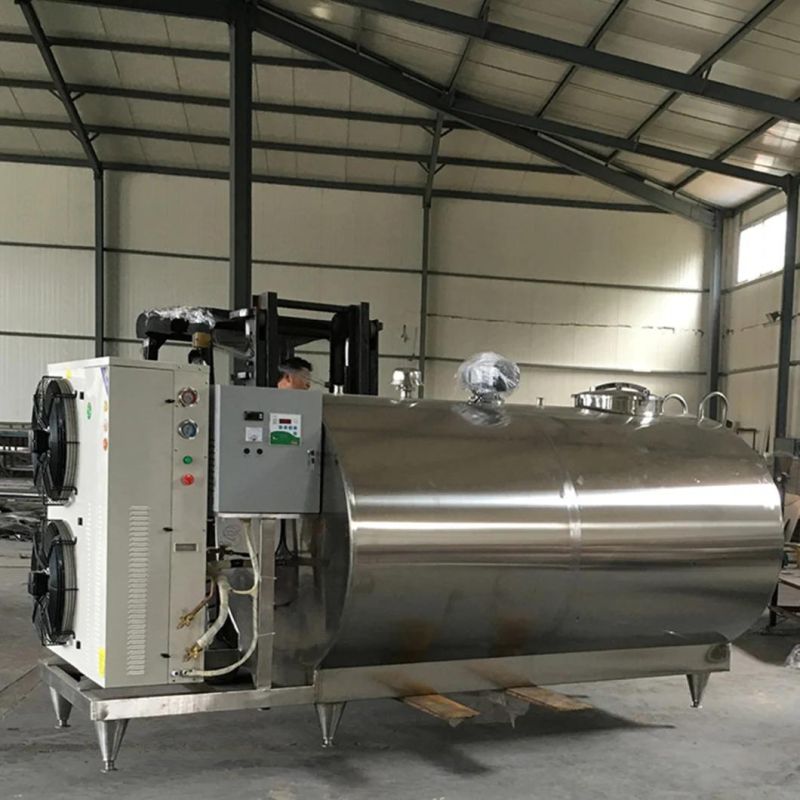

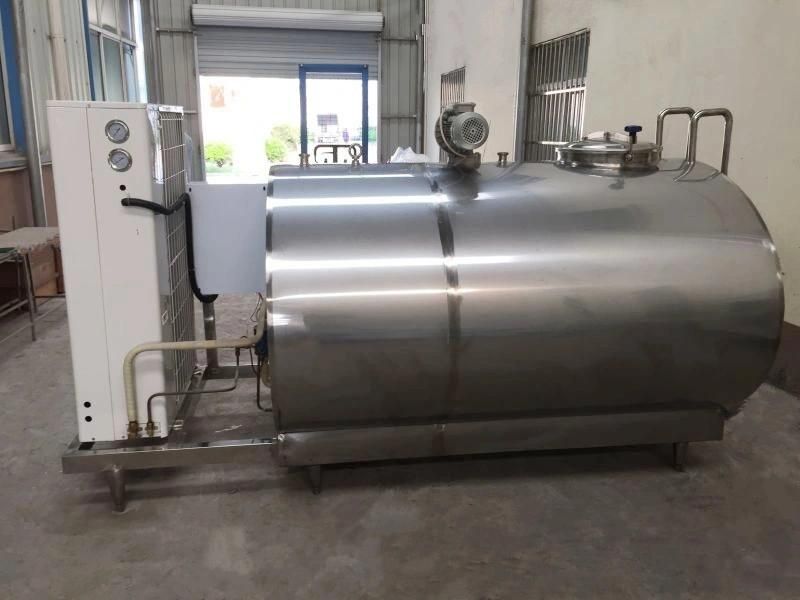

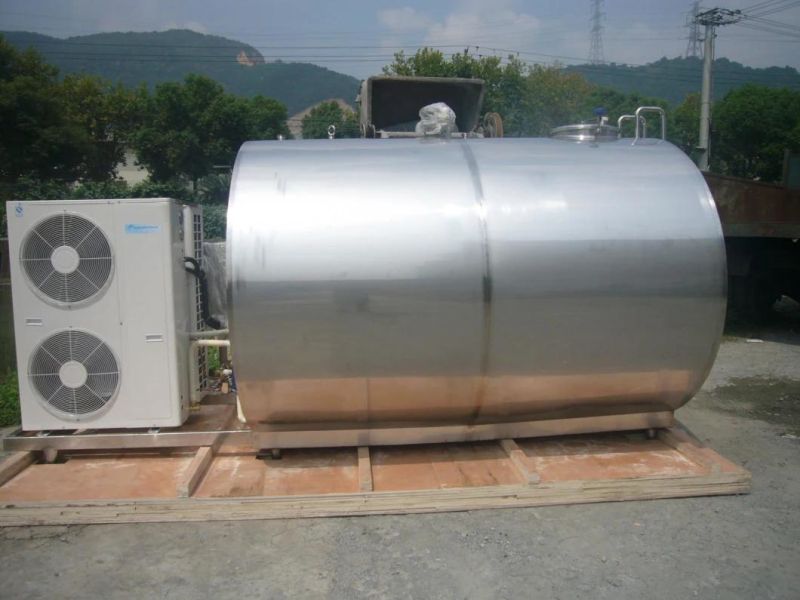

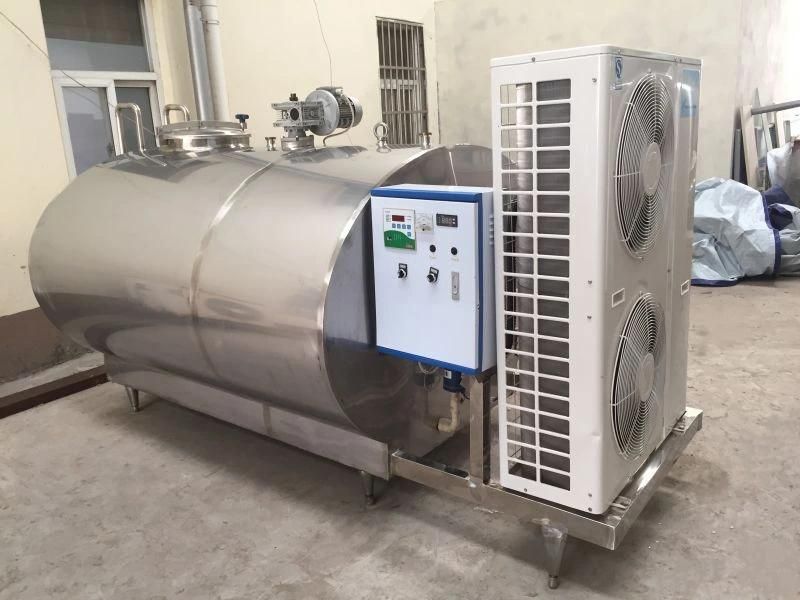

Stainless Steel Milk Chilling Tank For Cheese Making Factory
MIlk chiller tank 500L to 10000Litres.
Stainless Steel Milk Tank /Vat

milk directly cooling tank for cow farms


MILK COOLER

Stainless Steel Milk Tank Milk Vat Cooling Tank Chiling Tank
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

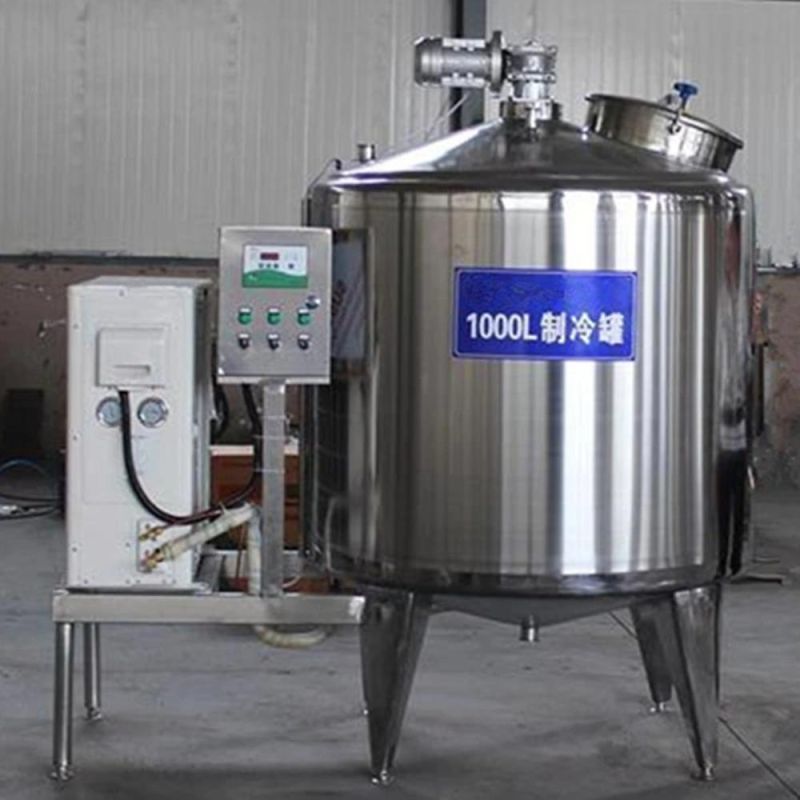

Type	KQ-1T Vertical type	KQ-2T Laying type	KQ-3T Laying type	KQ-5T  Laying type	KQ-6T  Laying type	KQ-8T  Laying type	KQ-10T  Laying type
Capacity( L)	1000	2000	3000	5000	6000	8000	10000L
Refrigerating Output (W)	9000	15000	22000	37000	38000	55000	74000
Refrigerating  Fluid(R)	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22
Insulating Property	≤ 1C/4h	≤1C/4h	≤1 C /5h	≤1 C /5h	≤1 C /5h	≤1 C /5h	≤1 C /6h
Agitator Speed	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min
Power (Kw)	3.8	5.9	7.5	10.5	11	13	19.2
Voltage	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases
Dimension(mm)	1800*1200*1500	3400*1550*1750	3600*1700*1900	3900*2050*2150	4500*2050*2150	6300*2050*2250	8000 * 2100 * 2400
Weight(Approximately)	0.6T	0.75T	0.9T	1.1T	1.3T	1.8T

Stainless Steel Milk Chilling Tank For Cheese Making Factory .
