• Model NO.：GF1000
• Application：Food Quick Freezing
• Refrigerant：R404A
• Belt Material：Food Grade SUS304 Stainless Steel
• Freezing Time：Adjustable
• Keywords：Tunnel Fast Freezing Machine
• Specification：7.4*1.5*2.2m
• Trademark：lit
• Origin：China
• HS Code：8418699090
• Production Capacity：10PCS,Month

Basic Info.

Model NO. GF1000 Application Food Quick Freezing Refrigerant R404A Belt Material Food Grade SUS304 Stainless Steel Freezing Time Adjustable Keywords Tunnel Fast Freezing Machine Specification 7.4*1.5*2.2m Trademark lit Origin China HS Code 8418699090 Production Capacity 10PCS/Month

Product Description

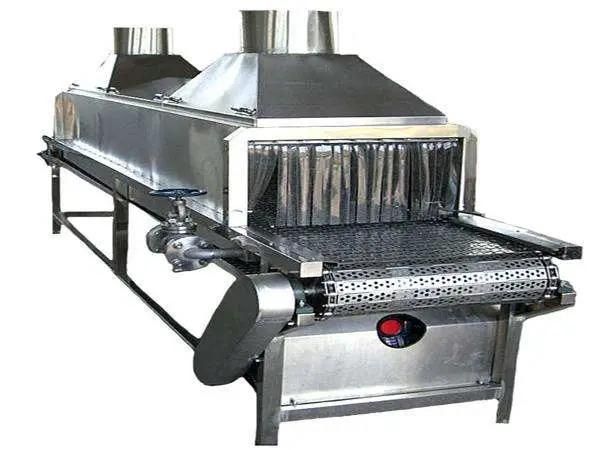

Industrial IQF Quick Freezing Machine For Fruit and Vegetable

 Product Description:

Industrial IQF Quick Freezing Machine For Vegetable is designed and manufactured based on our many years' experience.
The special cold air distribution system of tunnel freezer can bring even air flow. The equipments can freeze multi-type of frozen foods economically and efficiently, such as dumplings, steamed stuffed bun, glue pudding and meat, aquatic products etc.


Model	Freezing Temp.	Size(L*W*H)mm	Weight(kg)	Cooling Capacity (kw)	Freezing Capacity (kg/h)
GF500	-35	14860*2500*2880	10000	85	500
GF750	-35	16560*3000*2880	12000	130	750
GF1000	-35	18660*3000*2880	15000	170	1000
GF1500	-35	21560*3450*2880	18000	240	1500
GF2000	-35	23560*3450*2880	22000	320	2000
GF2500	-35	25560*3600*2880	26500	450	2500

Main Features (Industrial IQF Quick Freezing Machine For Vegetable)

1. High quality special air distribution system ,and save energy.
2. Stable and reliable, low fault rate and convenient maintenance.
3. Double chamber structure, little heat loss, saving energy and enhance the frozen effects.
4. Food frozen is equal and quick freezing speed.
5. Stainless steel and others equipment's materials accord with food safety requirements- corrosion resistance, long servic e time, and ensure the requirements of food sanitary safety.
6. The access door is easy to check with eyes and clean. It can ensure the safety of foods.
7. The control is easy and convenient. Auto-running by PLC control, and can adjust the freezing time according to the different foods.
8. The equipments can freeze multi-type of frozen foods economically and efficiently, such as dumplings, steamed stuffed bun, glue pudding and meat, aquatic products, etc.
9. High quality driving system can ensure continuous working.
10. Easy to install, and don't need to change the ground that will realize the equipments overhead installation.

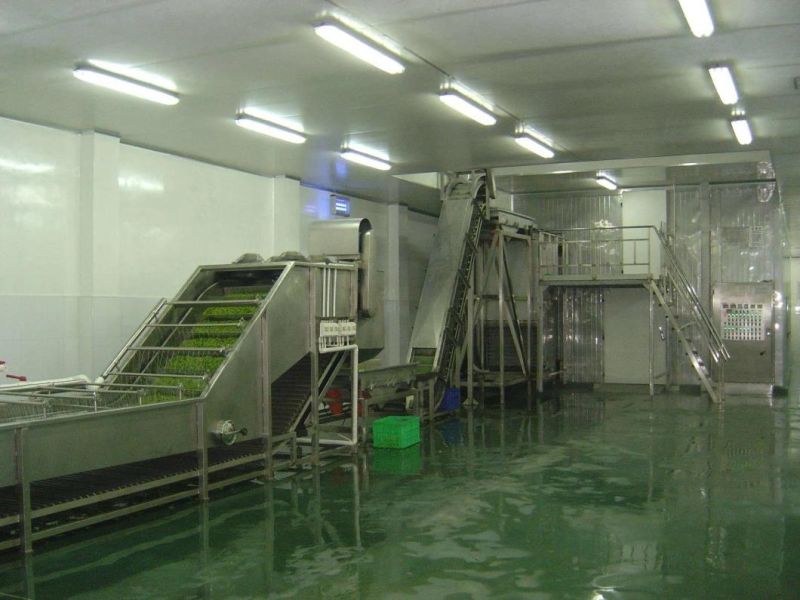

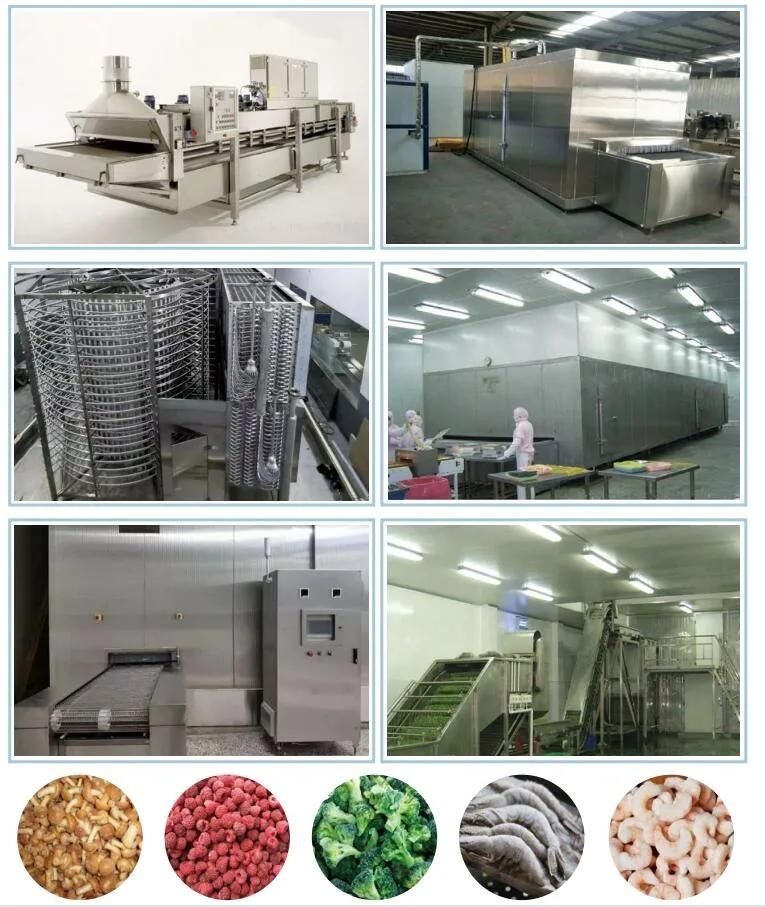

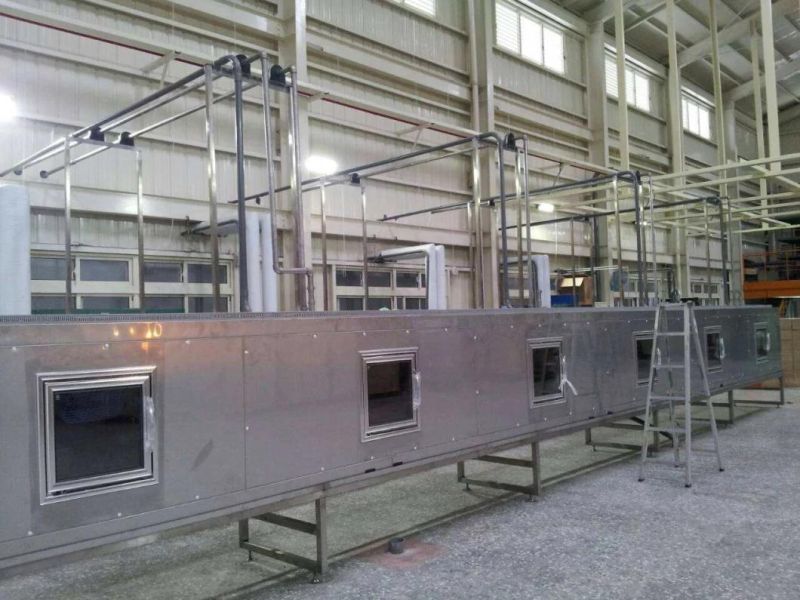

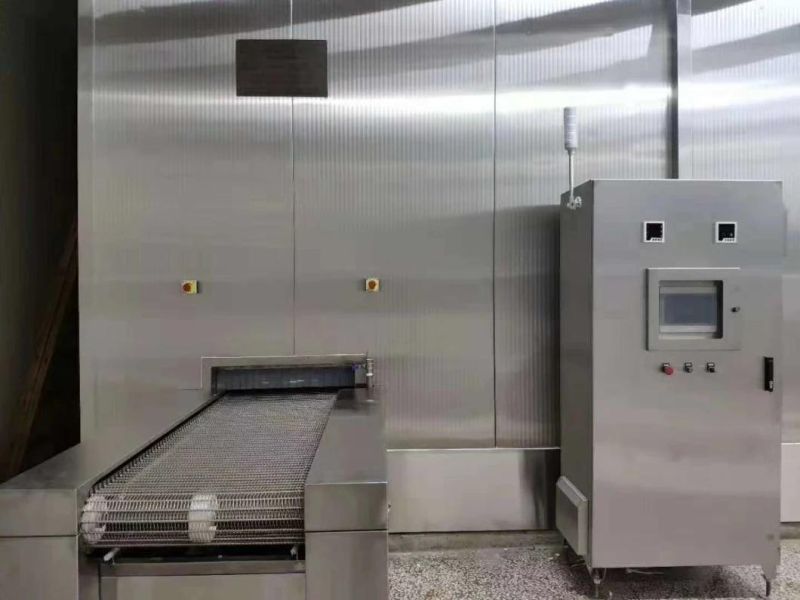

IQF Freezer:
