• Model NO.：CS
• Processing Material：Fruit,Vegetables
• Process：Thermal Processing
• Model：CS-1000
• The Highest Sterilizing Temperature：100°c
• The Width of Sterilization Conveyor Belt：1500mm
• Conveyor Belt Speed：110-553mm,Min(Stepless Speed)
• Heating Steam Pressure：0.4MPa
• Transport Package：Wooden Case
• Specification：CS
• Trademark：UNIMACH
• Origin：China
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. CS Processing Material Fruit,Vegetables Process Thermal Processing Model CS-1000 The Highest Sterilizing Temperature 100°c The Width of Sterilization Conveyor Belt 1500mm Conveyor Belt Speed 110-553mm/Min(Stepless Speed) Heating Steam Pressure 0.4MPa Transport Package Wooden Case Specification CS Trademark UNIMACH Origin China Production Capacity 200 Sets/Year

Product Description

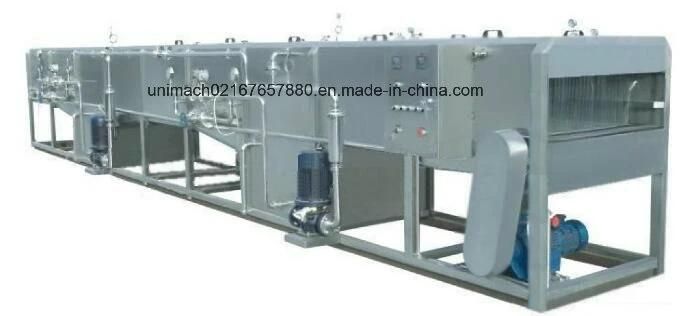

Continuous spraying sterilizer is designed and made on the basis of absorbing and digesting abroad machine. It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre cool, and cooking water to cool, it it is with the advantages of sterilizing temperature atomatic control, and adjustable sterilizing time, and can be widely used in sterilizing and cooling of juice and beverage in various bottles and cans, electrolyte beverage, wine and condiments. It can be designed and made to the sterilization conditions and production provided by the customer.

model	CS-1000	CS-2000	CS-3000	CS-5000
The highest sterilizing temperature	100°C	100°C	100°C	100°C
The width of sterilization conveyor belt	1500mm	1500mm	1500mm	1500mm
Conveyor belt speed	110-553mm/min(stepless speed)	110-553mm/min(stepless speed)	110-553mm/min(stepless speed)	110-553mm/min(stepless speed)
Heating steam pressure	0.4MPa	0.4MPa	0.4MPa	0.4MPa
Length of sterilization section(mm)	9000	16000	22000	320000
Length of pre-cooling section(mm)	1200	16000	1800	2200
Length of cooling section(mm)	3000	5000	8000	10000
Heating recycling water volume	21m³	25m³	35m³	50m³
Power(kw)	9.6	10.6	13.6	16.5
Size(mm)	9880×2250×1735	17880×2250×1735	23800×2250×1735	34880×2250×1735
