• Model NO.：SLG65-III
• Material：Stainless Steel
• Motro Brand：Siemens Motor
• Inverter：Delta Brand
• Size：25.0*5.0.*5.0
• Snacks Raw Material：Corn Wheat Flour, Rice Flour......
• Name：Puffed Corn Snacks Making Machine
• Transport Package：Woodcase
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：84361000
• Production Capacity：200-250kg,H

Basic Info.

Model NO. SLG65-III Material Stainless Steel Motro Brand Siemens Motor Inverter Delta Brand Size 25.0*5.0.*5.0 Snacks Raw Material Corn Wheat Flour, Rice Flour...... Name Puffed Corn Snacks Making Machine Transport Package Woodcase Trademark Jinan Datong Machinery Company Origin Jinan HS Code 84361000 Production Capacity 200-250kg/H

Product Description

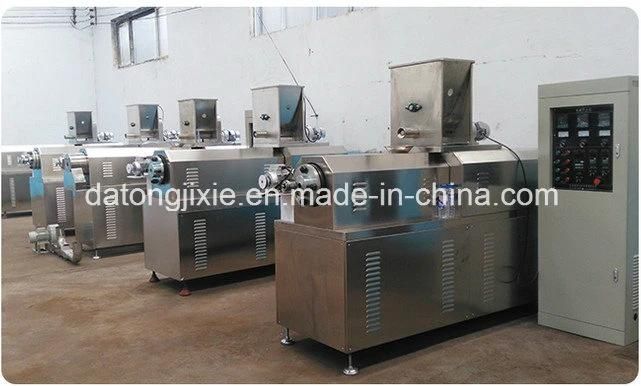

Double screw extruder feature:
1. The main extruder adopts frequency speed controlling with high automation and stable performation.
2. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demand.
3. The forced lubrication system, so that it can guarantee the equipment transmission life is longer.
4. Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
5. Self-cleaning, when stopping, it can be cleaned without desassembling.
6. According to different screw design rate to full different technology request.
7. This equipment has the wide material, multi-shape products and flexible collocations. We can produce the different products according to the different models (pellet, star, ring, moon, ball, stick or grain )and collocations.

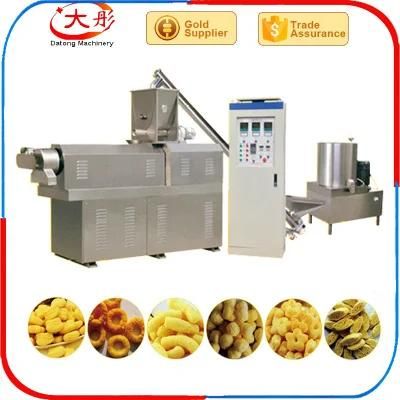

1. Description of Sweet puffed corn sticks food processing line:
Cheese Curls Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
3. Snacks food Products shapes:
  Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.

4. Choco corn snacks food processing line Capacity:
      60-80kg/h 100-150kg/h, 200-240kg/h, 500kg/h

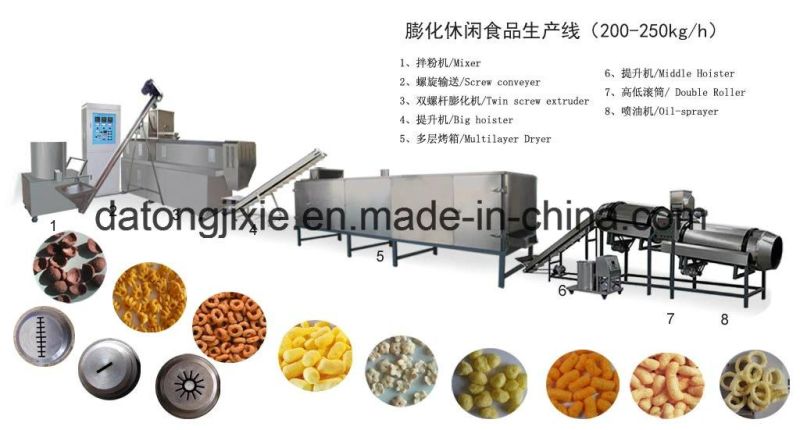

5. choco corn snacks food processing line Flow chart:
  Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China standard industrial Voltage for the machine:
  Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers' Local voltage according to different countries (400v 415v 480v...).
7. Sancks food Machines Materials:
  All the Snacks food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
8. Details & Features of Cheese Balls Plant:

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
9.Snacks food machine parameter:

Model	Installed power	Real power	Output	Dimension
SLG65-III	70kw	40kw	100-150kg/h	22000x1200x2200mm
SLG70-III	90kw	50kw	200-240kg/h	25000x1500x2200mm
SLG85-III	120kw	100kw	400-500kg/h	30000x3500x4300mm
SLG90-III	135kw	100kw	800-1000kg/h	30000x3500x4300mm
SLG65-I	50kw	30kw	60-80kg/h	15000x1200x2200mm

10.Machine Packing:Simple packing stretch film (Based on the customers' need adopt the wooden case or wooden pellets, etc.)
Transportation: According to the contract, our company could in charge for the shipment or you prepaid. We will choose the most timely and safe way transportation.
11.FAQ
 1. Q: Are you a trading company or a manufacturer?
     A: We are the manufacturer, which has almost 10 years of experience in this industry.
2. Q: How can I get to your company?
A: That's great you can visit our factory, welcome! You can get a flight to Jinan Airport. Our factories are just about 30 minutes drive away from Jinan Airport.We are so glad to arrange our car pick you up!
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer's side.).
 After this period we will definitely support you when needed.
 You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

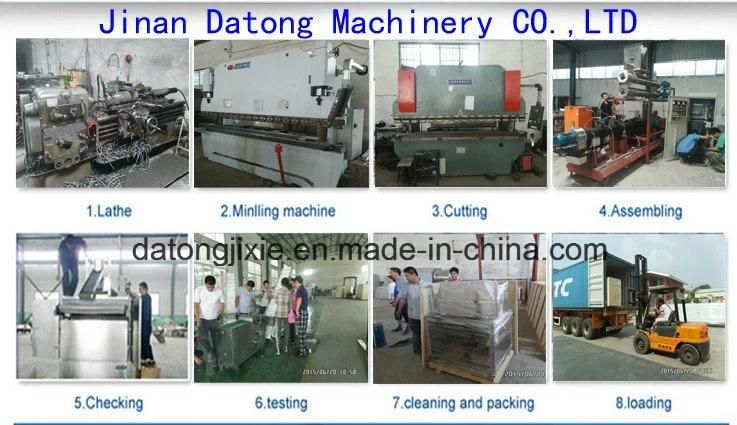

12.Customer visiting & about me:
