• Model NO.：500L
• Capacity：100-20000L
• Material：SUS 304,Copper
• Interior Shell：3mm
• Exterior Shell：2mm
• Interior Finish：Polished
• Insulation：80mm
• Test Pressure：3 Bar
• Head Space：25%-30%
• Accessories：All
• Type：Customizable
• Heating Way：Electric,Steam,Direct Fire
• Transport Package：Wooden Box,Iron Frame,20gp,40gp Container
• Specification：2000l
• Trademark：Cassman
• Origin：Jinan, China
• HS Code：8438400000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. 500L Capacity 100-20000L Material SUS 304/Copper Interior Shell 3mm Exterior Shell 2mm Interior Finish Polished Insulation 80mm Test Pressure 3 Bar Head Space 25%-30% Accessories All Type Customizable Heating Way Electric/Steam/Direct Fire Transport Package Wooden Box/Iron Frame/20gp/40gp Container Specification 2000l Trademark Cassman Origin Jinan, China HS Code 8438400000 Production Capacity 5000 Sets/Year

Product Description

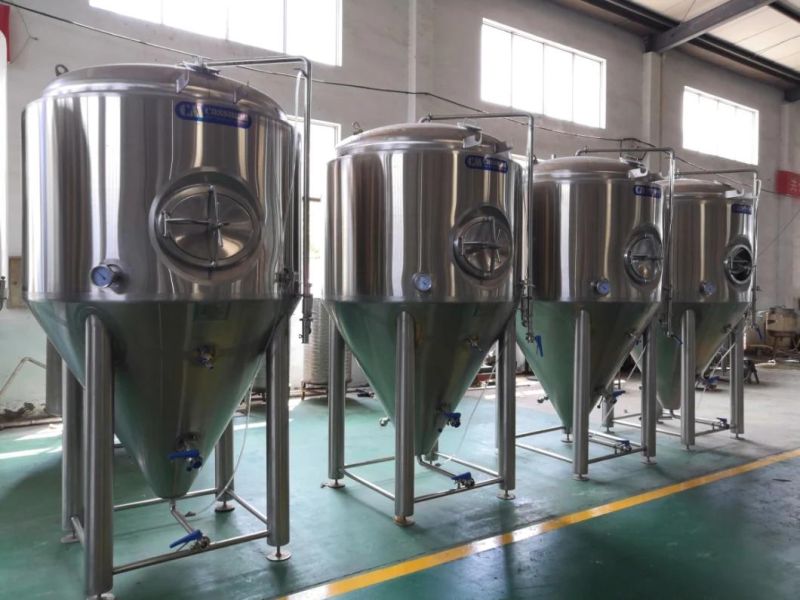

Cassman 500L Insulated Stainless Steel Beer Fermentation Tank with European Ce Certification

All fermentation tanks are made by SUS304 stainless steel, which meet domestic and international food safety and hygiene standards.


Cassman 500L standard fermentation tank configuration

Net capacity:500L
25% head space
Interior thickness=3mm Exterior thickness=2mm

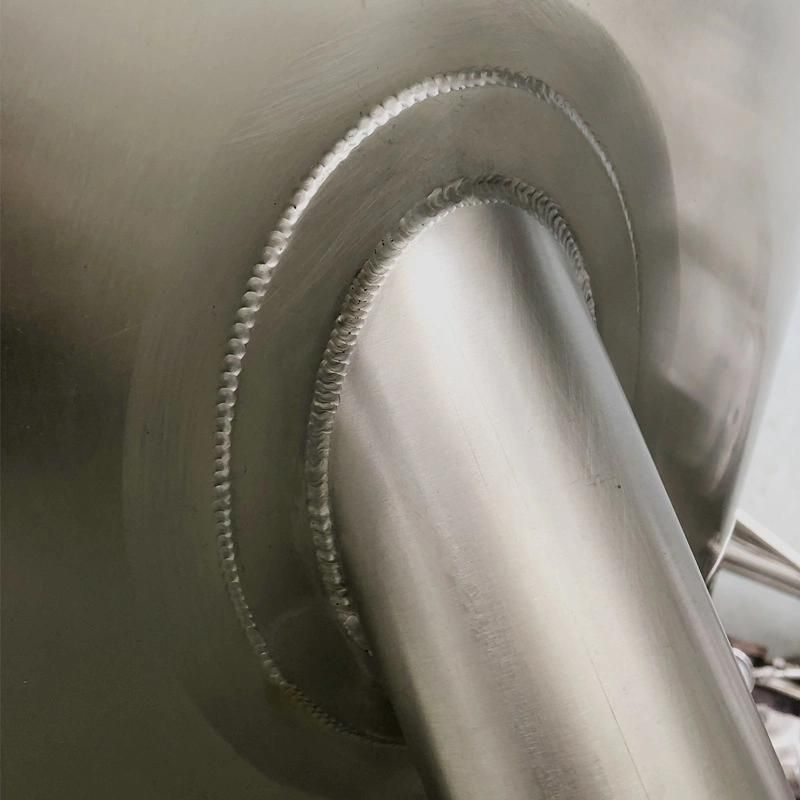

100% TIG welding with pure argon gas shield

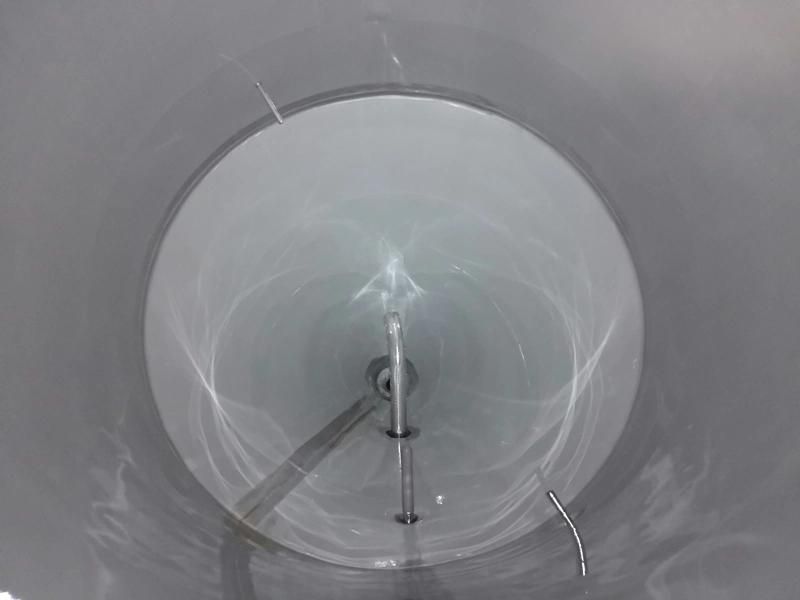

Interior tank: Pickling passivation+Exterior Oil brushed finish 2B
Insulation: Polyurethane, TH = 80mm
Domed top cover+ 60°cone bottom
Glycol jacket: dimpled plate on cone & side
Test pressure 3 bar, working pressure 1.5 bar
PT100 temperature sensor & digital temperature gauge

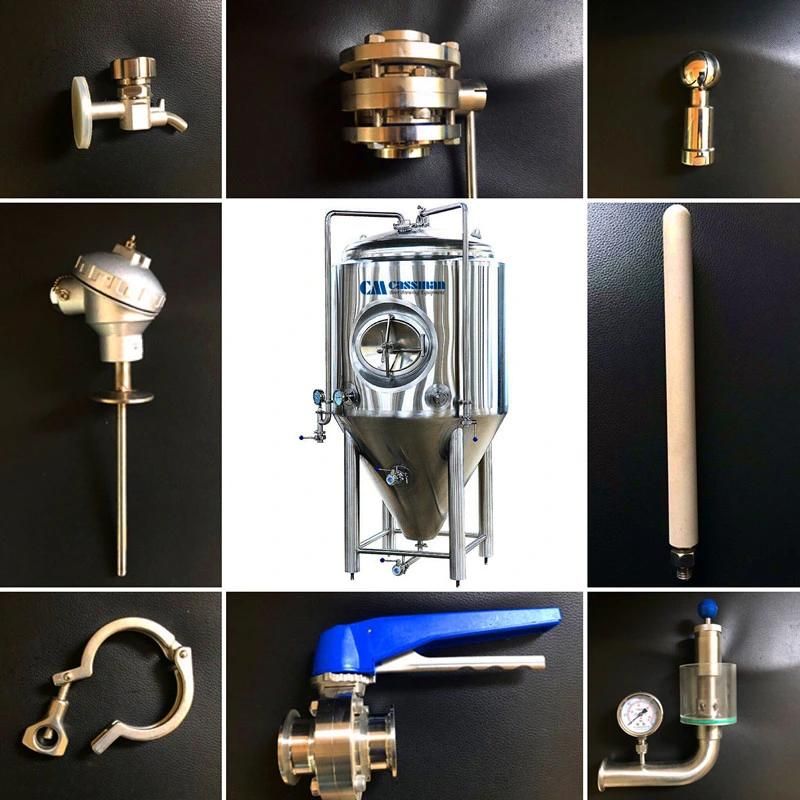

Complete butterfly valves, fittings and parts as below:
• 2pcs x Lifting ear
• 1pcs x Dry hopping
• 1pcs x PRV( Pressure release valve)
• 1pcs x Pressure gauge
• 1pcs x Spunding valve
• 1pcs x Sample valve

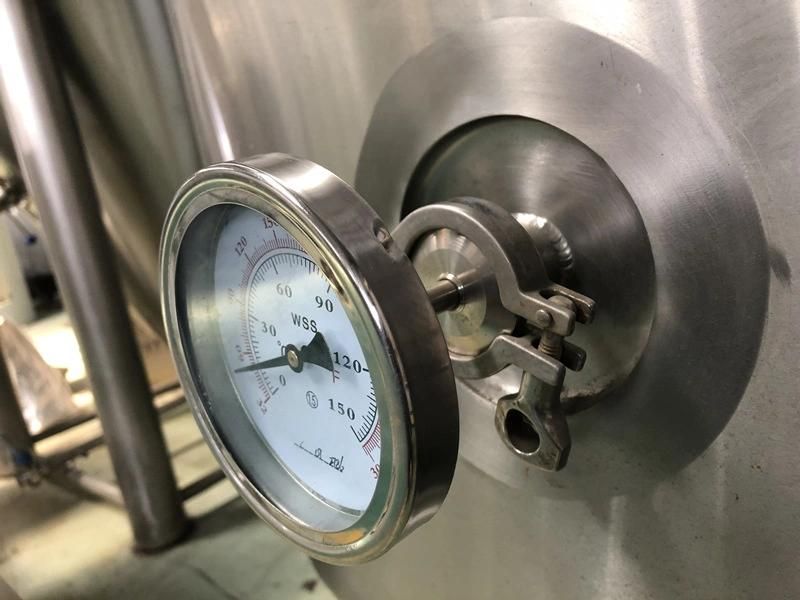

• 1pcs x Temperature gauge
• 1pcs x Carbonation stone
• 1pcs x Racking arm
• 1pcs x CIP spray device
• 1pcs x Drain outlet
• 2 pcs x Solenoid valve
• 4 Heavy duty legs with leveling pad

More details



About CASSMAN

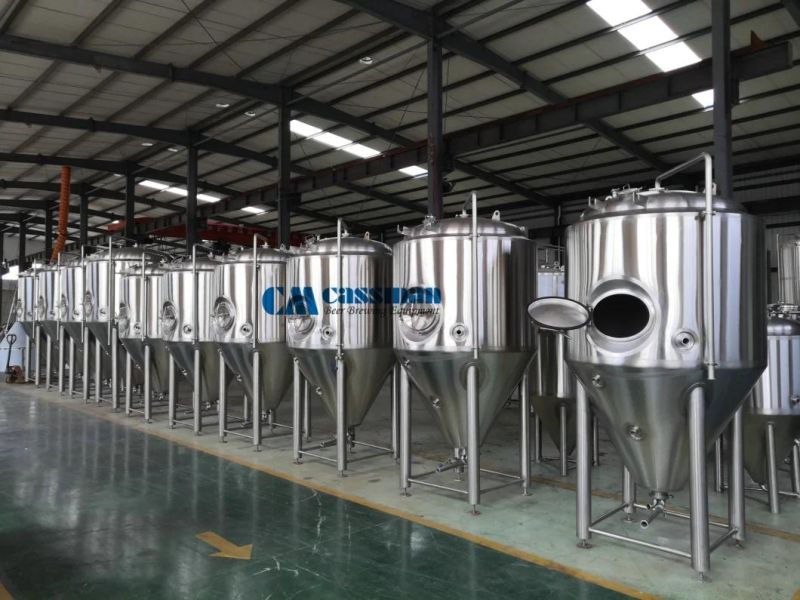

Jinan Cassman Machinery Co., Ltd. is located in Jinan City, Shandong Province, the factory covers an area of 5,000 square meters, with three workshops of S/S vessels processing, Welding & Assembly, and commissioning.
Equipped with advanced CNC machine, Argon gas welding machine, stainless steel bending machine, pressure vessel detector, etc., Approved by CE,TUV and ISO certifications. We have a technical team with tanks design, brewing consultant, electrician and installation engineers.

Cassman focus on the brewing technology research, design and manufacture.
We provide home brew equipment(50L-100L), craft brewing equipment(200L-3000L) and industrial brewery equipment(1000L-20000L), which included the malt milling, brew house system, beer fermentation/servicing tank, cold/hot liquor system, packaging line and control system.
Our after sales service including the installation and brewing technology transfer.

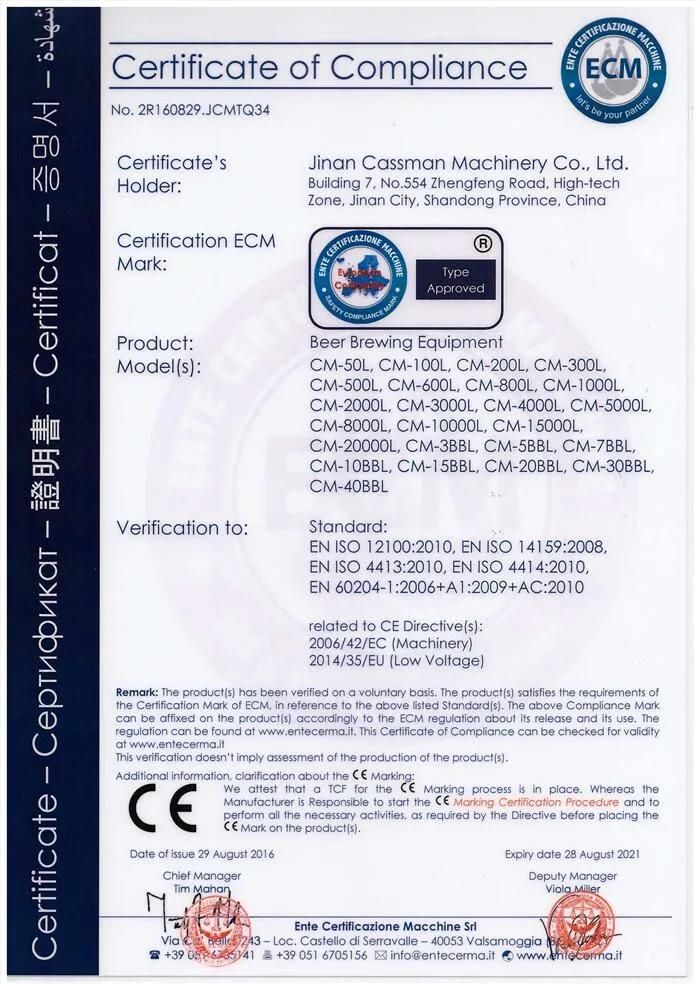

CASSMAN-Certificate



Our service

Warranty:
Equipment warranty includes tank warranty, electric parts warranty, auxiliary parts warranty, etc. .
1, Cassman provides 3-5 years warranty for the main tank, 1 year warranty for electrical components and auxiliary parts, etc., and lifetime after-sales service.
2, In order to ensure the normal operation of the brewery, we can provide a separate set of spare parts according to the customer's request, customers can replace parts in case of abrasion damage.

Maintenance:
During operation, daily maintenance for the equipment is important. Cassman will provide maintenance guide., if need, we can send engineer to customer's site for repair and maintenance.

Beer equipment model selection:
1, Based on years of experience, Cassman can provide standard models of beer brewing equipment. We have mature experience in brewing technology and equipment design.
2, Cassman can provide custom-made service as per customer's requirement. including customize brewhouse system, fermentation tank, brite beer tank, coffee equipment, whiskey distillation equipment, stainless steel tank, etc.

Brewery design:

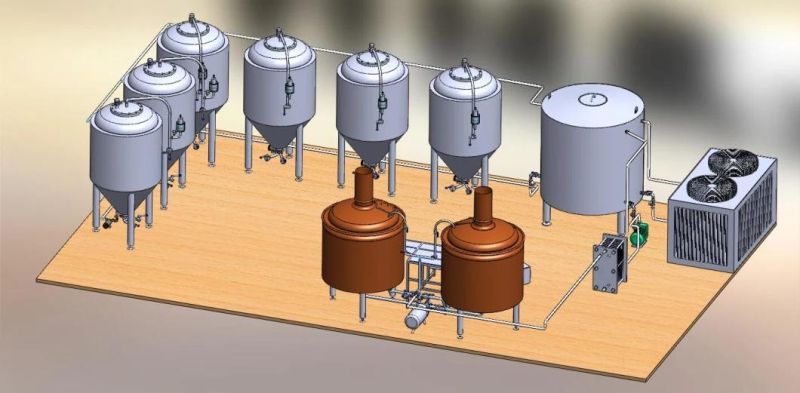

Cassman can help to design layout for newly built brewery, and we will supply P&ID drawings, electrical connection diagrams,flow chart, tank drawings, etc. , 3D drawings are also available if needs.

Installation:
Cassman has 6 to 8 experienced technical engineers, we can provide on-site installation and debugging instruction as per customer's needs.
1, To ensure good after-sales service, we will appoint the same technical personnel to debug and load the equipment before delivery,
2, For single tank, if on-site installation service is unnecessary, Cassman will provide equipment drawings and installation guides so that customers can install by themselves.
