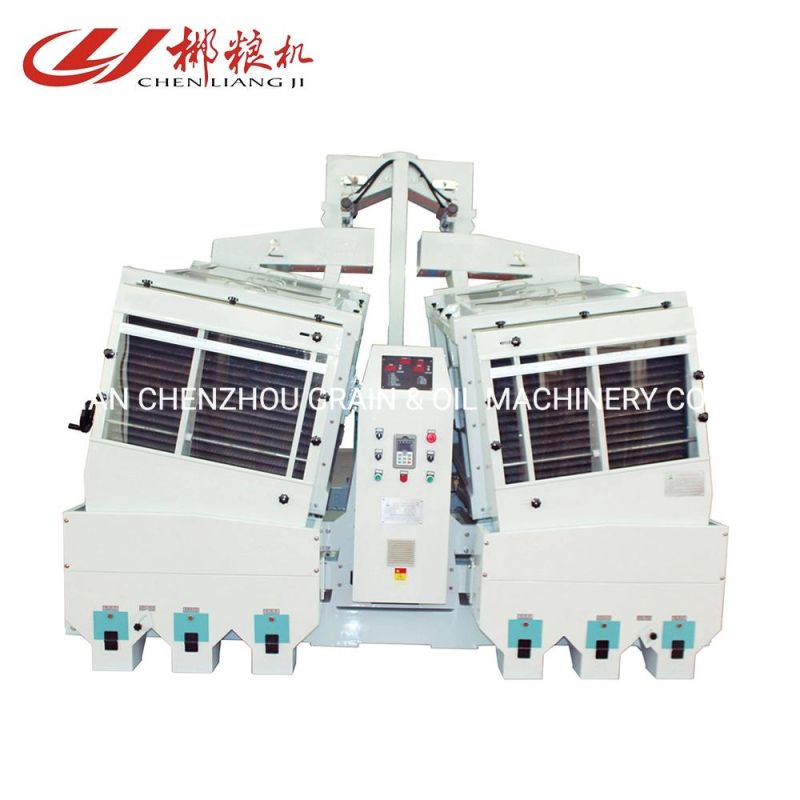

Clj Double Body Gravity Paddy Separator Rice Separator
HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.- Type：Rice Mill
- Application：All
- Voltage：380V
- Appearance：Horizontal
- Press Materials：Rice
- Condition：New
Base Info
- Model NO.：MGCZ60
- Customized：Non-Customized
- Weight：1350kg
- Power：4kw
- Capacity：4.5-6.5t,H
- Transport Package：Wooden Case
- Specification：1980x1780x2100mm
- Trademark：CLJ
- Origin：China
- HS Code：84378000
- Production Capacity：3000units,Year
Description
Characteristic :
1.Rotary linkage motion pair:Changed from domestic traditional V shape blade rotary motion pair to bearing rotary motion pair. 2.With brand new itelligent control system. (1).Use advances itelligent touch screen as control board,equip with Manual/Auto swith control system. (2)Memory function of motor-driven feeding for feeding size and level. (3)Automatic control system:auto start for incoming materials,auto shut for no materials .
| Model Numerical value Parameters | MGCZ60×16×2 | MGCZ60×20×2 | MGCZ60B×20×2 | MGCZ80×20×2 | MGCZ80B×20×2 |
| Equipped motor | Y132M-6-4Kw | Y132M-6-4Kw | Y160M-6-5.5Kw | Y132M-6-4Kw | Y160M-6-7.5Kw |
| Net impurity output(non-glutinous rice Kg/h) | 4500~5500 | 5500~6500 | 9000~10000 | 7000-10000 | 10000~12000 |
| Net impurity output(japonica rice Kg/h) | 5500~6500 | 7000~8000 | 10000~11000 | 8000-11000 | 12000~14000 |
| Weight(kg) | 1700 | 1820 | 2300 | 2200 | 2850 |
| Dimensions(length*width*height mm) | 2050×1780×2250 | 2050×1780×2250 | 2420×2170×2500 | 2440*1720*2250 | 2800×2210×2400 |
