• Model NO.：ZHET-1500L
• Thickness：Inner:3mm Outside:2mm, Bottom:4mm
• Mirror Polishing：0.4-06um
• Transport Package：Nude
• Specification：1500L
• Trademark：Zunhuang
• Origin：China
• HS Code：8438400000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. ZHET-1500L Thickness Inner:3mm Outside:2mm, Bottom:4mm Mirror Polishing 0.4-06um Transport Package Nude Specification 1500L Trademark Zunhuang Origin China HS Code 8438400000 Production Capacity 1000PCS/Year

Product Description

Equipment system

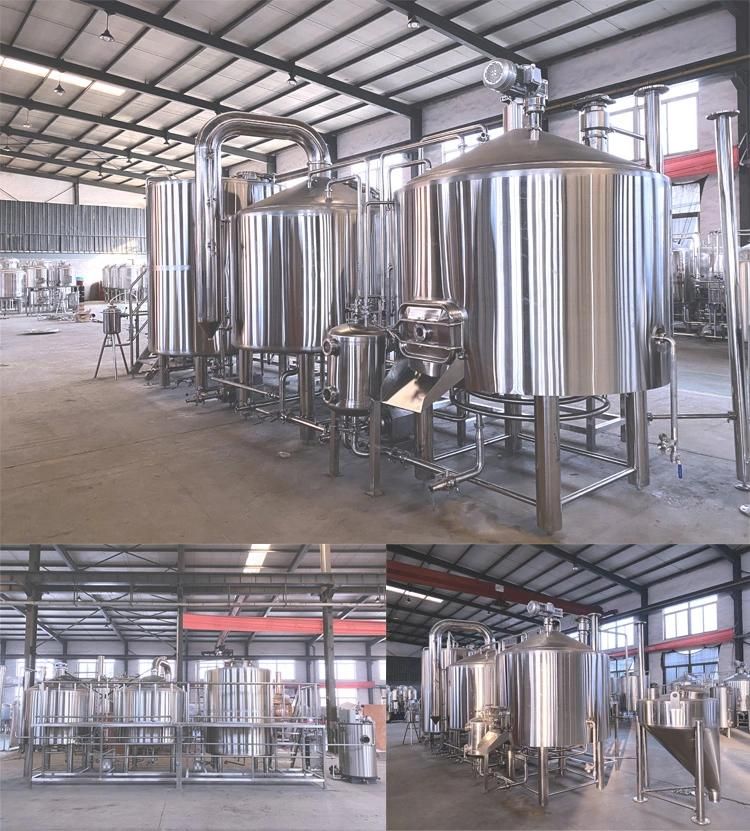

Mash System

Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.



The main part of equipment in this system are made of SUS304, SS316 reaching international standard level.(Zunhuang company also can customized high quality copper equipment according to user place).



All the pipes and vales among the whole equipment are connected by sanitary joint for easy to connect, install, uninstall, move and alter.Now Zunhuang equipment adopt electric heating, steam heating, gas heating and direct fire heating method on mash heating system.

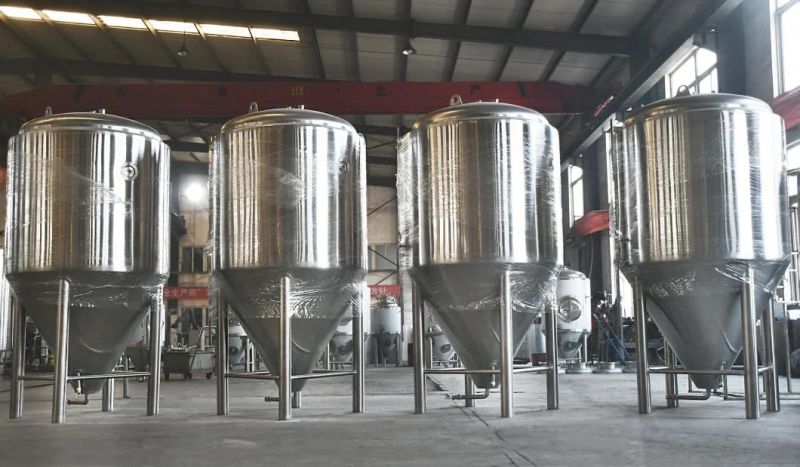

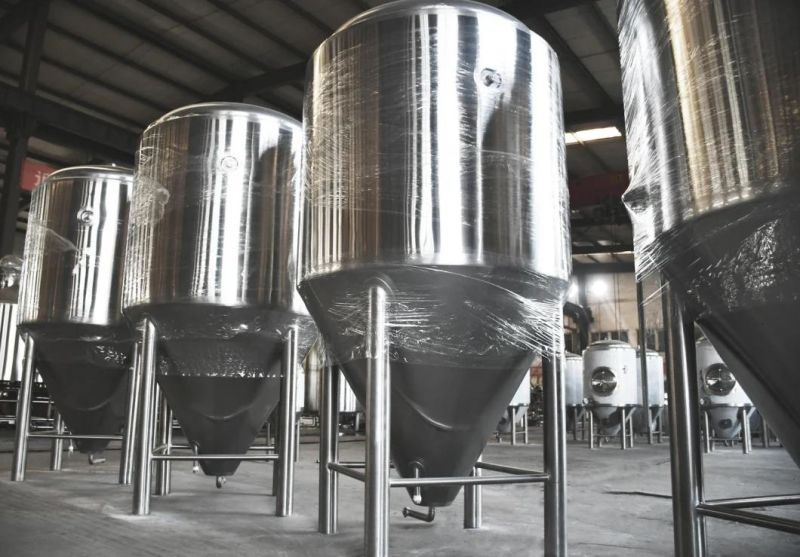

Fermentation System



The fermentation tank adopt cooling jacket and two-stage cooling refrigerant control mode at the cone and cylinder. So such design and cooling method to control the flow of the cooling liquid state in fermentation tank by the size of the two-stage cooling refrigerant flow. It will improve heat transfer efficiency and cooling rate, faster cooling, and reduce cooling costs and high economic efficiency equipment commercial operation.

Tank date:

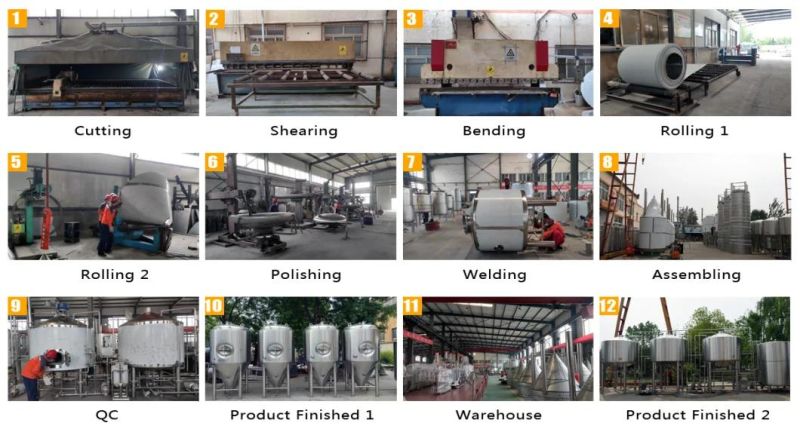

1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space2. Interior shell thickness 3-6mm, Exterior shell=2mm3. 100% TIG welding with pure argon gas shield4. Interior finish: pickled and passivated, external polished, 80mm insulated5. Test pressure 3 bar, working pressure 1.5 bar6. Glycol zones (Both on side and concial/bottom)7. 60°conical bottom for Fermener, Shadow less side man way8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top9. Mechanical relief valve 3 bar on CIP arm with pressure gauge10.Adjustable tank leveling padsProduct Process

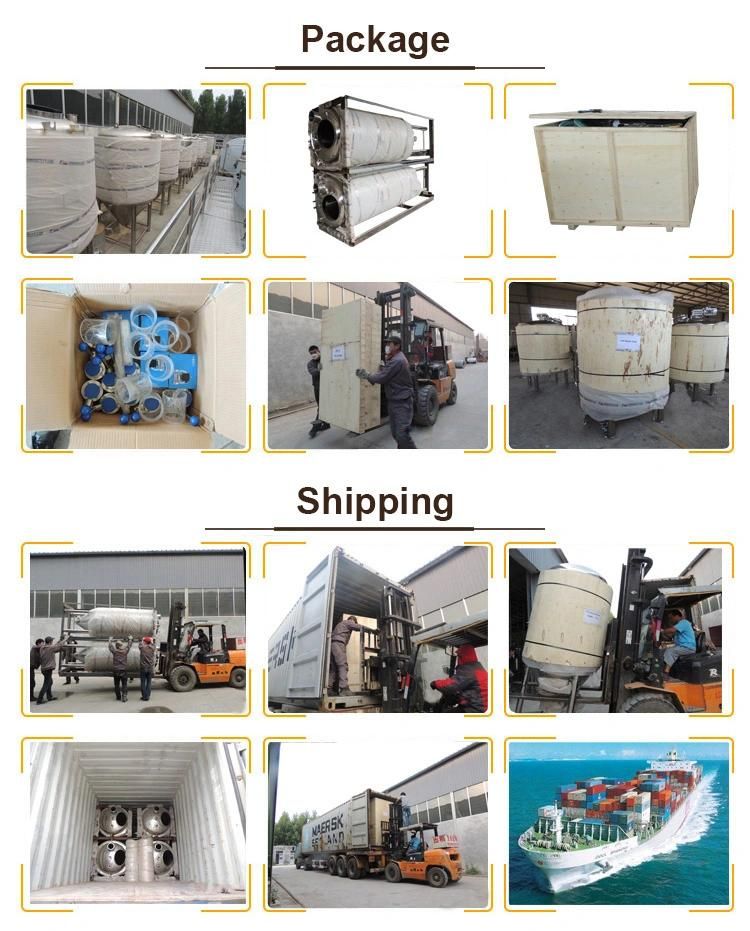

Packaging & Shipping

1. Ocean shipment,railway shipment,express delivery.

2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.

4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.
