• Model NO.：GD300P
• Electric Power：27kw,380V
• Total Length：19m
• Max Candy Weight：as Per as Candy Size
• Room Condition：Temp20~25°c
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：TGmachine
• Origin：China
• HS Code：84382000
• Production Capacity：300kg,H

Basic Info.

Model NO. GD300P Electric Power 27kw/380V Total Length 19m Max Candy Weight as Per as Candy Size Room Condition Temp20~25°c Transport Package Wooden Case Specification CE, ISO9001 Trademark TGmachine Origin China HS Code 84382000 Production Capacity 300kg/H

Product Description

GD300P FLAT LOLLIPOP Depositing Line with PLC control with high quality

FEATURES:
The processing line is a compact unit which can continuously produce various kinds of lollipop under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

1. PLC /computer process control available;
2. An LED touch panel for easy operating;
3. The standard production capacity is 100~150kg/h;
4. The main parts is made of hygienic Stainless Steel
5. Optional (mass) flowing controlled by Frequency inverters ;
6. In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7. Dosing pumps for the automatic injection of colors, flavors and acids;
8. Use  AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
9. "two-color stripe depositing", "two-color double layers depositing", "central filling", "clear" lollipop and etc. can be made.
10. Moulds can be made according to the lollipop samples provided by the customer.

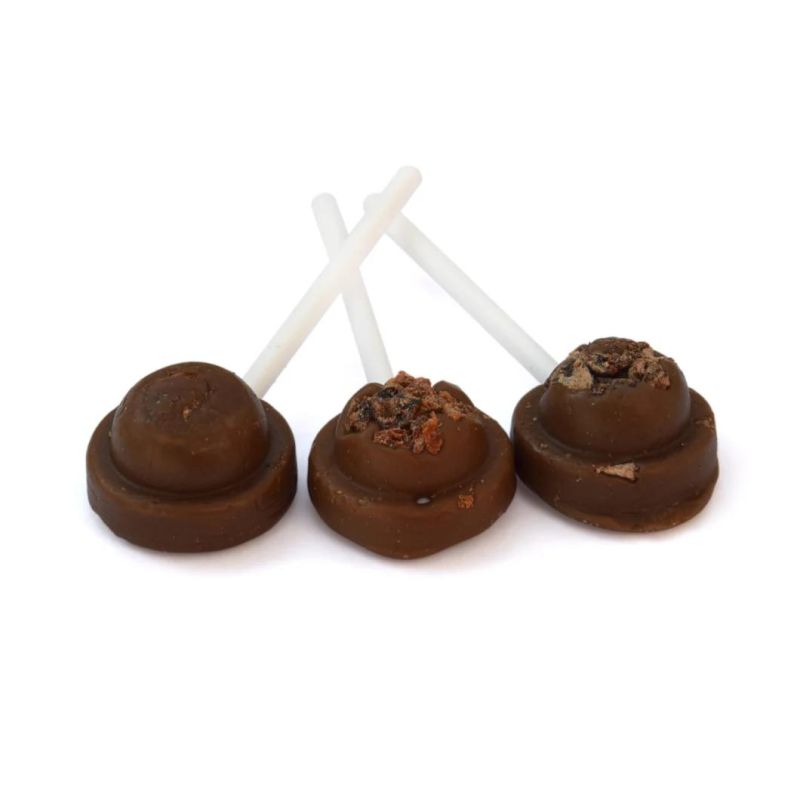

CANDY SAMPLES:

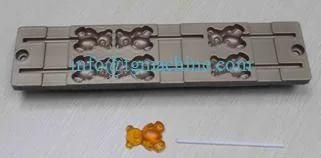

CANDY MOULD SAMPLE:

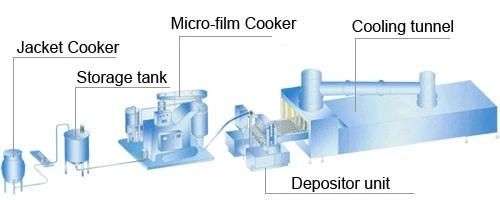

PROCESS FLOWING LAYOUT CHART:




TECHNICAL SPECIFICATIONS:

Model	GD300BF
Output(kg/h)	300
Max lollipop weight	As per the lollipop size
speed	25~30 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V
Total length(m)	19
Gross weight	5000 kgs

Warranty:
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (FREE). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
