Automatic Roller Mill with Maize Flour Mill and Corn Flour Mill
Shijiazhuang Hongdefa Machinery Co., Ltd.- After-sales Service：Provide Installation
- Warranty：5 Years
- Type：Maize Mill
- Application：All, Beans, Wheat, Starch, Rice flour, Corn
- Voltage：380V
- Appearance：Vertical
Base Info
- Model NO.：HDF
- Press Materials：Corn
- Press Series：Maize Mill Plant
- Condition：New
- Customized：Customized
- Processing：Maize Mill
- Quality Standard：European Standard
- Control System：PLC Control System
- Cleaning：Corn Cleaning Machines
- Dampering：Double Floor Damper
- Degerminating：Degermintor
- Milling：Corn Roller Mill
- Packing Section：1kg.2kg. 10kg and 50kg
- Steel Pipes：Steel Stainless Pipes
- Roller Mill：Automatic Roller Mill
- Transport Package：Container, Suitable for Sea Transportation
- Specification：standard
- Trademark：HDF
- Origin：Hebei, China
- HS Code：870000
- Production Capacity：30sets, Year
Description
Basic Info.
Model NO. HDF Press Materials Corn Press Series Maize Mill Plant Condition New Customized Customized Processing Maize Mill Quality Standard European Standard Control System PLC Control System Cleaning Corn Cleaning Machines Dampering Double Floor Damper Degerminating Degermintor Milling Corn Roller Mill Packing Section 1kg.2kg. 10kg and 50kg Steel Pipes Steel Stainless Pipes Roller Mill Automatic Roller Mill Transport Package Container, Suitable for Sea Transportation Specification standard Trademark HDF Origin Hebei, China HS Code 870000 Production Capacity 30sets/ YearProduct Description
automatic roller mill with maize flour mill and corn flour mill1. factory manufacturer for supplying 10t/day to 500t/day.

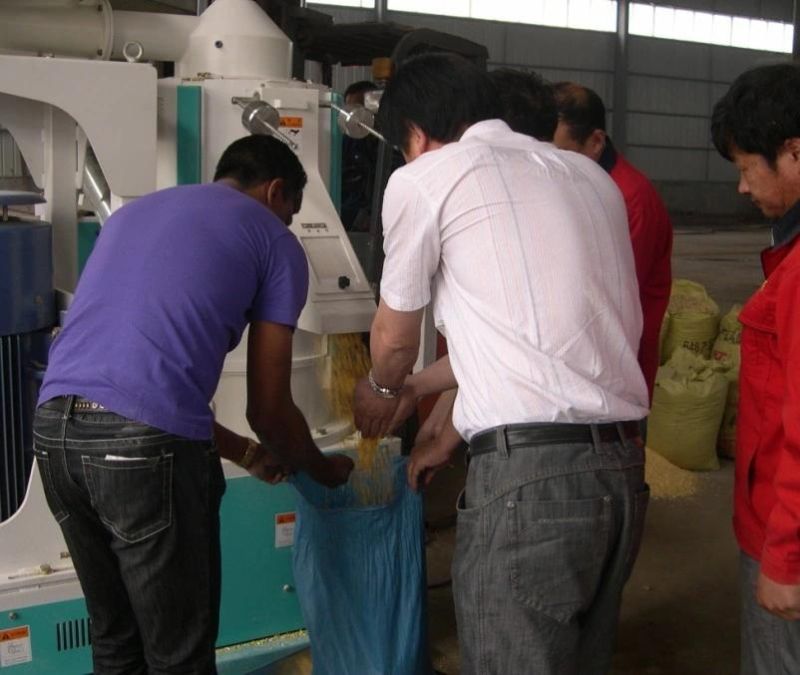

2. most welcome come and see all running corn mill in our factory.
Technical data:
WORSHOP REQUEST: (L*W*H) 37M*11.5M*22.5M FIVE FLOOR BUILDING;
CONSTRUCTION REQUEST: 400KG/
(NOT INCLUDE THE FINISHED PRODUCT BIN)
TOTAL POWER IS AROUND 1100KW(DEPENDING ON EXACTLY DESIGN).
The Main Machine is: Maize cleaner; Moinsture damper, degerminator, aspirator, roller mill, plansifter, auto packing machine.
The Feature of each machine.
1. Roller Mills
1)The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible;
2) a pulse generator automatically adjust the feed material at the entrance doo;
3) bearing SKF;
4) temperature monitor (option).
2. Roller: Two different alloys with a mixing ratio allow the perfect balance to be achieved between hardness and roughness.
3. Plansifter
1) Material: High-strength alloy steel;
2)up and down sifter circles with steel plate overall by bending;
3)Transmission system using spring force component institutions;
4)Sieve frames of wood coated with synthetic resin, without backwire;
5)All the inside walls as well as the doors are provided with high-grade insulation;
6)Vertical and horizontal clamping system.
4. Degerminator: Dry degermination with low fat content. Combined with Europe, Asia and Africa Technology. Multi-faceted sieve tube design, the screen. The high-quality stainless steel nitriding treatment.
5. Gravity grading sifter: Combined globoidal and Plane sifting form, different weight nature classification
6. Dampener: Stainless steel. Bi-directional screw, Prevent free water, an intensive Intermixing(maize).
7. Bucket elevator and conveyor with reducer, High-quality carbon steel painting, stainless steel(option).
8. PIPE: Stainless steel.
9. Moisture bin and store bin: Stainless steel (for maize ).
10. Plant Control System:
Option 1: Mimic board, auto-control; CCTV surveillance system;
Option 2: PLC control system with CCTV surveillance system realize Seamless integration.
11. Electronic parts: Siemens/Delixi.
| project which we have done | country |
| 150T/24h corn flour mill | zambia |
| 500T/24h corn flour mill | South Africa |
