• Model NO.：6218
• Model：6218
• Power：1.8 Kw
• Voltage：210-230V
• Dimension (Net)：725mmx440mmx770mm
• Dimension (Packing)：815mmx530mmx950mm
• N.W.：105 Kg
• G.W.：120 Kg
• Transport Package：Carton with Pallet
• Specification：CE
• Trademark：SPACE
• Origin：Ningbo, China
• HS Code：8418699020
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. 6218 Model 6218 Power 1.8 Kw Voltage 210-230V Dimension (Net) 725mmx440mmx770mm Dimension (Packing) 815mmx530mmx950mm N.W. 105 Kg G.W. 120 Kg Transport Package Carton with Pallet Specification CE Trademark SPACE Origin Ningbo, China HS Code 8418699020 Production Capacity 10000 Units/Month

Product Description

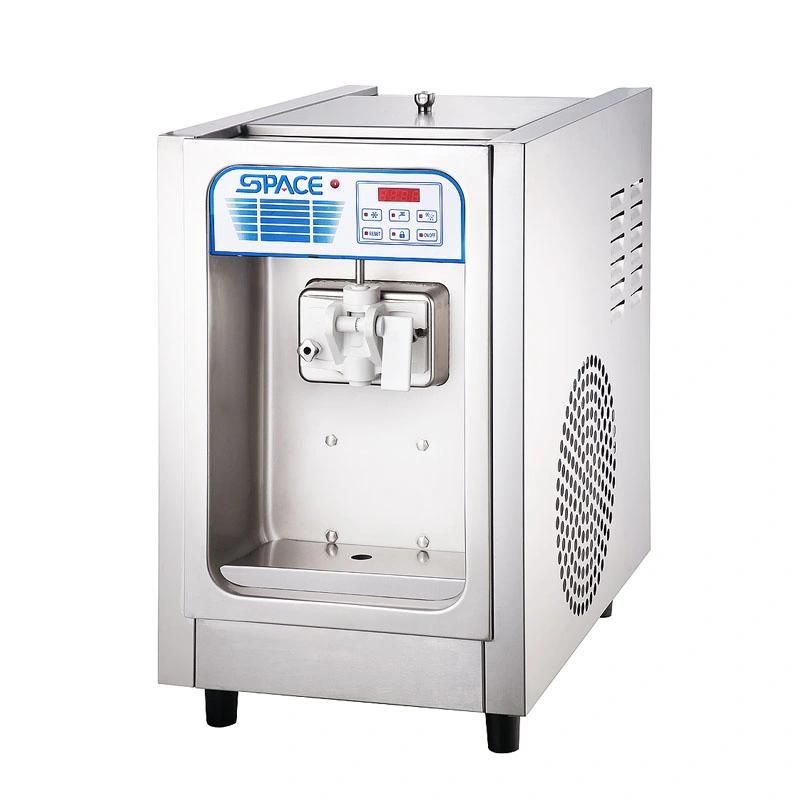

Soft serve ice cream 6218






FEATURE
Offer all the popular soft serve variations from low or non-fat ice creams to custards, yogurt and sorbet.

FREEZING CYLINDER
One, 1.8 Liter

MIX HOPPER
One, 11 Liter
Separate hopper refrigeration(pre-cooling)maintains mix below 4.4º C.

MICROPROCESSOR CONTROLS
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

MIX LOW LIGHT
The mix low light turns "ON" to alert operator to add mix, preventing cylinder over freezing.

STANDBY
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 º C during long no-use periods.

COUNTER
Records number of dispenses per day and total number of dispenses.

OUTPUT
18 Liter/Hour
(At 4 º C Liquid&24º C Ambient )

ELECTRICAL REQUIREMENTS
One dedicated electrical connection is required. Make voltage steady when machine is ON.

MAIN MOTOR
One, 1.25HP

REFRIGERATION SYSTEM
One compressor: 3100 BTU/hr. R404A
Separate hopper refrigeration(Pre-cooling): One main compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )

AIR COOLED
Minimum clearance of 152mm on both sides to achieve optimum performance.
