• Model NO.：TUNE-ST500
• Transport Package：Container
• Trademark：TUNE
• Origin：China
• Production Capacity：500kg,H

Basic Info.

Model NO. TUNE-ST500 Transport Package Container Trademark TUNE Origin China Production Capacity 500kg/H

Product Description

Product Description

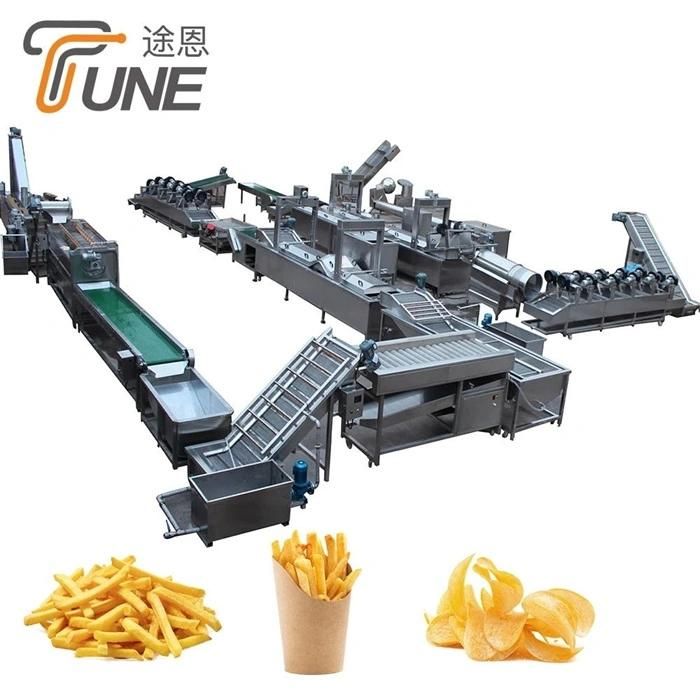

Frozen french fries production line machine

Potato chips production line machine

This Full automatic frozen french fries production line machine and fully automatic potato chips production line is mainly composed of potato washing & peeling machine, cutting machine, blanching machine, dehydrator, frying machine, deoiling machine, flavour machine and packing machine. Easy operation, high output and good production effect. Potato chips and French fries seem very smooth and uniform. Besides,the thickness could be adjusted freely. Apart from making potato chips, French fries, you could also make Frozen French fries(equip with IQF quickly freezer).
The automatic potato french fries production line combines the procedures of make fresh natural potato into fries together.

Input 1000kg potatoes per hour, come out 600-700kg frozen fries.

Potato RequirementsOval in shape Dry material content≥20% Sugar content≤0.4%;
Length ≥68mm Color outside is yellow Color inside is white
Less and small bud hole

Equipment Description

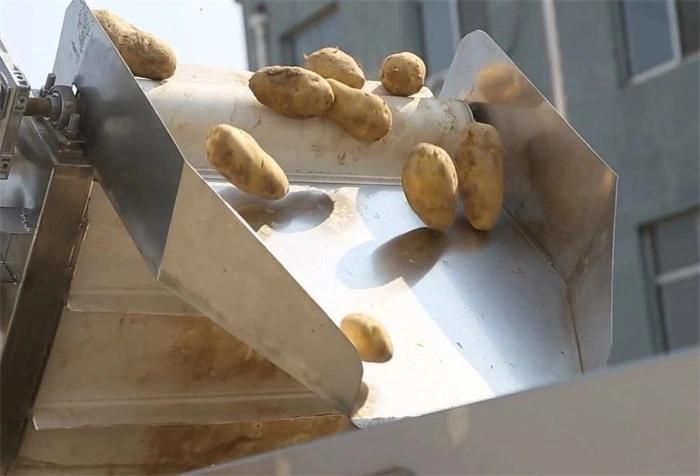

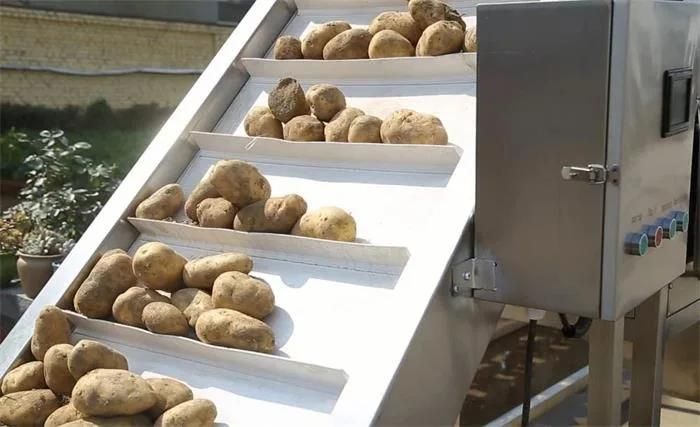

1. Hoister with water spray
It is used to preclean potato,soften the potato skin, then hoist potatoes into washing and peeling machine.

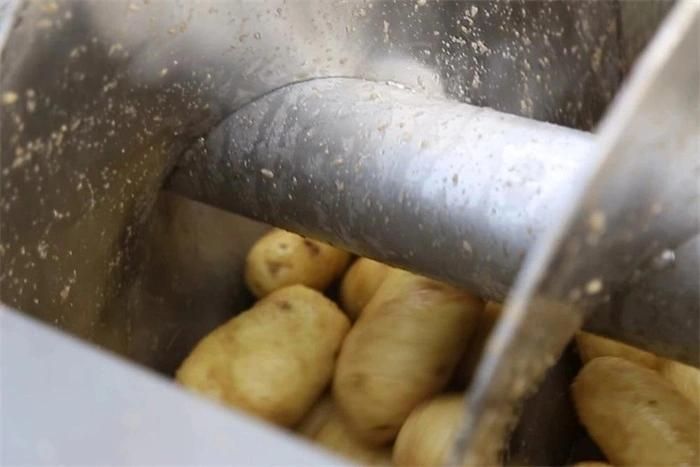

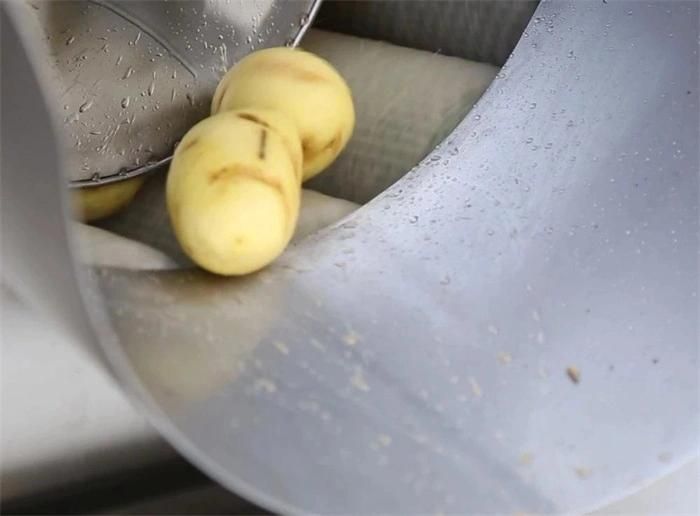

2. Washing and peeling machine
This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely.
3. Inspecting table
This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.
4. Water bucket elevator
This machine is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.
5. Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important.

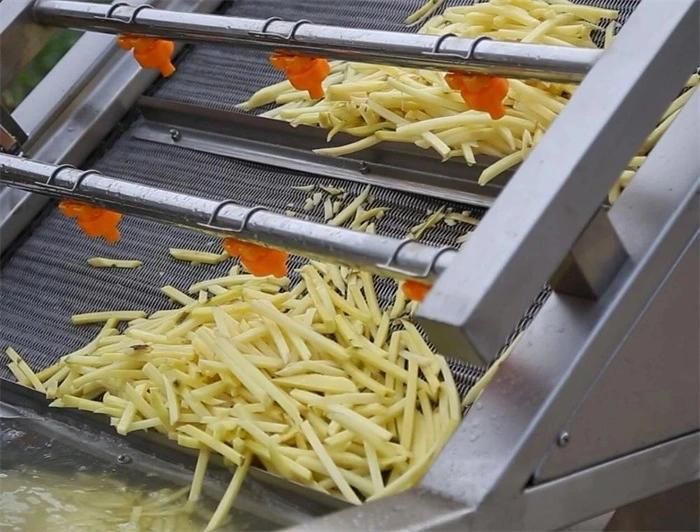

6. Rinsing machine
This machine used to washing potato starch and protect potato from oxidation, keep its original color.
7. Blanching machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the reducing sugar, also after blanching,it will get inner soft taste of french fries.
8. Vibration de-water machine
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.
9. Air-dryer machine:Remove water, drying fries
10. Continuous frying machine:This machine is used to unified fry sticks in short time.
11. Vibrating de-oil machine:This machine is used to de-oil with the vibrating.

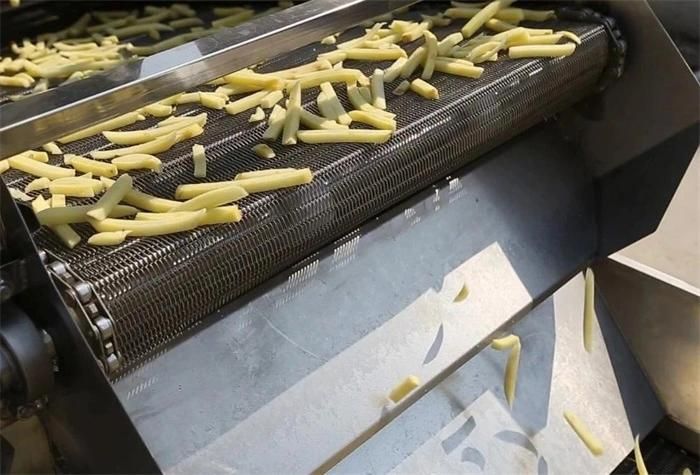

12. Cooling line:Use fan to blow off the water on stick surface, then deliver sticks into the freezer.
13. Conveyor :Used between cooling line and quick-freezing machine.
14. Fluidized-type freezer
It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality.
15. Conveyor:Used between quick-freezing machine and packing machine.
16. Automatic weighing and packing machine
It is used to pack the frozen french fries automatically, including bucket Elevator.

1:Hoister	2400x700x1600mm	10:Air-dryer machine	6000x1100x1600mm
2:Washing&peeling machine	3400x900x1500mm	11:Hoister	1800x800x1300mm
3:Inspecting table	4000x800x900mm	12:Continuous frying line machine	6000x1200x2400m
4:Potato cutter	950x800x950mm	13:Oil filter	400x400x800mm
5:Water bucket elevator	2400*800*1500mm	14:Vibration de-oil	1800x1000x1200mm
6:Miscellaneous machine	3000x1000x1300mm	15:Drying line	6000x1100x1600mm
7:Rinsing line machine	4000x1200x1400mm	16:Hoister	3000x800x2000mm
8:Blanching line machine	6000x1200x1400mm	17:IQF Tunnel Freezer	8000x3900x2900mm
9:Vibration de-water machine	1800x1000x1200mm	18:Automatic weighing and packing machine	3000x3000x2600mm

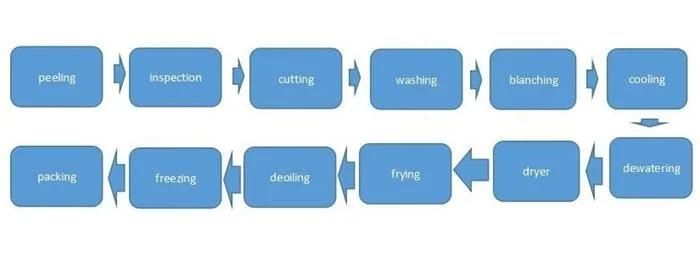

Processing Procedure Details
