• Model NO.：6LN-15-A
• Condition：New
• Customized：Customized
• Capacity：600-700kg,H
• Weight：1680kg
• Advantage：High Efficiency
• Quality：Top Level
• Warranty：24 Month
• Service：24hours Online Service, Field Installation
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Power with Husk Crusher：26.25kw
• Power Without Husk Crusher：19.25kw
• Transport Package：Standard Packing
• Specification：3200*2600*2900mm
• Origin：China
• Production Capacity：200 Set,Sets Per Month

Power

26.25KW  with husk crusher

19.25KW without husk crusher

Capacity

600-700KG/h

White rice output rate

≥ 71%

Size

3200*2600*2900mm

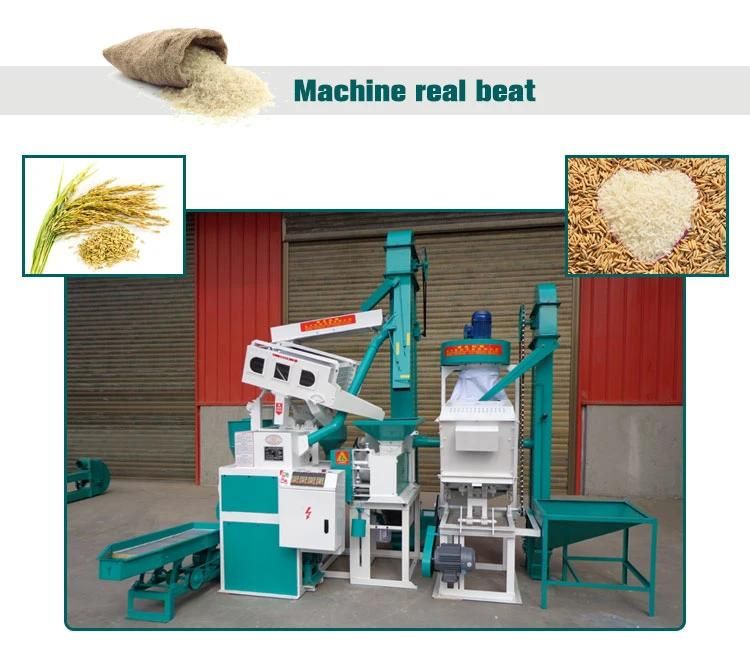

Rice milling plant of brief introduction

This model is a special big scale equipment for paddy rice processing .Named 6LN-15-A.It is composed of feeding hopper , paddy husking unit , separating unit for brown rice and chaff ,milling unit and air jet blower ,etc.

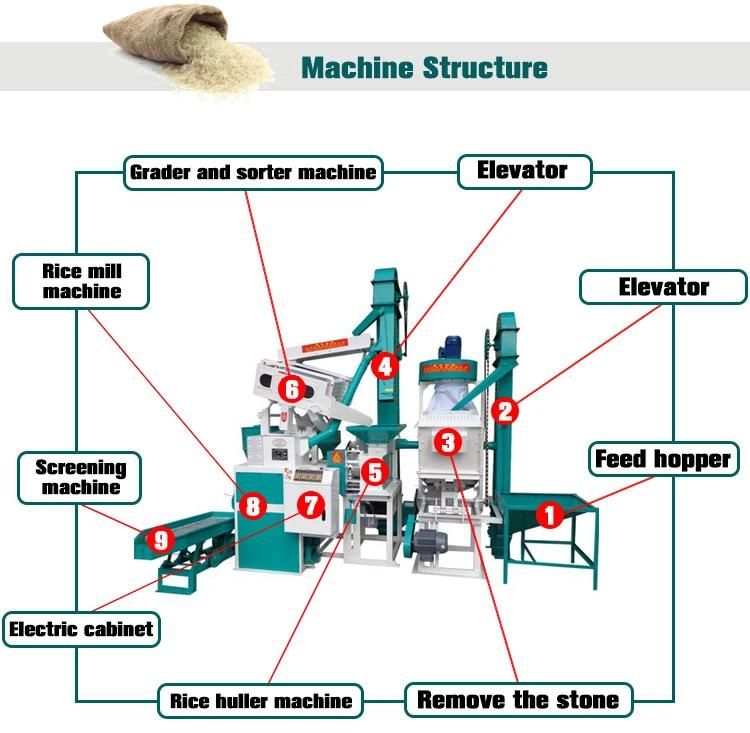

Rice huller machine consists of 9 parts, and is a whole processing line to process the rice, removing the rice husk and other impurities during working. Its capacity is 600-700kg/h and you get rice with high quality.  In recent years, we export this paddy miller to such countries as Thailand, Nigeria,Vietnam, Nigeria etc, and those countries mainly market for it, thus our company has already built long-time partnership with them. In addition, warranty for integrated rice milling unit is 2years.

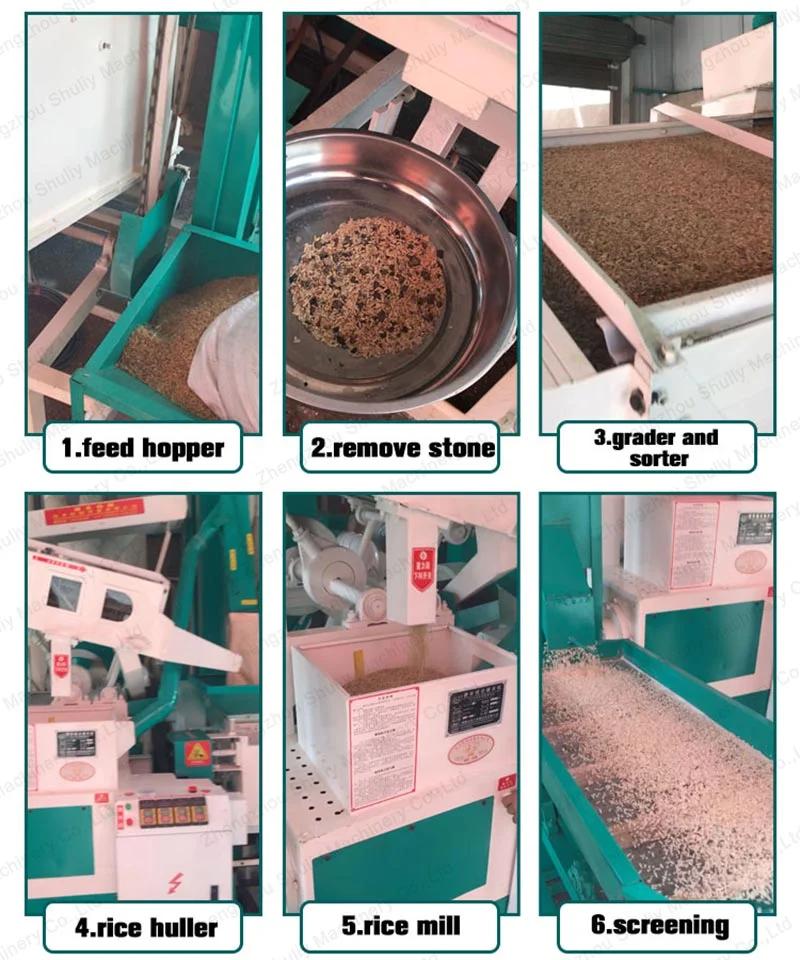

1

Feed hopper

Feeding paddy rice to machine

2

Elevator

Single elevator, delivering rice to destoner

3

Destoner

Removing the stone and impurity from rice

4

Rice husking machine

removing the rice husk.

5

Elevator

Double elevator, delivering rice to screening machine

6

Screening machine

Classifying the impurity and rice

7

Electric cabinet

Control the electricity of whole machine plant

8

Rice mill machine

Grind brown rice into white rice

9

Grading sieve for broken rice

Remove the broken-rice, and get the good rice,

Rice milling machine plant of advantages

1. Rice milling machine machine is equipped with a rational layout ,compact structure and little noise in operation .

2. Rice processing machine is light and easy to operate with less power consumption and high productivity

3. The model can produce white rice with high purity that meets national standard, and with less chaff containing and broken rice,so it is a very good paddy rice processing machine for the countryside.

Rice milling machine of working principle

1. Paddy first goes into machine through vibrating sieve and magnet device ,and then passes rubber roller for hulling .

2. After air blowing and air jetting to the milling room ,the machine can finish the process of cleaning  ,husking ,air blowing selecting , milling and polishing in succession .

3. The husk ,chaff ,runtish paddy ,and white rice are pushed out of machine respectively .

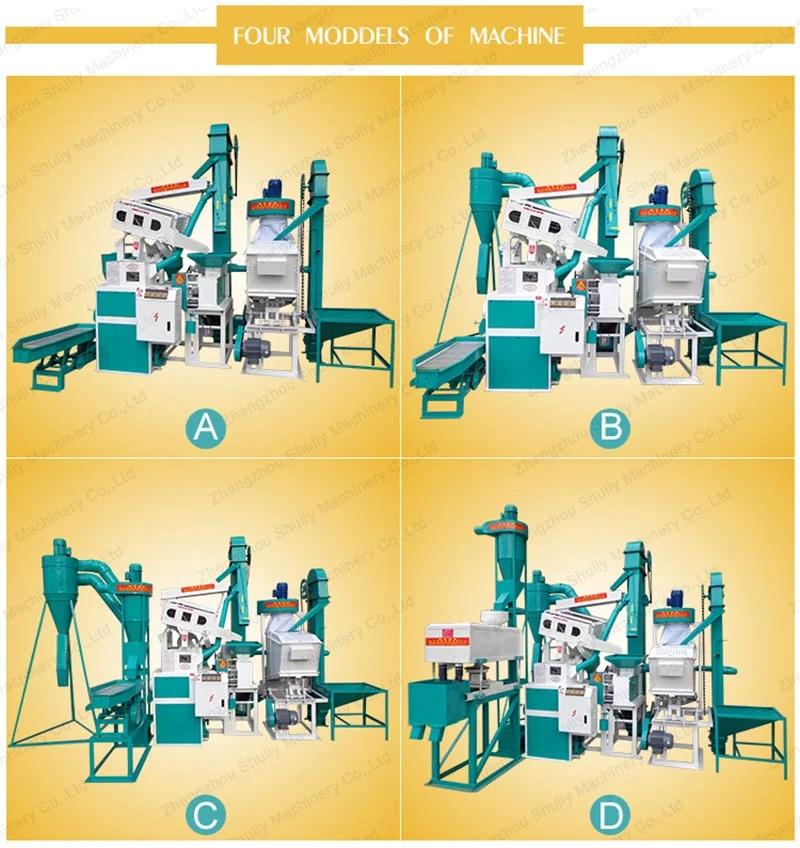

We have four main machine types, you can choose according to your needs.

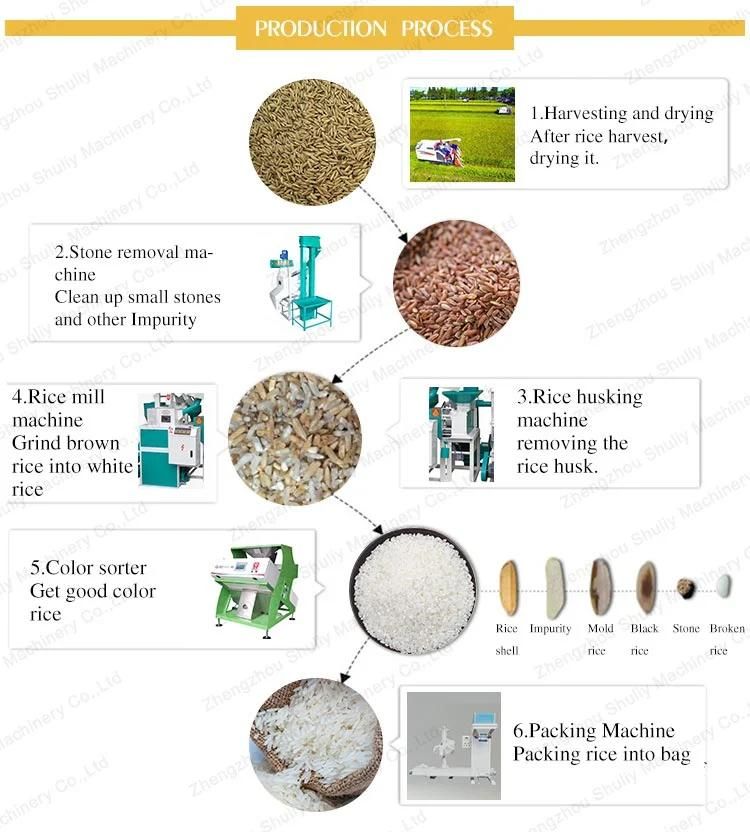

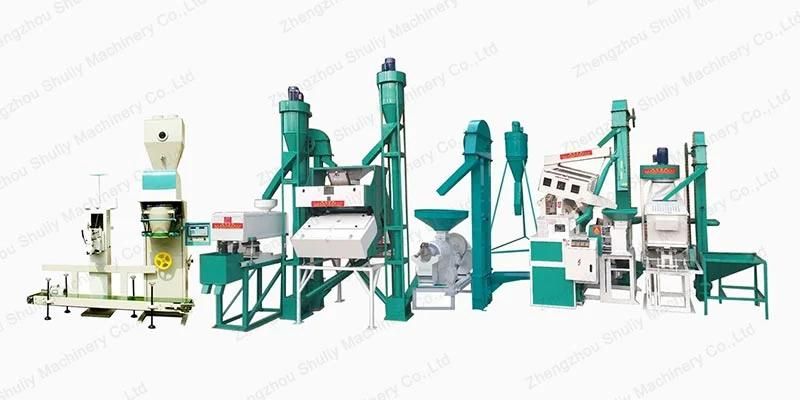

If you want to buy a complete commercial rice milling machine, we have a complete production line.Including

1.Feed hopper  2.Elevator 3.Destoner machine  4.Elevator  5.Rice huller machine  6.Paddy separator  7.Electric cabinet  8.Rice mill machine  9.Discharge rice chaff  10.Elevator  11.Rice polishing machine  12.Elevator  13.Color sorter  14.Elevator  15.Screening machine  16.Packing machine
