Top Quality Low Price with Cooling System Commercial Coffee Roaster

Zhengzhou Sunshine Machinery Co., Ltd.
  • Usage：Coffee Bean
  • Power Source：Electric
  • Timing Device：With Timing Device
  • Type：Roasting Machine
  • Voltage：380V
  • Customized：Non-Customized

Base Info

  • Model NO.：6kg
  • Color：Any Color Available
  • Votage：220V
  • Capacity：18-25kg,H
  • Temperature：0-300 Degree Celsius
  • Power：115W
  • Bach Volume：1-7kg
  • Cooling Time：1-2min
  • Transport Package：Wooden Case
  • Specification：ISO9001
  • Trademark：Sunshine
  • Origin：Henan, China
  • HS Code：84792000
  • Production Capacity：1000 Sets Per Month

Description

ModelBY-6KG Commercial gas coffee bean roasterLoading capacity1000g-7000g/batchCapacity/hour18-25kgBaking time12 minutes for light, 15 minutesRoaster size(L*W*H)1500mm*900mm*1600mmDust cyclone collector450*400*1300mmHost&mixing motorAC 220V 50/60Hz 200w&100wFans of cooling&regulatorAC 220V 50/60Hz 370w&200wHeating source byL propane Gas, N-gasGas type total wattage1070wGas consumption0.4kg/hN.W280kg(roaster)+40kg(cyclone)G.W400kgElectric heating type Total wattage9600w+1070w=10670w
Features:

1.Batch capacity: 6kg

2. Roasting time: 15-20minutes/Batch

3.Production: 18-24kg/h, 144-192kg/day

4. Machine Dimension: 1520*960*1650(mm)

Cyclone Diameter*Length: 500*1500(mm)

5. Machine Weight: 350kg

Cyclone Weight: 42kg

6.Voltage/Frequency: 110-220V/50-60Hz

7.Heating mode: NG/LPG/Propane

8. Gas Volumn:1kg/Hr

9. Normal temperature rage: 160-220 degree (Celsius and Fahrenheit)

10. Main motor power: 200w

11.Smoke extractor power: 375w

12.Cooling Stirring motor power: 200w

     Total Cooling and motor power:745w

13.All body is made of High temperature resistant stainless steel.

14. Stainless steel contact roaster and cyclone

15. Omron PID Controller.( PID or ON/OFF)
     ADDKA Motor Infinite speed control system can suitable different kinds of beans roasting.

16.There is a air regulation tunner you can adjust wind speed.

17.There is a gas regulator you can adjust fire big/small..

18.Electric igniter.

19. It can add ET(USD150),data logger(USD150)
     Data logger connect thermocouple and computer, can log by computer.

20.Semi-hot air or half direct fire. Below beans by direct fire and above beans heated by hot air.

21.Fuse and leakage protector.

22.LED deluxe Lamp.

23. CE,ROHS,ISO9001

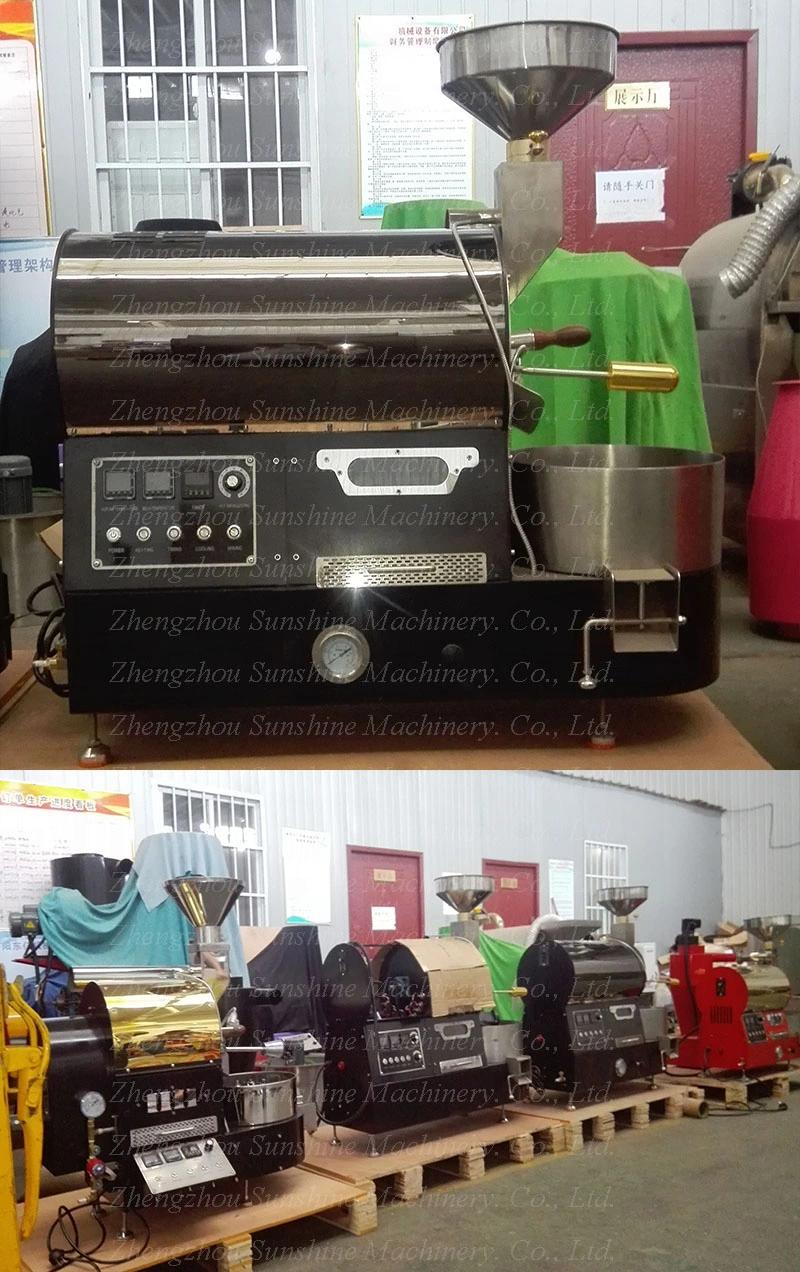

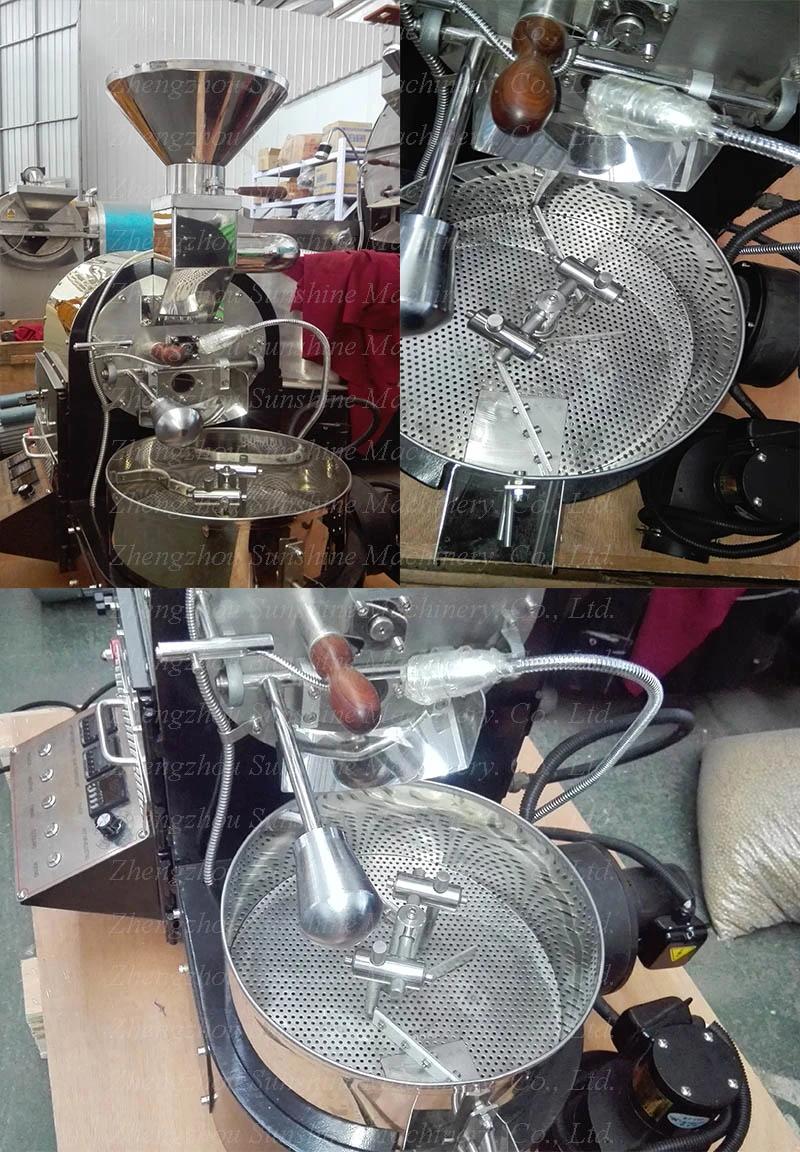

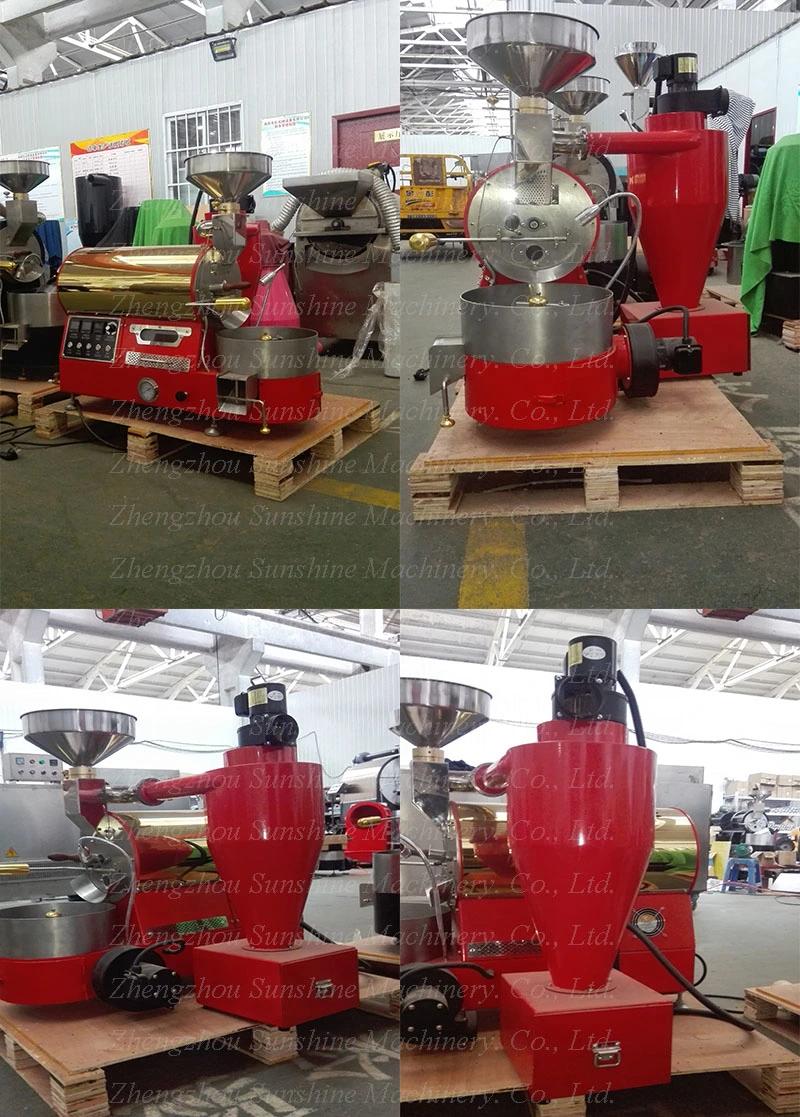

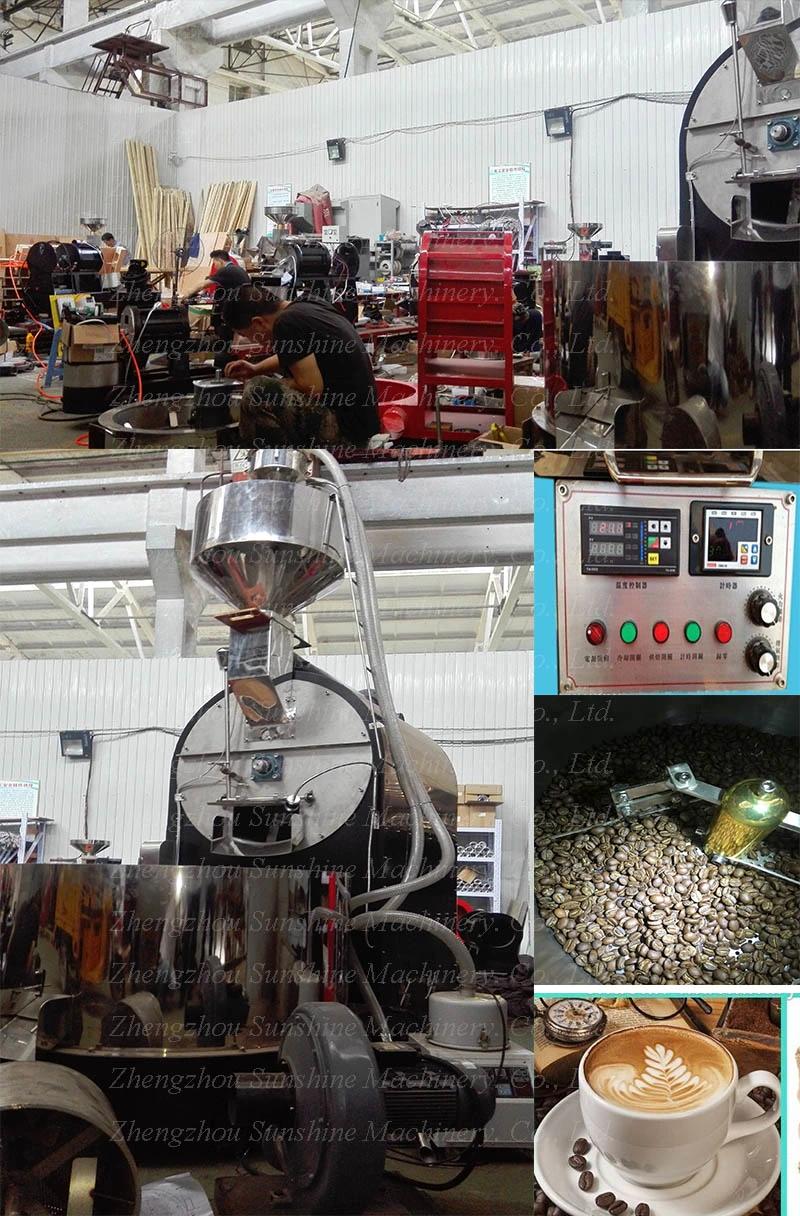

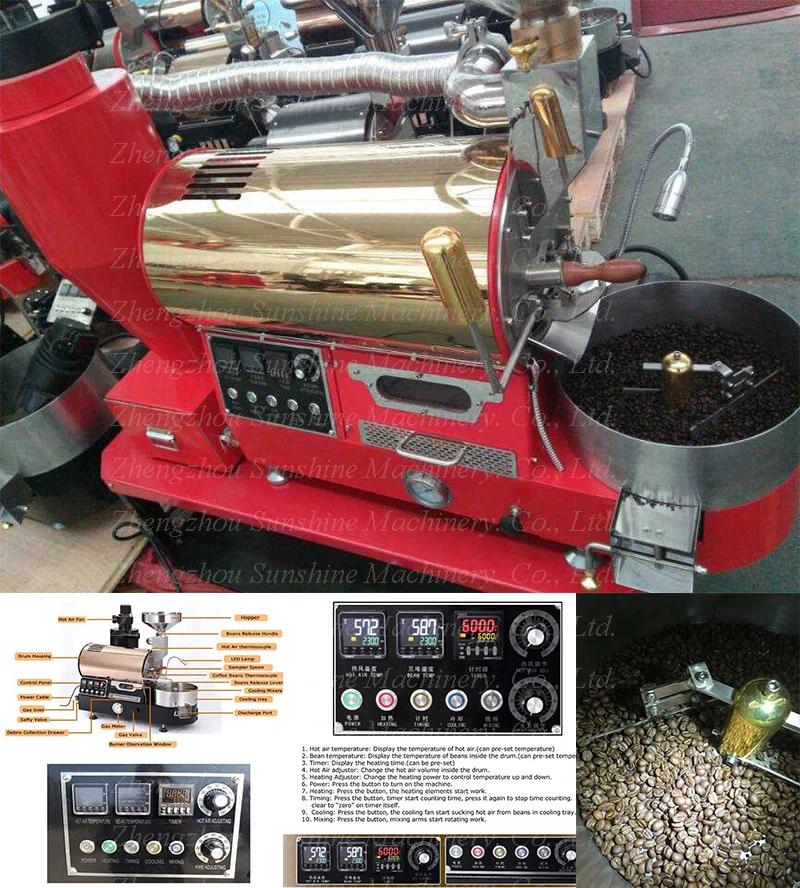

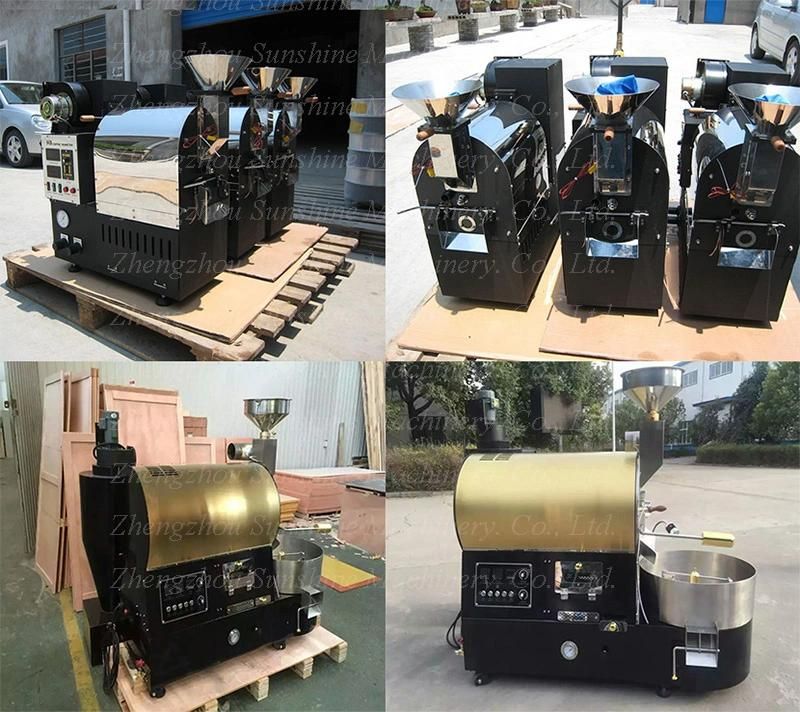

Details pictures:Coffee Roasters500g Small Coffee Roaster Machine Home Coffee RoasterPackage500g Small Coffee Roaster Machine Home Coffee RoasterShowroom500g Small Coffee Roaster Machine Home Coffee RoasterDetails parts500g Small Coffee Roaster Machine Home Coffee RoasterDetails parts of coffee roaster500g Small Coffee Roaster Machine Home Coffee RoasterWorkshop500g Small Coffee Roaster Machine Home Coffee Roaster
Note:
1, The coffee roaster can use electricity or gas, you can choose the suitable heat way.
2, The coffee roaster with small noise, so you can ignore the noise.
3, The max heat temperature can reach 40 degree, but in normal situation, the temperature is no more than 300 degree.
4, The coffee roaster can be with data record on computer.
6, If 500g, we can pack it by paper case. Other models, we take the wooden case package.
