• Model NO.：YLVC
• Material：Stainless Steel
• Transport Package：Wooden Case
• Specification：1900*1700*2500mm
• Trademark：YOULU
• Origin：China
• HS Code：8438900000
• Production Capacity：30set,Month

Basic Info.

Model NO. YLVC Material Stainless Steel Transport Package Wooden Case Specification 1900*1700*2500mm Trademark YOULU Origin China HS Code 8438900000 Production Capacity 30set/Month

Product Description

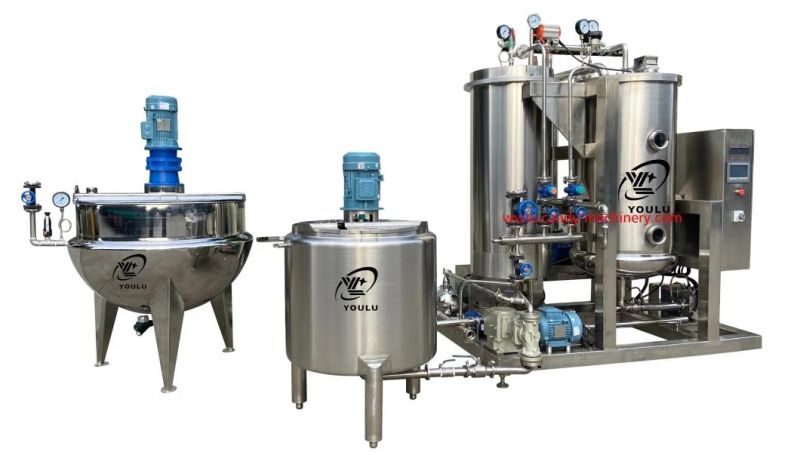

YLJV Jelly candy vacuum cooker consist of dissolving tank ,heating system storage tank and vacuum cooker ,It is the most advanced jelly candy vacuum cooker . The jelly candy vacuum cooker  suitable for cooking of gelatin, pectin agar, carrageenan and other modified starch for jelly production. The vacuum cooker is consist of Pre-Cooker, vacuum chamber,Dosing pump,Unloading pump and automatic control system of the syrup to make high quality syrup.The material touched with food is food grade 304 stainless steel. It is the best way to use this cooker connect with jelly candy depositing production line.



Model	YLJV-300	YLJV-600
Power	16kw	20kw
Capacity	300kg/h	600kg/h
Air Consumption	0.5m3/min	0.5m3/min
Air Pressure	P=0.4-0.6Mpa	P=0.4-0.6Mpa
Steam Consumption	400kg/h	400kg/h
Steam Pressure	P<0.8MPa	P<0.8MPa
Water Consumption	2200L/h	2200L/h
Dimension	1900x1700x2500mm	1900x1700x2500mm
Weight	2200kg	2500kg
