• Model NO.：ZK16
• Machine Weight：About600kg
• Power(Kw)：5
• Capacity：About 8 Moulds,1 Bat
• Material：Carbon Steel
• Color：White
• Transport Package：Wooden Packing
• Specification：CE, ISO9001: 2008
• Trademark：tgmachine
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：1 Set,Month

Basic Info.

Model NO. ZK16 Machine Weight About600kg Power(Kw) 5 Capacity About 8 Moulds/1 Bat Material Carbon Steel Color White Transport Package Wooden Packing Specification CE, ISO9001: 2008 Trademark tgmachine Origin Shanghai HS Code 84382000 Production Capacity 1 Set/Month

Product Description

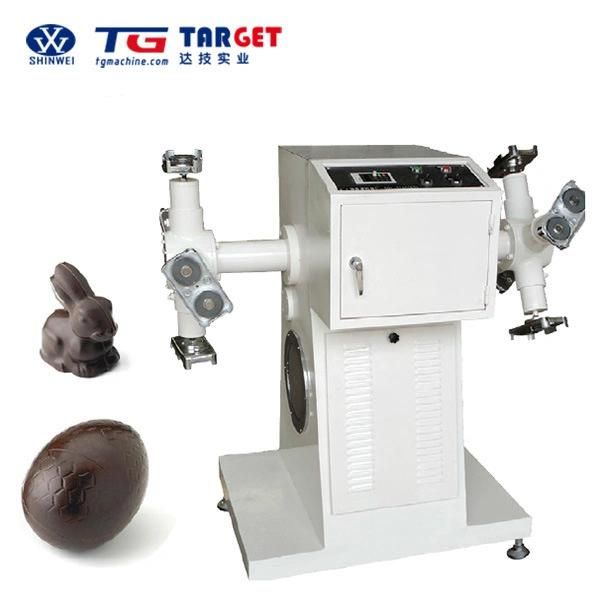

ZK16 spanning machine has 8/16 sets hollow chocolate moulds,the hollow mold is equipped with many kinds of patterns selected by buyer, three-dimensional contouring and unique hollow type chocolate products, hollow type chocolate products can be made out through rotational centrifugation operation principle.
Technical Parameters:

total power	about 1kw
voltage	380v/50Hz
Capacity	about 8 moulds/1 bat
speed adjust range	≤ 18rpm(stepless speed regulation)
machine weight	about600kg
dimension	1100mm*800m*1250mm
mould specification	(275mm*175mm)*2.
power motor	0.55kw
fan motor	0.04kw*2

Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement

After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
