• Model NO.：HB
• Application：Milk, Yogurt
• Customized：Customized
• Name：Heating and Cooling Tank Machine
• Material：SUS304
• Volume：500L-100, 000L
• Transport Package：Wooden Case
• Specification：GMP
• Trademark：UNIMACH
• Origin：China
• Production Capacity：200 Sets,Year
• Package size per unit product：1.20cm * 0.56cm * 1.33cm
• Gross weight per unit product：650.000kg

Basic Info.

Model NO. HB Application Milk, Yogurt Customized Customized Name Heating and Cooling Tank Machine Material SUS304 Volume 500L-100, 000L Transport Package Wooden Case Specification GMP Trademark UNIMACH Origin China Production Capacity 200 Sets/Year

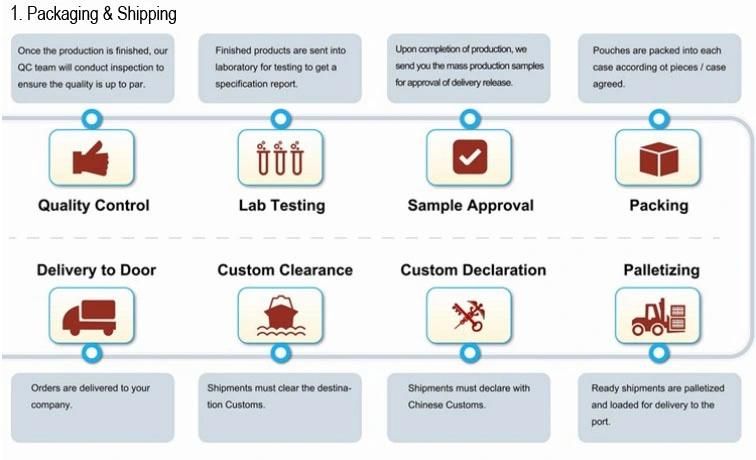

Packaging & Delivery

Package size per unit product 1.20cm * 0.56cm * 1.33cm Gross weight per unit product 650.000kg

Product Description

Specifications

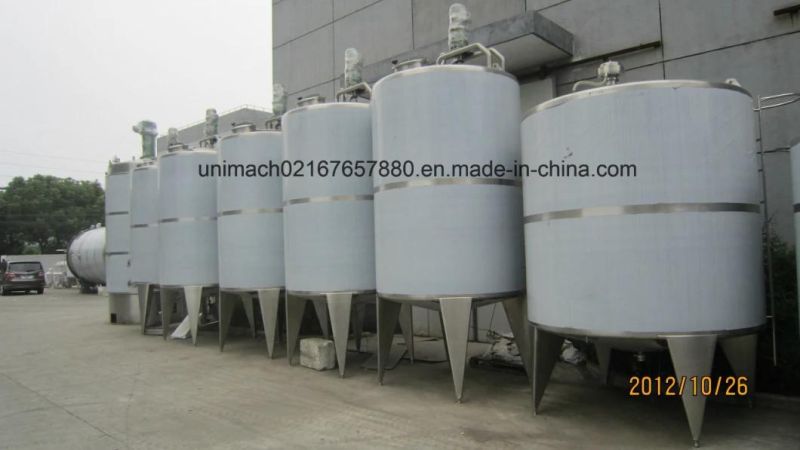

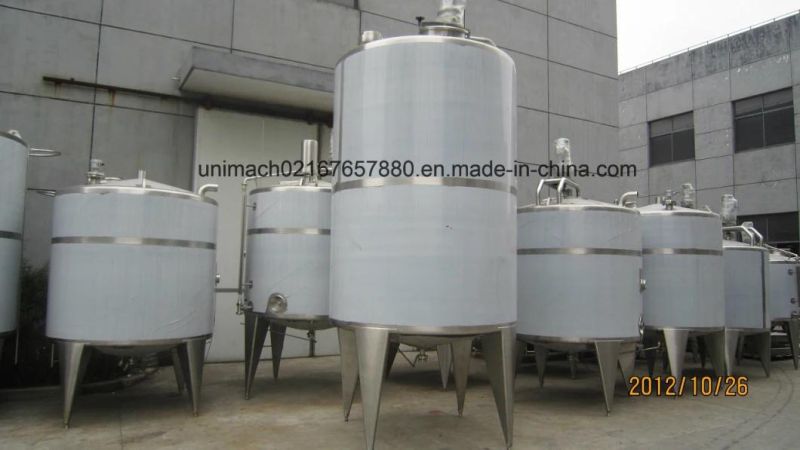

Stainless steel tank:
1. Material: SUS304 or SUS316L 2B sheet;
2. Volume 500L-100, 000L
3. ABB or SEW motor avaiable

The description of this stainless steel tank:

Use: Widely used in milk, juice, beverage and other food industries,
Pharmaceutical factory for storage of liquid product.

Material:
(1) all material used is high quality SUS304-2B stainless steel or SUS316L Stainless steel;
(2) internal layer thickness is 3mm;
(3) external layer thickness is 2mm;
(4) dimple jacket thickness is 1.5mm;

Structure: Cylindrical shape, conical top cover, angle of the top to cylinder is 15 degree, with skirt Base; With PU(Polyurethane) as heat insulation; With cooling dimple pad at tank wall and Base.

Other standard attachments:
Manhole, breath valve, CIP spraying balls, lifting hooks, glass tube level indicator, digital Show themometer, product inlet and outlet.
External surface is 2B, weld ground and clean by chemical, internal Polish to mirrow or 180 mesh, this is according to client detail requirements. Mixer can be made with supporter at bottom or just hanging without supporter.

Standard sizes are 500L-100, 000L.

We can design the exact structure according to client detail requirements.

Model	Effective  volume (L)	Internal  diameter (mm)	Total  height(H) (mm)	PU  Insulation (δ)(mm)	Jacket (δ) (mm)	In/outlet D  (mm)
ST-0.5	500	800	2140	50	1.5	φ38
ST-1	1000	1050	2380	50	1.5	φ38
ST-1.5	1500	1180	2550	50	1.5	φ38
ST-2	2000	1340	2760	50	1.5	φ38
ST-2.5	2500	1420	2940	50	1.5	φ38
ST-3	3000	1540	3050	50	1.5	φ38
ST-4	4000	1650	3200	50	1.5	φ38
ST-5	5000	1780	3250	50	1.5	φ38
ST-6	6000	1900	3350	50	1.5	φ38
ST-8	8000	2100	3800	60	1.5	φ65
ST-10	10000	2300	4050	60	1.5	φ65
ST-12	12000	2520	4450	60	1.5	φ65
