• Model NO.：KQ300L;
• Eletric Heating Cooking Kettle：for Meat, Sugar, Soup,
• Double Jacketed Kettle：Heating and Mixing
• Jacket Kettle Capacity：300L ,500L, 600L, 1000L
• Mixer：Scrapper Mixer, Normal Mixer
• Kettle Material：Ss 304,316
• Temperature：Above 90degree
• Kettle Type：Vertical ,Tilting
• Jacket Kettle：Heating by Electricity, Steam
• Item Name：Electric Heating Industrial Cooking Jacket Kettle
• Cooking Kettle Type：Electric Heating, Steam Heating, Gas Heating
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year


KQ100
KQ150
KQ200
KQ300
KQ400
KQ500
Capacity L

100
150
200
300
400
500
Jacketed pressure
 Mpa
                            < 0.2
Evaporation capacity
kg/h

40
50
65
75
100
150
Heat area
 m 2

0.45
0.76
1.0
1.15
1.44
1.90
Energy consumption
 kg/h

44
55
72
90
110
165
N.W.
 kg

190
210
230
320
360
485
LxWxH
 mm

800X650X830
1350X650X1100
1400X700X1100
1450X800X1110
1500X850X1140
1600X900


ACKET  Kettle PART
Capacity: 300L TO 1000L
Material: SS304
Heating by Electric (380V, 50HZ)
* Type: with Jacketed wall
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm


 * Accessories:
(1)Lid able to open on the top
(2) Tilt able 90degree
(3) Heat transfer oils (water) Inlet/outlet,

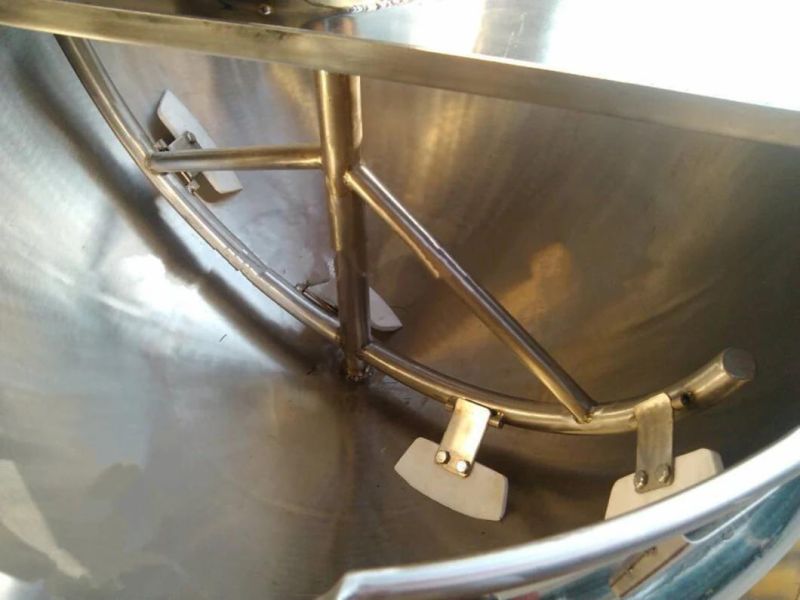

(4) Heating tube, (5) Electric cabinet, (6) Reduction gears,   (7) Rack & blender etc.
(8)The electric motor (0.75KW/1.1KW/2.2KW/3KW/5.5KW, 380V, 50HZ)

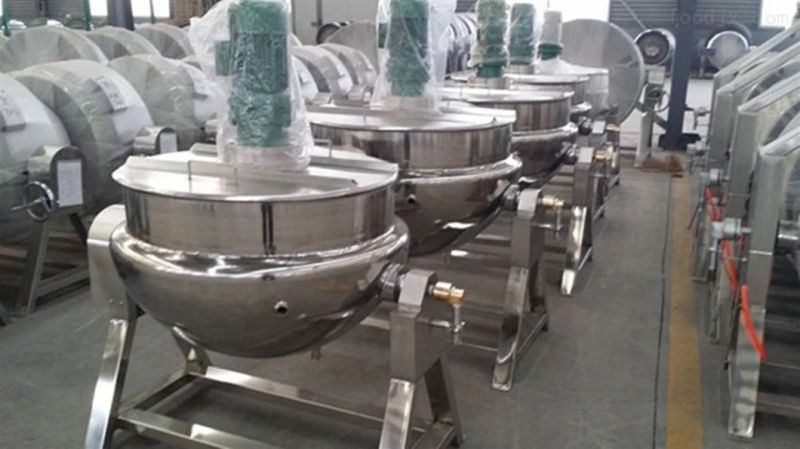

300litre Industrial Jacketed Electric Cooking Pot
