• Model NO.：WY-800
• Capacity：200L-5000L
• Material：Stainless Steel 304 , 316
• Tank Structure：Tri-Wall , 3 Layer
• Isolation Material：Poly Urethane Foma , Rock Wool
• Way of Discharge：Drainage From Side , Bottom
• Tank Top：with Hinged Lid , Manhoe
• Transport Package：Wooden Case
• Origin：Wenzhou China

Basic Info.

Model NO. WY-800 Capacity 200L-5000L Material Stainless Steel 304 / 316 Tank Structure Tri-Wall / 3 Layer Isolation Material Poly Urethane Foma / Rock Wool Way of Discharge Drainage From Side / Bottom Tank Top with Hinged Lid / Manhoe Transport Package Wooden Case Origin Wenzhou China

Product Description

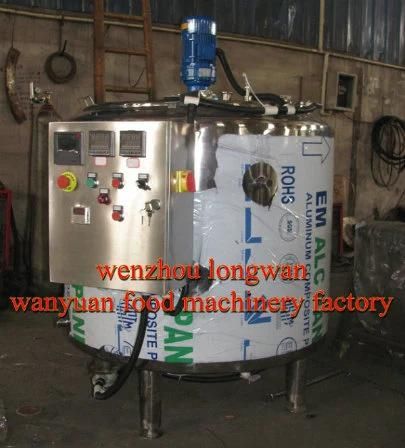

200 Gallon Full-Automatic Pasteurizing Cheese Vat
This is a cheese vat pasteurizer, geared toward artisan cheese-makers or those who wish to make efficient test batches, it allows for pasteurization and cheese making to happen in one tank. Available in 50-2000 gallon.

Batch pasteurizers sometimes referred to as Vat Pasteurizers, Pasteurization Machines or Processors are insulated, jacketed tanks. When used with a boiler & chilling system Pasteurization Vats can heat and cool almost any food, dairy, beverage or chemical products. The most common use for batch pasteurizers is in the dairy industry for milk pasteurization. Batch Pasteurizer comes in standard and custom sizes from 50 to 2000 gallons. The Combo Vat is designed for the small cheese maker; It allows for milk pasteurization and cheese making in one vat.

We also have HTST Systems for Flash Pasteurization and used batch pasteurizer for sale. New or used, wanyuan has pasteurization equipment to meet your needs. To learn more about pasteurizing tank options, fill out an online quote or calling an Equipment Consultant.

This pasteurizer is customized according to the customer's requirement, when tear the protective film it will looks very beautiful.

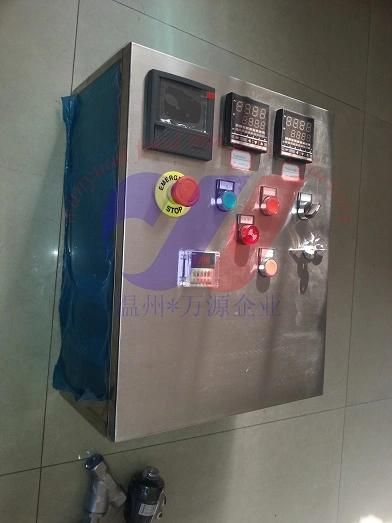

Operation panel function: material temperature, heating temperature, pasteurization time, paperless recorder etc..

Wenzhou wanyuan food machinery factory- - Batch pasteurizer/pasteurization tank

Here below is batch pasteurizer(pasteurization tank) specifications:

Cooling and heating tank with scraper agitator or with paddle mixer

Effective  Volumn(L)	Dimension of  Tank(mm*mm)	Total Height (mm)	Diamension  of inlet&outlet (mm)	Heat   preservation  layer(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1220	2550	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60
