• Material：Stainless Steel
• Electric Parts：LG ,FUJI,Omron etc
• Stainless Steel Material：304
• Controlling：Inverter
• Capacity：10-15kg,H
• Function：Laboratory
• Size：1.8*0.8*1.6m
• Inverter：Delta Brand
• Voltages：220V,50Hz 380V,50Hz
• Transport Package：Woodencase
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：84349000
• Production Capacity：10-15kg,H

Basic Info.

Material Stainless Steel Electric Parts LG ,FUJI,Omron etc Stainless Steel Material 304 Controlling Inverter Capacity 10-15kg/H Function Laboratory Size 1.8*0.8*1.6m Inverter Delta Brand Voltages 220V/50Hz 380V/50Hz Transport Package Woodencase Trademark Jinan Datong Machinery Company Origin Jinan HS Code 84349000 Production Capacity 10-15kg/H

Product Description

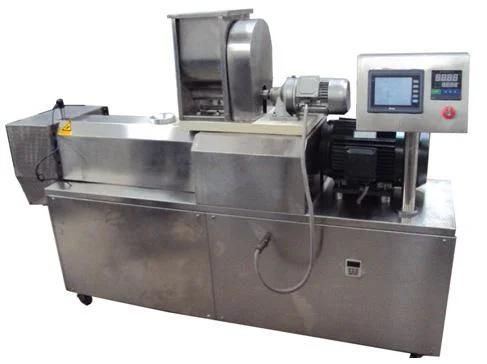

 The brief description of New technical lab twin screw extruder:
1.The examination double-screw extruder is an omnipotence type extruder specially for
the college, scThe examination double-screw extruder is an omnipotence type extruder specially for the college, scientific research organization and large-medium enterprises taking on all kinds of extrusion, slaking and denaturation research. It can carry on all kinds of examinations for the following materials, such as corn, potato starch, protein, chemical material plastic and rubber. Meanwhile, it has the following features of powerful functions, easy operation, simple adjustable parameter and precise data. It is very easy to maintain and repair.

Name:	Parameters	Name:	parameters
Engine power	4-5.5KW	Feeding speed control	Inverter speed-control
Engine speed-control	Inverter speed-control	Heating way	Electric heating band
Screw diameter	∮30mm	Cooling way	Water cooling
Screw central distance	26mm	Temperature scope	20ºC-300ºC
Screw Speed range	0-500rpm	Temperature precision	±1.0ºC
Screw mode	Building block-combined type	Temperature measuring	4 points
First series L/D	11.6         12.7       23	Output	5-10KG/H
Material of screw	38CrMoAl Nitriding	Material of cover	Mirror finishing S.S.304
Pressure scope	0-30MPa	Control system	PLC, Touch screen
Pressure precision	0.1MPa	Motor Brand	Siemens
Cutting speed control	Inverter speed-control	Inverter Brand	Delta

Feature of lab twin screw extruder
1.Monopoly design, the first mini-type multifunction twin-screw inflating machine in China.
2.Widely used, according to different material and product character, use many screws/machine barrels of different length combination, fit for various material experiments.
3. Special distributor case and bearing, to improve the extruder performance.
4.  Multipoint temperatuer control and pressure measure point.
5.Advanced touching screen, HML and help system, display a lot of real time parameters and record working status of each equipment and print the numbers out.
