• Model NO.：KQ Series
• Voltage：All
• Customized：Customized
• Function：304 316 Stainless Steel Jacket Insulated Jelly Fr
• Material：SS304,SS316,SS316L
• Agitator Speed：36rpm, 48rpm, 960rpm 2900rpm
• Process：for Heating and Mixing Liquid, Liquid and Powder
• Name：Jacketed Tank Price
• Size：50L to 10000L
• Heating：Electric ,Steam,Gas
• Wall：Double ,Jacketed
• Certificate：CE & ISO
• Orign：Shanghai China
• Delivery：10-15 Days After Get Your Advance Payment
• Motor Brand：Siemens ,ABB ,China Brand
• MOQ：1set
• Spare Parts：Available
• Cleaning：CIP Cleaning Ball
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. KQ Series Voltage All Customized Customized Function 304 316 Stainless Steel Jacket Insulated Jelly Fr Material SS304,SS316,SS316L Agitator Speed 36rpm, 48rpm, 960rpm 2900rpm Process for Heating and Mixing Liquid, Liquid and Powder Name Jacketed Tank Price Size 50L to 10000L Heating Electric /Steam/Gas Wall Double /Jacketed Certificate CE & ISO Orign Shanghai China Delivery 10-15 Days After Get Your Advance Payment Motor Brand Siemens /ABB /China Brand MOQ 1set Spare Parts Available Cleaning CIP Cleaning Ball Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

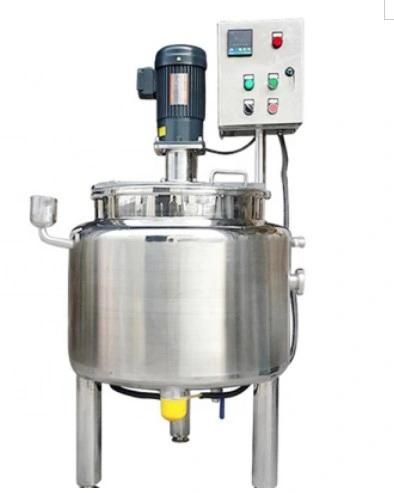

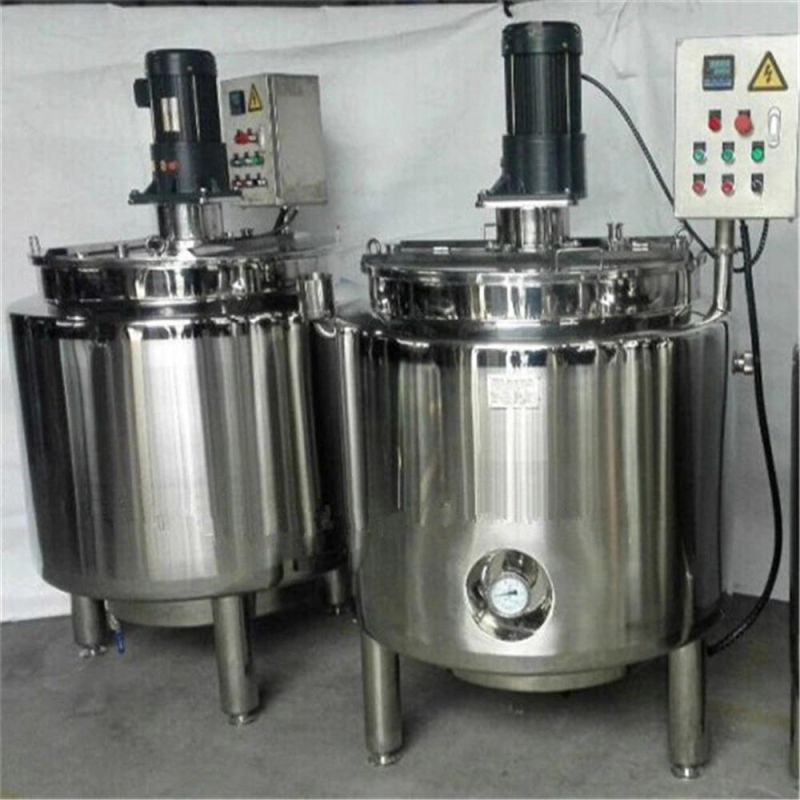

304 316 Stainless Steel Jacket Insulated Jelly Fruit Juice Mixing Tank Price
Three-layered cooling and heating tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.


Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50MM
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor

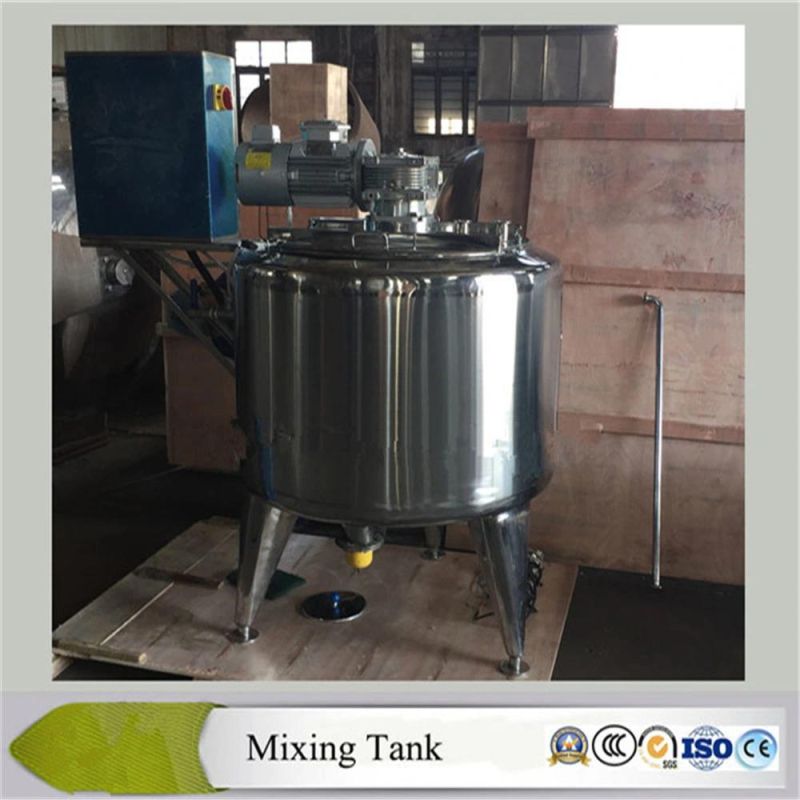

Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution

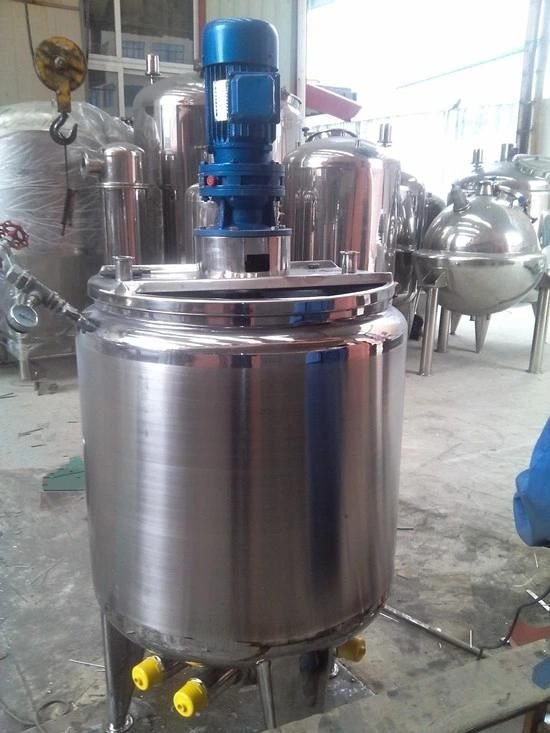

Steam heating chemical agitator tank blending tank
PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer

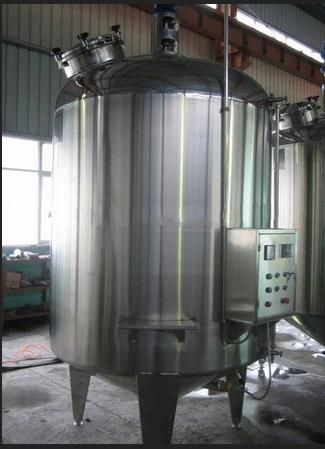

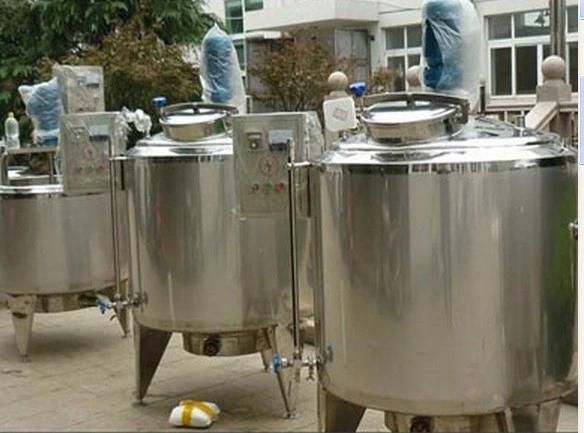

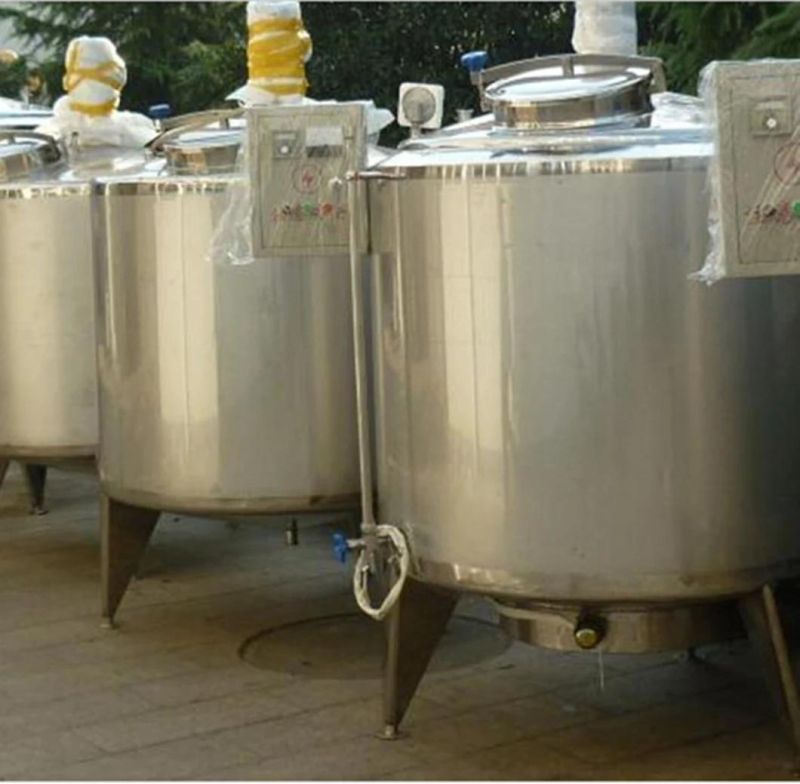

 Double wall steam heating tank

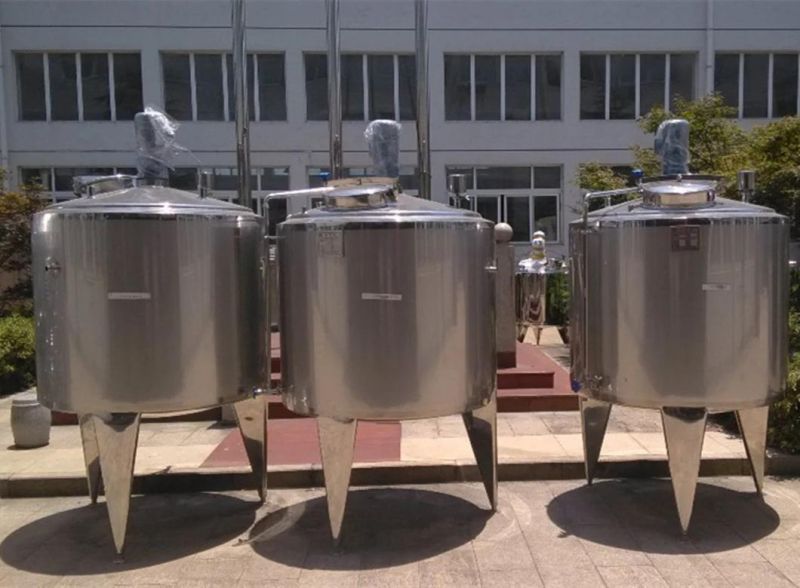

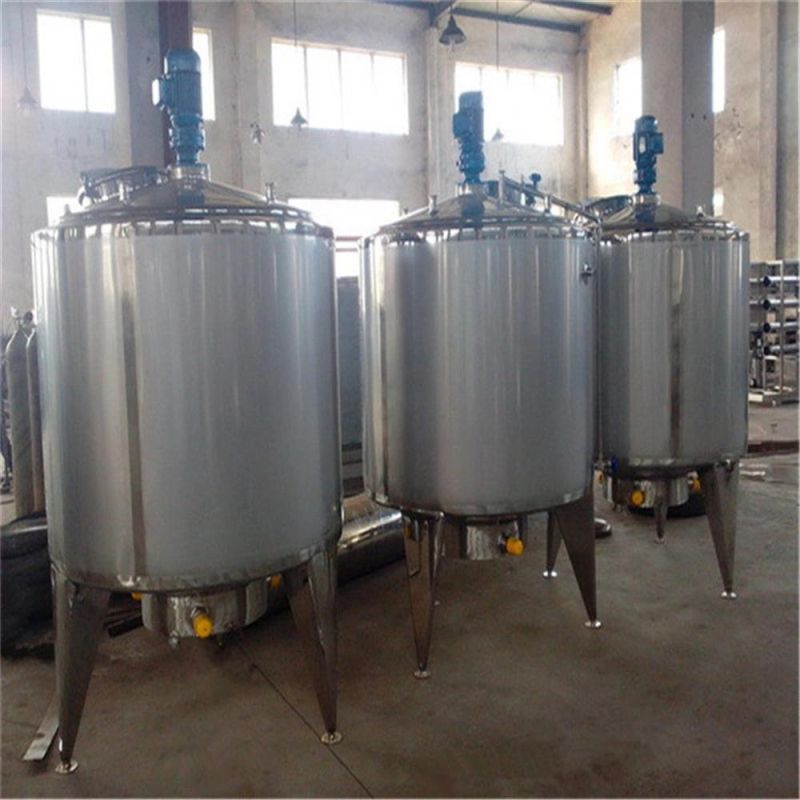

 We can supplies single-layer, dual-layer, and three-layer stainless tanks with or with out agitation to blend product.

1

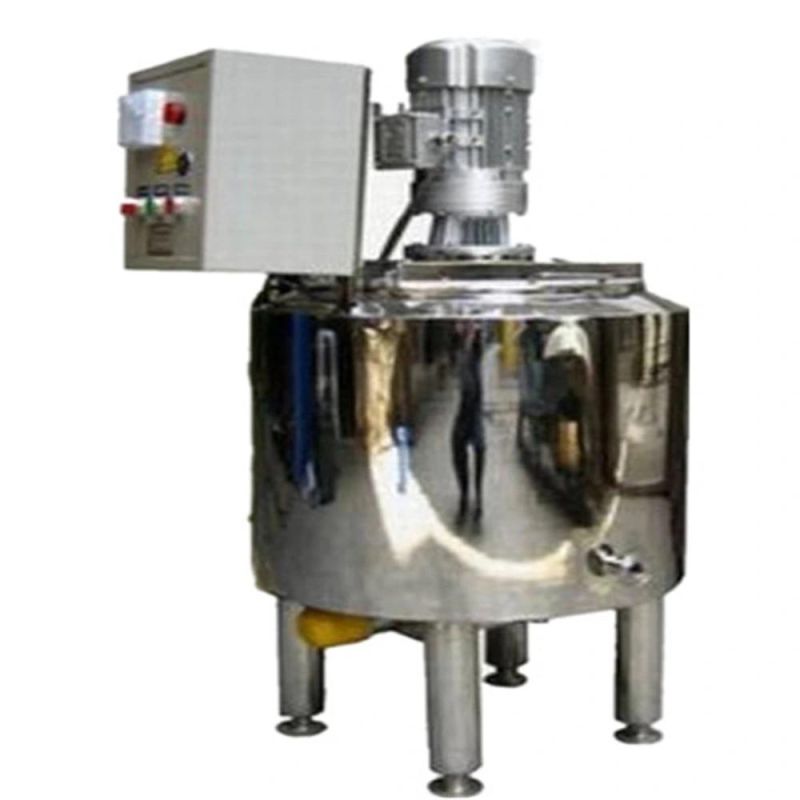

sugar mixing tank

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
OEM is welcome too.

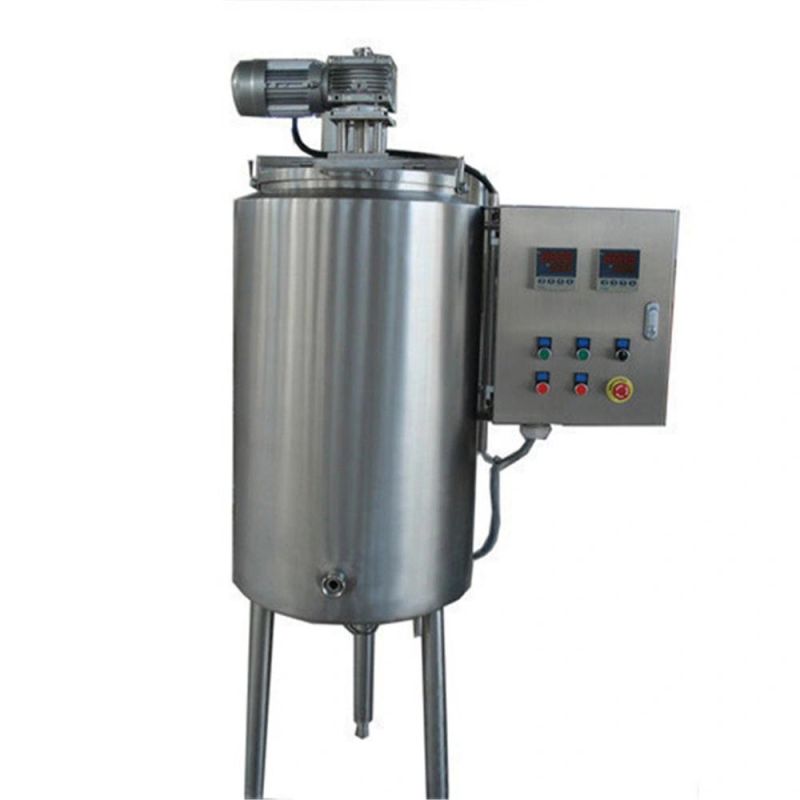

Electric Heating Tank Gas Heating Tank Jacketed Tank


304 316 Stainless Steel Jacket Insulated Jelly Fruit Juice Mixing Tank Price .
